How to Invest in Digital Label Printing
Introduction
Before investing in the many digital presses currently on the market, label converters must conduct thorough research into the digital printing industry. By focusing on the mainstream technologies available in 2026, label converters and packaging printers can understand the performance of various printing methods, front-end systems, and resolutions. This knowledge allows for the creation of a customized investment plan for color digital printing equipment.
I.Key Considerations for Digital Label Printing Investment
Before investing in digital label production technology, there are several critical decision-making factors to evaluate. These include:
Printing Process: Which digital printing technology do you intend to invest in?
Dimensions: What roll size or printing width is required for your operations?
Total Cost of Ownership: Are there additional post-installation costs to consider?
To assist with these decisions, we have developed an evaluation checklist covering these common questions.
Investment Evaluation Matrix
This table outlines the critical dimensions label converters must evaluate before finalizing a digital press acquisition.
|
Decision Dimension |
Key Consideration |
Strategic Focus |
|
1. Core Technology |
Which digital printing process will you adopt? |
Choose between Liquid Toner (ElectroInk), UV Inkjet, Dry Toner, or Water-based Inkjet. |
|
2. Print Resolution |
What is the optimal resolution for your clients? |
Balance end-user visual quality requirements against overall production costs. |
|
3. Web Width |
What roll or printing width is required? |
Ensure compatibility with existing conventional presses, especially for shrink sleeve production. |
|
4. Surface Treatment |
Do substrates require coating or priming? |
Determine if full-line pre-treatment or material-specific priming is necessary. |
|
5. Material Compatibility |
Are current materials incompatible with specific technologies? |
Verify compatibility between substrates and printing, finishing, or laser die-cutting units. |
|
6. Color Gamut |
How many color stations do you need? |
Options include CMYK, CMYK White, CMYK OGV White, or Extended Color Gamut (ECG). |
|
7. White Ink Requirements |
Does the job require a white ink layer? |
Essential for printing on transparent or metallized substrates. |
|
8. Production Efficiency |
Is print speed/throughput a primary KPI? |
Evaluate if production capacity meets the lead times required by your target market. |
|
9. Cost of Ownership |
Are there hidden operational expenses? |
Calculate Click Charges, service fees, and consumable costs like printhead replacements. |
II.Processing Configurations (Continued)
-
Inline
Inline processing significantly boosts productivity by completing printing and finishing (such as die-cutting and slitting) in a single pass on the same machine. However, this efficiency must be balanced against the potential for increased material waste. Many converters avoid inline setups for complex jobs that require high-precision registration or multiple sorting stages.
-
Offline
Currently, 70% of digital printing jobs in the market continue to use offline processing. Most converters believe that offline setups offer the maximum flexibility required for the diverse types of digital post-press finishing. Because the press and the finishing machine operate independently at their respective maximum rated speeds, material waste per process remains low.
-
Near-line
Near-line processing involves equipment that is physically separate from the press but remains highly integrated within the workflow or located in close proximity.
Logistics: Machines are generally not connected by a physical web path; materials are transported over short distances manually or via Automated Guided Vehicles (AGVs).
Benefits: It combines the flexibility of offline processing (ensuring the press is not slowed down by finishing) with the high efficiency of inline systems (through data synchronization and rapid turnover).
The Strategic Choice: For digital label enterprises, near-line processing is often the optimal solution for balancing small-batch, multi-variety production.
Investment Tip: If you are considering digital printing technology, you must decide on your processing configuration—Inline, Near-line, or Offline—from the very beginning. Conduct a thorough investigation of your customers' requirements, target markets, and the complexity of your typical print jobs to select the finishing line that fits your needs.
III. Prepress Strategies for Digital Labels and Packaging
Prepress is the most critical element for achieving the rapid turnaround times promised by digital printing. Superior technical support allows the press to reach its full performance potential. Without an appropriately matched prepress workflow, you will likely face significant operational challenges downstream.
|
Strategic Priority |
Key Objectives & Value Drivers |
|
Brand Asset Protection |
Ensure accurate simulation and consistency of brand-specific spot colors. |
|
Print Communication |
Reduce the volume of physical proofs and minimize press standby time. |
|
Prepress Automation |
Shorten lead times while simultaneously improving overall print quality. |
|
Color Management |
Enable "Late-Stage Versioning" (Delaying final color decisions until the point of print). |
|
Process Decision-Making |
Determine the most cost-effective method: Traditional vs. Digital for each specific job. |
|
Waste Reduction |
Standardize processes to eliminate the need for on-press sampling and error correction. |
|
Business Expansion |
Broaden the scope of value-added services offered to clients. |
|
Digital Finishing |
Transition to die-less (tool-free) finishing and processing. |
|
Maximize Press Uptime |
Increase the number of jobs printed per day by reducing machine setup and calibration time. |
|
Print Quality Control |
Implement 100% Inline Inspection systems for real-time quality monitoring. |
IV.Market Alignment for Post-Press Finishing Technologies
Post-press finishing is just as vital as the printing process itself. How you configure your digital finishing equipment depends entirely on the specific industry sectors you serve. In 2026, the mainstream markets for digital printing remain focused on food, wine and spirits, beverages, cosmetics, health and beauty, and pharmaceuticals.
With the growth of inkjet technology and hybrid presses in recent years, the end-user market for digital printing and finishing has expanded significantly. It now extends into sectors such as industrial products, horticulture, nutraceuticals, multi-layer labels, and back-printed labels.
Industry-Specific Finishing Requirements
Food Industry: Generally straightforward. A standard configuration typically includes flexo units, cold foiling, varnishing, and semi-rotary die-cutting.
Wine, Spirits, and Beverages: This sector is highly competitive, with digital and traditional presses vying for market share due to the demand for premium branding. Many manufacturers utilize hot foil stamping (typically flatbed or semi-rotary), embossing, cold foiling, or metallic ink printing.
Cosmetics, Health, and Beauty: Similar to the wine industry, labeling in this sector is becoming increasingly complex. Digital finishing lines are often equipped with multiple add-ons, including hot/cold foiling, metallic inks, and embossing to create a luxury feel.
Pharmaceuticals: In this sector, converters often add screen printing units or flexo stations to their digital finishing lines.
When required, digital Braille recognition systems can be integrated to digitally record and verify every tactile Braille character.
|
Target Industry |
Core Finishing Requirements |
Recommended Equipment Configuration |
Value Proposition |
|
Food |
Basic protection & high-speed die-cutting |
Flexo coating, Cold Foil, Varnishing, Semi-rotary/Full-rotary Die-cutting |
Balances production efficiency with cost; ideal for high-volume, standard labels. |
|
Wine & Beverage |
Premium tactile effects & anti-counterfeiting |
Flatbed/Rotary Hot Stamping, Embossing, Metallic Ink Printing |
Enhances brand premium and supports complex textures that rival traditional printing. |
|
Cosmetics & Beauty |
High-end aesthetics & multi-process layers |
Multi-functional hybrid lines: Hot/Cold Foiling, Screen Printing, Embossing, Lamination |
Focuses on process compatibility to meet personalized and high-aesthetic designs. |
|
Pharma & Health |
Regulatory compliance & functional features |
Screen Printing, Digital Braille Systems, High-speed Inspection Machines |
Prioritizes safety and precision; supports digital production traceability. |
|
Industrial & Multi-layer |
Complex structures & high durability |
Hybrid presses, Back-print units, Multi-layer laminating devices, Precision Slitting |
Showcases technical customization for solving pain points in specialized applications. |
Summary
This guide emphasizes that as a label converter, you must establish a clear market or marketing strategy before deciding to purchase digital printing and finishing equipment—or introducing a hybrid production line—to enter the digital label market. You need to define several key factors:
Market Positioning: Which industry sectors do you currently serve, and which ones do you intend to enter or target?
Volume Thresholds: What is the minimum order quantity (MOQ) your current conventional presses can profitably handle, and what are the target order volumes you aim to achieve with a new digital press?
Competitive Edge: What specific sales and marketing advantages do you want to possess as a converter?
If you are asking yourself, "Should I buy a digital press?" you should first consider:
What is my intended application for this technology?
Will it allow me to serve my customers more effectively?
Will this digital investment generate a sustainable profit?
Learn More About
Offset vs. Flexo Printing
In the modern label printing industry, offset and flexographic printing are two widely used mainstream printing methods. Each brings its own unique technical characteristics and application advantages, playing crucial roles in different production scenarios. This article will systematically compare these two printing technologies from various angles, including printing principles, technical strengths, application limitations, cost structures, and selection recommendations - to provide professional guidance for label printing and converting businesses like yours when choosing a suitable process. 1. Differences in Printing Principles and Technical Characteristics Offset Printing uses an indirect printing principle, transferring images and text from the printing plate to a rubber blanket cylinder before applying them to the substrate. Its key features include: • Ink-Water Balance System: Relies on precise control of the ink-water balance, leveraging the immiscibility of oil and water to transfer graphics and text. • Fine Dot Reproduction: Utilizes amplitude-modulated or frequency-modulated dots, achieving a printing resolution of 200–350 dpi. • Dependence on UV Curing: In label printing, UV curing systems are often required to ensure ink adhesion on non-absorbent materials. Flexo Printing, on the other hand, employs a direct relief printing method: • Anilox Roller Ink Transfer System: Uses engraved anilox rollers to precisely control ink transfer, ensuring consistent ink layer thickness. • Wide Printing Adaptability: Supports various ink systems, including water-based, solvent-based, and UV inks, offering flexible curing options. • Strong Material Compatibility: Particularly well-suited for handling non-absorbent materials like films and self-adhesive substrates. 2. Quality Performance and Process Advantages Three Main Advantages of Offset Printing 1. Superior Print Quality Offset printing has a natural advantage in reproducing fine details. Its dot density can reach 200–350 dots per inch, far exceeding the 170–180 dpi limit of flexo printing. This high precision makes it stand out in the following scenarios: • Smooth gradient transitions with no noticeable banding • Crisp edges on small text (below 4 pt) • Accurate spot color reproduction with high hue stability • Dot loss in highlight areas below 2% 2. Significant Initial Cost Advantages At the start of a new project, offset printing demonstrates clear economic benefits: • Lower Plate Costs: A set of four-color PS plates costs only 1/4 to 1/2 of flexographic resin plates. • Higher Plate-Making Efficiency: The CTP plate-making process takes just 8–12 minutes, compared to 60–90 minutes for flexographic plates. • Faster Job Changeovers: Standard job changeovers can be completed within 15 minutes, improving equipment utilization. 3. Higher Operational Tolerance Offset printing offers relatively stable performance characteristics: • The ink-water balance system has self-adjusting capabilities. • Dot gain is kept within standard ranges (typically 12–18%). • Even with less experienced operators, basic print quality can be maintained. Differentiated Advantages of Flexographic Printing 1. Wide Material Adaptability Flexographic printing excels in handling special materials: • Wide printable thickness range (0.012–0.5 mm) • Compatible with various film materials like PE, PP, PET, and BOPP • Supports special substrates such as metal foils, synthetic paper, and specialty papers 2. Potential for Higher Production Efficiency In specific applications, flexographic printing offers unique advantages: • Strong inline processing capabilities, integrating processes like foiling, laminating, die-cutting, slitting and sheeting. • Printing speeds of 150–300 meters per minute. • Suitable for long-run jobs, with operational costs decreasing as volume increases. 3. Superior Environmental Performance Modern flexographic technology aligns with green printing trends: • Lower VOC emissions from water-based inks compared to offset inks • Higher usage of biodegradable materials • Relatively lower energy consumption, meeting sustainability requirements 3. In-Depth Analysis of Cost Structures Equipment Investment Comparison The complex structure of offset presses leads to higher initial investment: • Inking System: Requires a precise ink transfer system with 12–20 ink rollers. • Dampening System: Equipped with automatic alcohol concentration control. • Registration System: Demands extremely high mechanical machining precision. • Overall, offset equipment is 30–40% more expensive than similarly configured flexographic printing equipment. Operational Cost Differences Consumable Costs: • Offset: PS plates cost ¥80–120 per square meter (this is roughly number, every year it will be change), with higher dampening solution consumption. • Flexo: Resin plates cost ¥200–350 per square meter (this is roughly number, depends on types, thickness and quality), and anilox rollers require periodic replacement. Energy Consumption Comparison: • Offset: UV curing systems consume more energy, using 15–25 kW per hour. • Flexo: Hot air-drying systems are relatively more energy-efficient, using 8–15 kW per hour. Labor Cost Considerations: • Offset: Requires experienced press operators with 6–12 months of training. • Flexo: Operators have shorter training cycles, typically becoming proficient in 3–6 months. 4. Recommendations for Application Scenarios Scenarios Favoring Offset Printing 1. High-Quality Commercial Labels: Cosmetics, luxury labels, and others requiring high-precision printing. 2. Short-Run Variable Data: Promotional labels or seasonal product labels requiring frequent plate changes. 3. Paper-Based Materials: Primarily using absorbent materials like coated paper or specialty paper. 4. Budget-Constrained Projects: Limited initial investment but with certain quality requirements. Scenarios Favoring Flexographic Printing 1. Film-Based Labels: Food packaging, daily chemical product labels, and others using film materials extensively. 2. Long-Run Production Tasks: Routine label production with volumes exceeding 100,000 meters. 3. Special Process Requirements: Situations needing inline processing or special ink applications. 4. Strict Environmental Requirements: Compliance with food-grade safety standards or environmental certifications. 5. Technological Trends and Integrated Innovations Today’s label printing technology is evolving toward integration: 1. Hybrid Printing Technology: Combines offset and flexographic units to balance fine details and large solid areas. 2. Digital Printing Integration: Incorporates digital inkjet units into traditional printing for variable data capabilities. 3. Intelligent Upgrades: Adoption of AI color management systems and IoT remote monitoring. 4. Green Transformation: Increased use of eco-friendly materials like vegetable oil-based inks and water-based coatings. 6. Key Factors for Decision-Making When choosing a printing process, your label business should consider: 1. Product Structure Analysis: The material types, design complexity, and quality requirements of your main label products. 2. Order Characteristics Evaluation: Average order volume, job changeover frequency, and delivery timelines. 3. Return on Investment Calculation: Comprehensive assessment of equipment depreciation, material costs, and labor expenses. 4. Technological Development Outlook: Evaluating upgrade potential and future business expansion needs. In Conclusion In the label printing industry, offset and flexographic printing each have their strengths, with no absolute winner. Offset printing holds a significant position in high-precision printing due to its superior print quality and lower startup costs. Meanwhile, flexographic printing offers unique advantages in packaging labels, thanks to its wide material adaptability and efficient production capabilities. A wise choice should be based on a thorough analysis of your own label business characteristics. If your work primarily involves paper-based materials, short runs, and high-quality requirements, offset printing may be the better fit. If it involves extensive use of film materials, long production runs, or special process needs, flexo printing will likely deliver greater value. As printing technology continues to develop, the boundaries between these two processes are gradually blurring, paving the way for more integrated and innovative solutions. Your business should stay technologically aware, flexibly adjust its technical approach based on market changes and customer needs, and find the optimal balance among quality, cost, and efficiency to gain a competitive edge in this dynamic label printing and converting market.
Kingsun Knowledge about Plastic Bags
Lots of plastic bags are made from polyethylene – more commonly known as polythene.The most common way to produce polythene bags is by blown film extrusion, also called the “tubular film process.”...

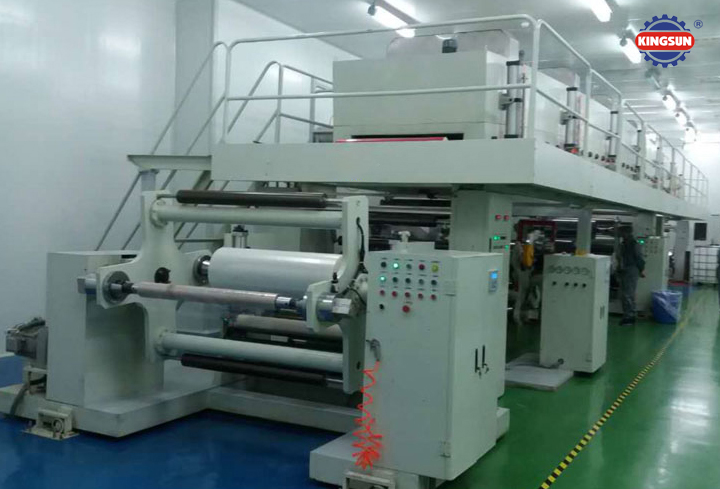

Coating and laminating machine technology
