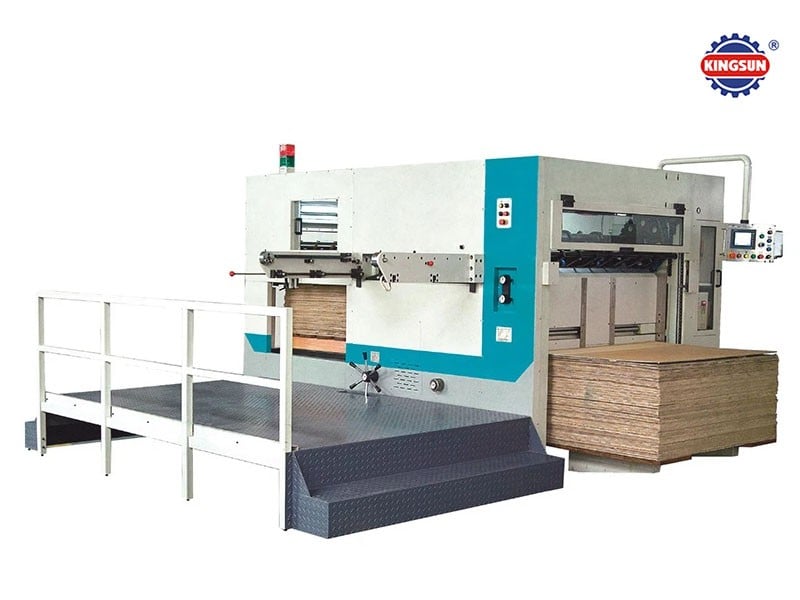

KYK-1500 semi-automatic die cutting machine

KYK-1500 semi-automatic die cutting machine

KYH-1450/1500 semi-automatic die cutting creasing machine is kind of special equipment applying to die-cutting of paper box. This series combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper.

KYH-1450/1500 semi-automatic die cutting and creasing machine

KYH-1450/1500 semi-automatic die cutting creasing machine is kind of special equipment applying to die-cutting of paper box. This series combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface. The interface can display various digital information of MI such as working speed, amount of paper processed, total running time, etc. It is easy to solve troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieve stepless speed variation. The machine has a lot of sensors and safe-ensuring devices to guarantee the safety to the operator and environment. Frontal and back pressure can be adjusted separately, it is convenient to stop the machine by hand, it can also realize die cutting without clipper margin.

Machine specifications:

Model

1450

1500

Max. paper size

1450X1060mm

1500X1100mm

Min. paper size

550X500mm

650X600mm

Max. die-cutting size

1445X1045mm

1495X1095mm

Paper type



Paper Board

200-2000g/m2

200-2000g/m2

Flute Board

8mm

8mm

Height of paper feeding pile

1400mm

1400mm

Height of delivery pile

1200mm

1200mm

Max. die-cutting speed

4000s/h

4000s/h

Max. die-cutting pressure

250N/cm2

250N/cm2

Power

13.5KW

13.5KW

Dimensions

4200X2300X2200mm(LXWXH)

4500X2300X2200mm (LXWXH)

Weight

16T

18T
