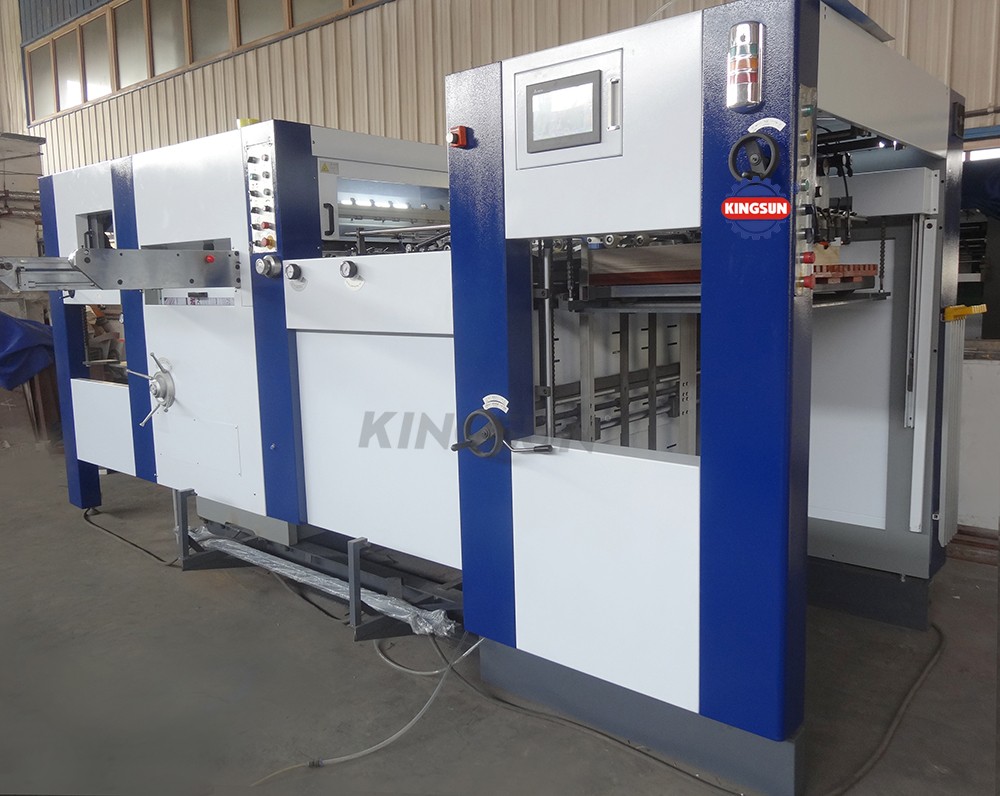

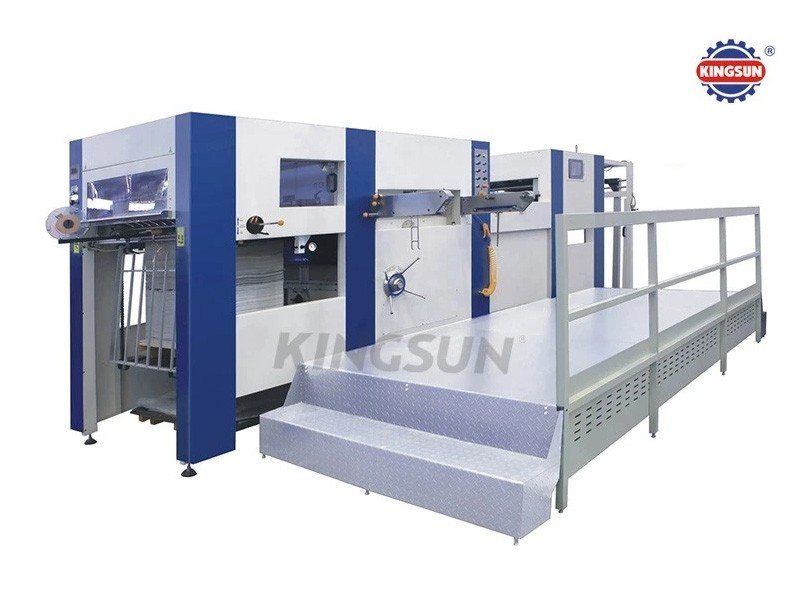

AD Series Flat Bed fully Automatic Die Cutting Machines

AD series fully automatic die cutting machine is our newly improved type of paper converting system to meet the demands of various end users. It adopts the latest technology of the similar types in the world. The perfect design enables a high stability at all parts of the cutters, which means the lowest cost in maintenance and highest working hours compare of the others same type .

AD series flat bed fully automatic die cutting and creasing machines

Introduction of AD series die cutting machine:

AD series fully automatic die cutting machine is our newly improved type of paper converting system to meet the demands of various end users. It adopts the latest technology of the similar types in the world. The perfect design enables a high stability at all parts of the cutters, which means the lowest cost in maintenance and highest working hours compare of the others same type . The specially designed flat bed ensures the perfect matches of the upper and lower bed even under the different pressure, and also makes the smooth conveying of the paper to meet the high requirements of the customers. The key spare parts are internationally renowned and the main structure parts are all well processed by high precision machining centers, which enable the die cutters to reach its maximum productivity and ensure the excellent performance.

This flat bed automatic die cutter machine is mainly used for the cutting & creasing of folding cartons and corrugated boxes etc.

Machine specifications:

Model

AD-1100E

AD-1080E

AD-1060E

AD-1020E

Max. paper size

1120X780

1080X780

1060X760mm

1020X720mm

Min. paper size

400X370

400X370

400X370mm

400X370mm

Max. die-cutting size

1110×770mm

1070X770

1050X750mm

1010X710mm

Paper type

Paper Board

120-2000g/m2

120-2000g/m2

120-2000g/m2

120-2000g/m2

Corrugated Board

≤5mm

≤5mm

≤5mm

≤5mm

Height of paper feeding pile

1500mm

1500mm

1500mm

1500mm

Height of delivery pile

1220mm

1220mm

1220mm

1220mm

Cutting precision

≤±0.10mm

≤±0.10mm

≤±0.10mm

≤±0.10mm

Min. paper clipper size

7mm

7mm

7mm

7mm

Max. machine speed

7200s/h

7200s/h

7200s/h

7200s/h

Max. die-cutting speed

6500s/h

6500s/h

6500s/h

6500s/h

Max. die-cutting pressure

300T

300T

300T

300T

Power

17.6KW

17.6KW

17.6KW

17.6KW

Dimensions(LXWXH)

7800×4000×2150mm

7650X3900X2150mm

6750X3900X2200mm

6500X3900X2150mm

Weight

17.5T

17T

16.5T

16T

 Note: Bigger size also welcome for tailer made.
