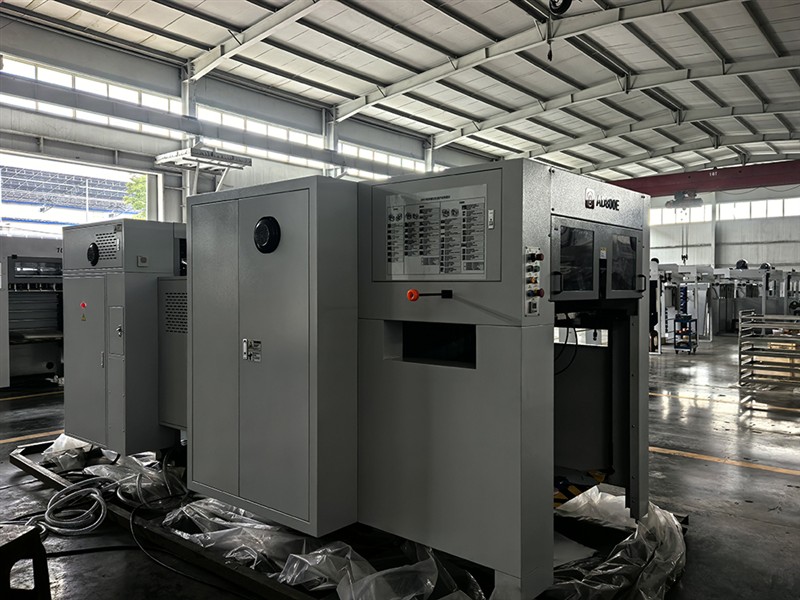

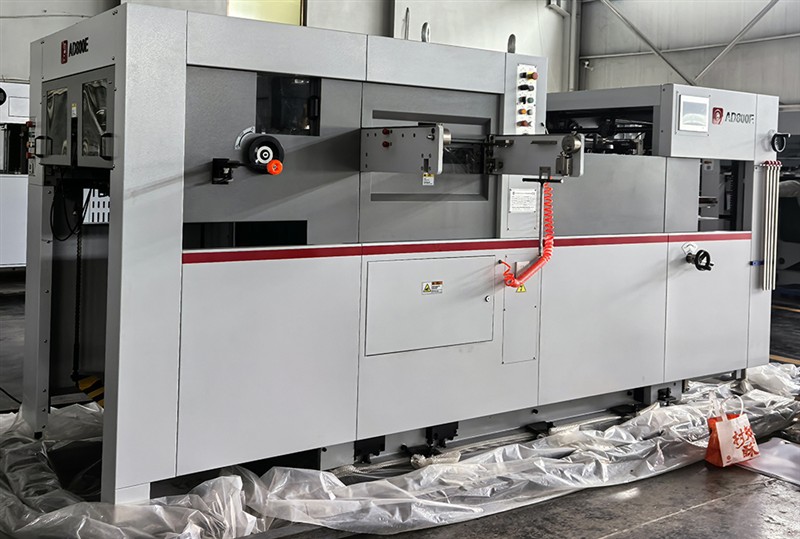

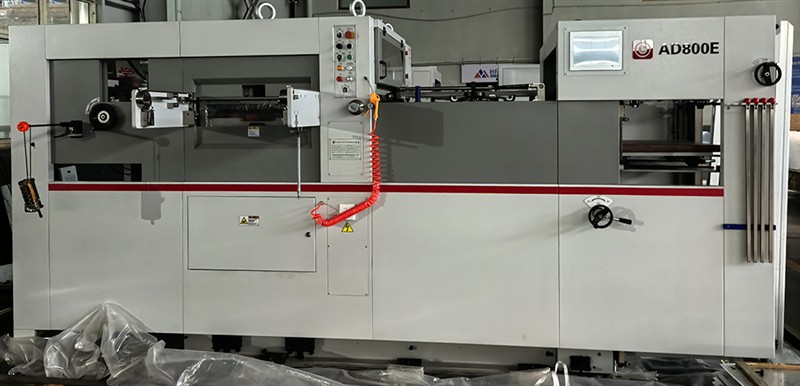

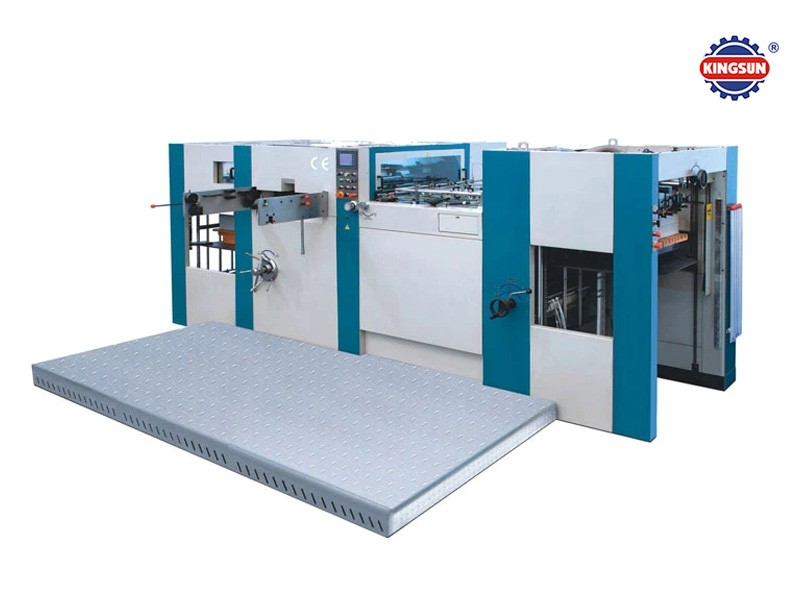

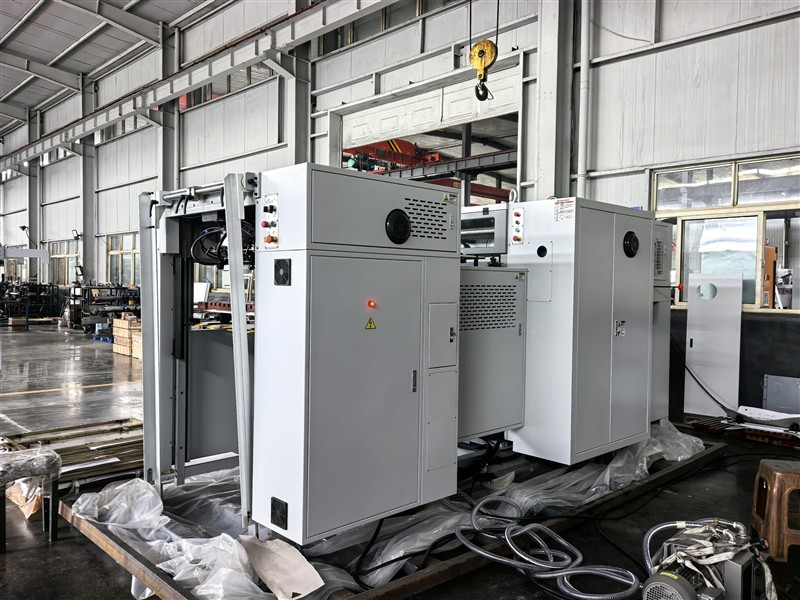

AD-720E/800E Flatbed Automatic Die Cutting and Creasing Machines ( Automatic die cutters)
This series automatic die cutting machines fit for cut cardboard and corrugated board to make paper boxes, with compact design and high quality components, perfect for small size paper sheet converting.
Main specifications:
|
Max feed paper size |
810x620mm |
|
Min feed paper size |
400x350mm |
|
Max die cutting size |
800x610mm |
|
Paper thickness |
Cardboard 0.12-2.0mm corrugated board<4 mm |
|
Feeding pile height |
1100mm |
|
Delivery pile height |
1000mm |
|
Die-cut precision |
≤±0.10mm |
|
Mix gripper |
7mm |
|
Max machine speed |
8000S/H |
|
Working speed |
5200-6500S/H |
|
Working pressure |
150T |
|
power |
14KW |
|
Overall dimensions |
4205×1500×1625mm |
Die-cutting system for packaging converting.
