KMHC-BL Series Corrugated Box Semi-automatic Die Cutter Machines

The KMHC series is Semi-automatic Lead edge feeding/Stripping/Creasing Die-cutting Machine., it can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality. The KMHC series Semi-automatic Lead edge feeding/Stripping/Creasing Die-cutting Machine are well equipped and almost can adapt to all die cutting requirements of products.

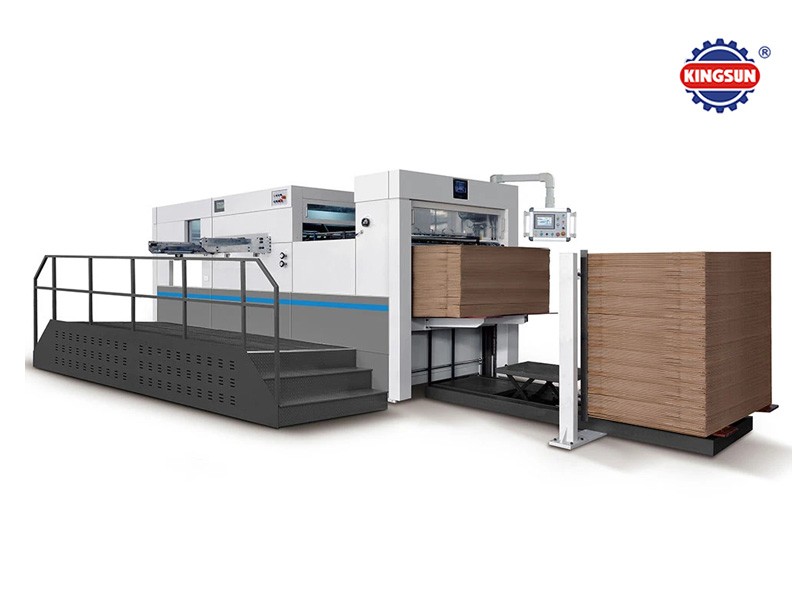

KMHC-BL Corrugated Box Semi-automatic Die Cutter Machines

The KMHC-BL series is Semi-automatic Lead edge feeding/Stripping/Creasing Die-cutting Machine., it can efficiently complete the die cutting and embossing of products, as well as maintaining the highest precision and product quality. The KMHC

series Semi-automatic Lead edge feeding/Stripping/Creasing Die-cutting Machine are well equipped and almost can adapt to all die cutting requirements of products, specially good for all kind of corrugated board.

Main features:

(1)Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
(2)Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately and reduce the occurrence of failure rate.
(3)The whole machine all uses SKF\NSK imported original bearing.
(4)The whole machine uses original parts imported from France Schneider, Japanese OMRON.
(5)Key parts of gripper bars are imported from Japan.
(6)The craft shaft is adopted Germany Ni-Cr-Mo metal steel, with high precision and will never deform.
(7)Use the centerline positioning system to realize fast plate changing of the worksheet.
(8)Equipped first-developed pressure servo control device, ensure fast and smooth adjusting of die cutting pressure.
(9)Equip with touch-screen operation interface in both Chinese and English.
(10)All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.
(11)Main motor from Siemens, to ensure stable operation.

Main specifications:

Model

KMHC-1100BL

KMHC-1300BL

KMHC-1500BL

KMHC-1650BL

Max. Paper size

1100*790mm

1290*940mm

1500*1100mm

1650*1210mm

Min.Paper size

400*350mm

550*480mm

550*480mm

650*550mm

Max.Die-cutting size

1070*770 mm

1280*930 mm

1490*1090mm

1620*1190mm

Max.Working speed

5000 sheets/hour

4000 sheets/hour

4000 sheets/hour

3200 sheets/hour

Paper Thickness

Cardboard 250g, corrugated 7mm

 Corrugated :1-7mm

Power

11 kw

13.5 kw

13.5 kw

19.7 kw

Max.Pressure

300Ton

300Ton

300Ton

300Ton

Machine Weight

14Ton

16Ton

18Ton

28Ton

Overall size

6700*4000*2300

7600*4400*2300

8000*4600*2300

8200*5000*2500
