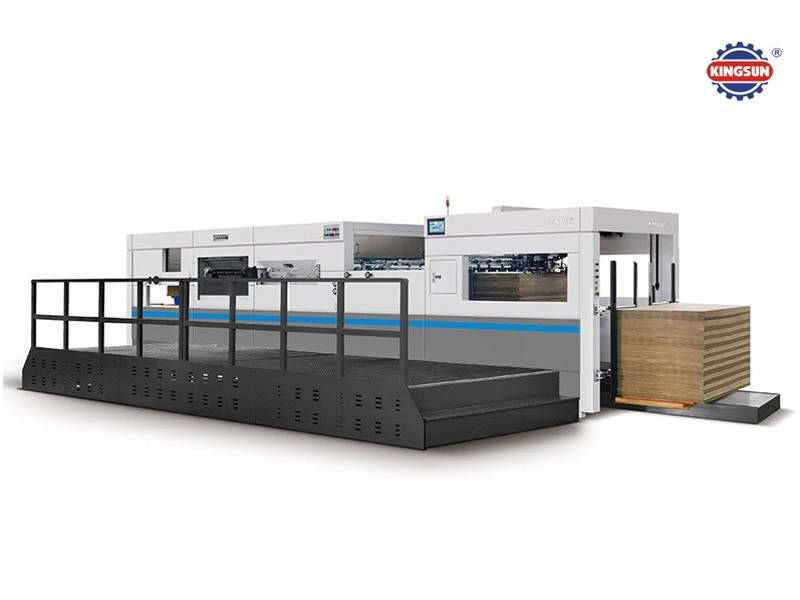

KMHC-1100EC Series Semi-automatic Die Cutting Machine with Stripping

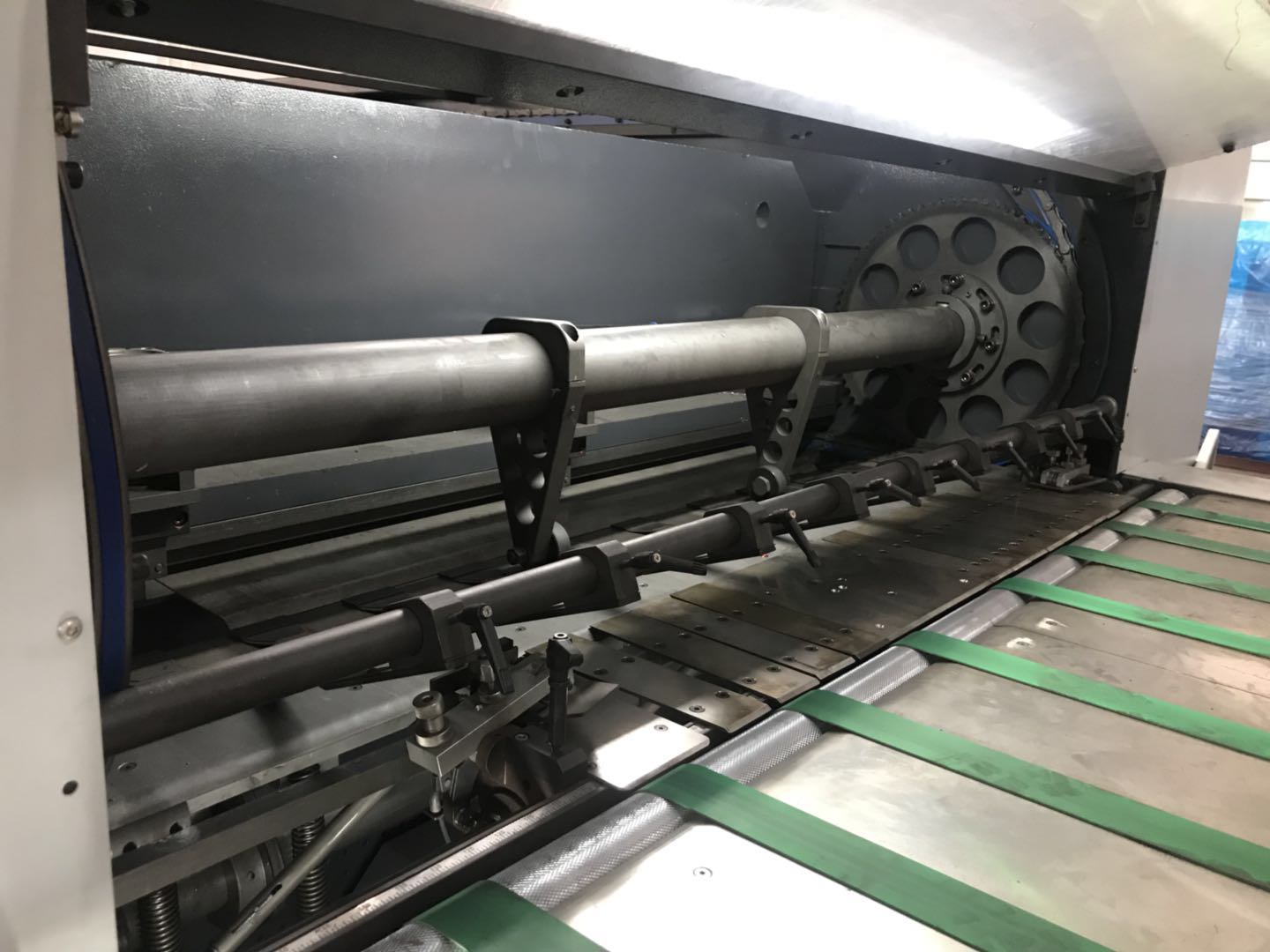

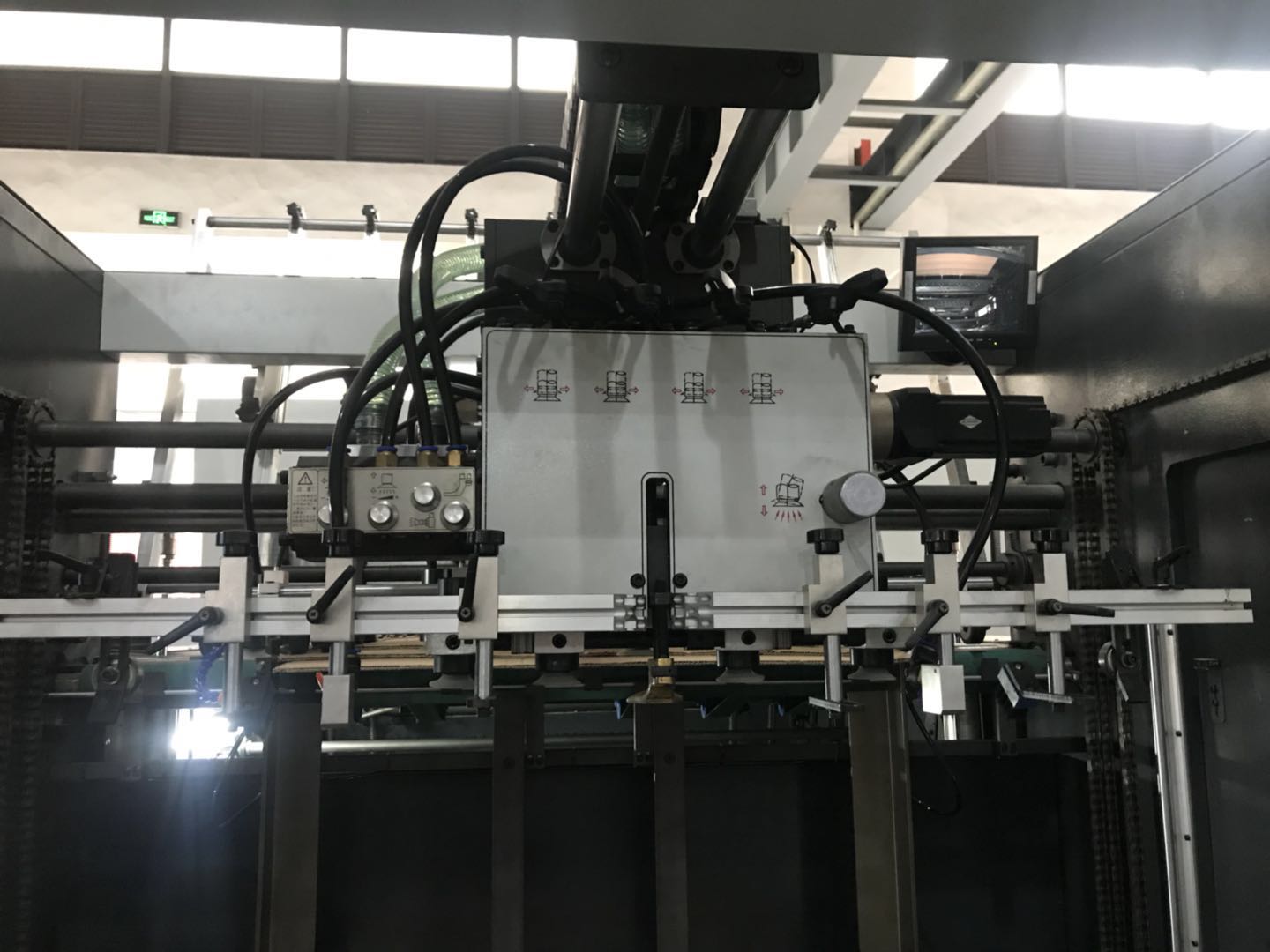

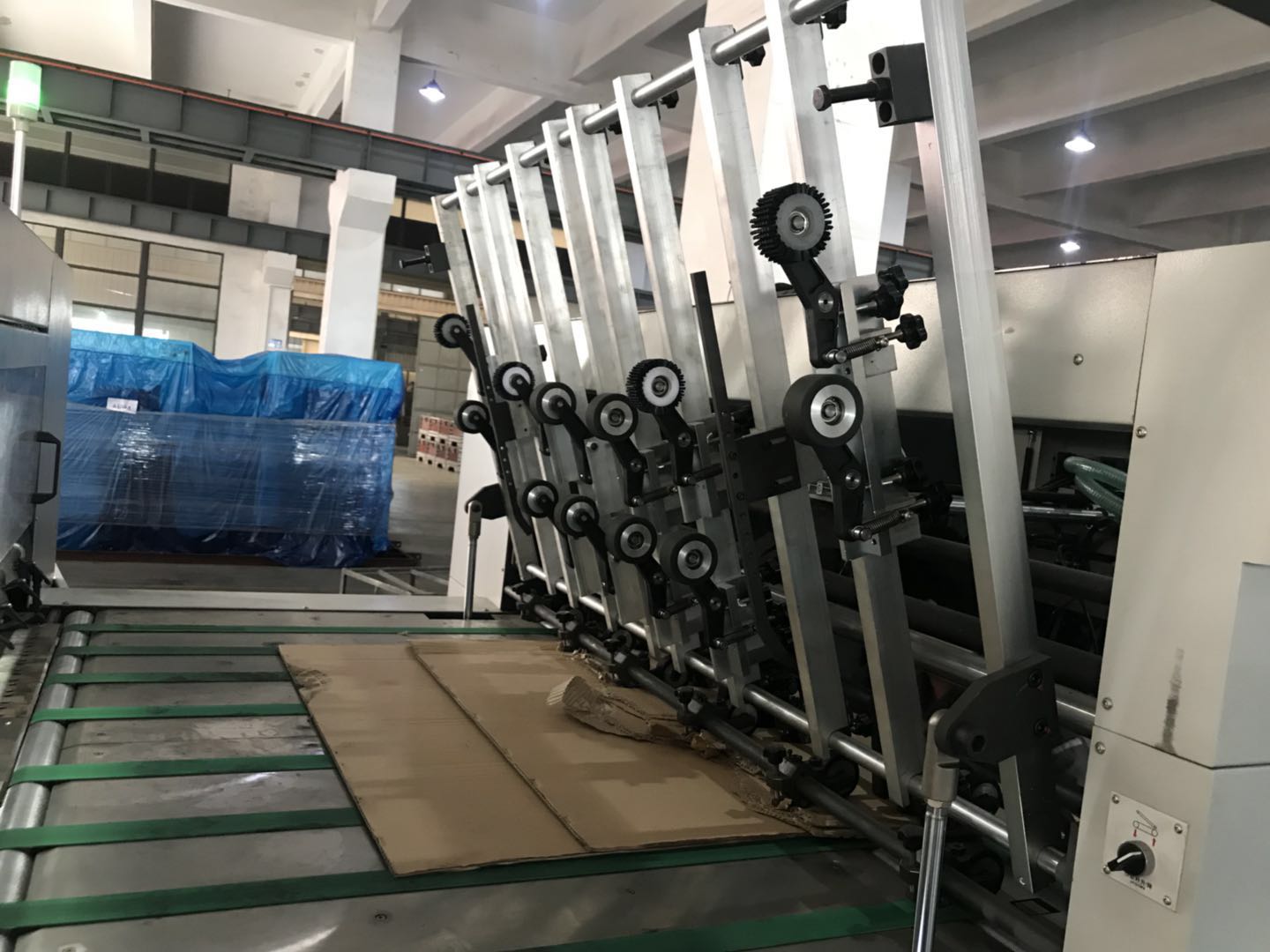

The fourth generation of KMHC Series Automated manual die cutting machine (Tiptronic Die Cutting Machine) based on the third generation of Semi-automatic Die Cutting Machine with Front Conveyor Delivery Mechanism, is equipped with an automatic feeder, including both manual paper feeding and automatic feeder paper feeding function. On condition of the flat corrugated paper, automatic feeder paper feeding is accepted with raising efficiency and reducing the workforce. Manual paper feeding comes in handy on condition of uneven corrugated paper. This machine maintains multi-operational function, and its development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity apply to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of troubleshooting. The transducer is adapted to control the main motor in achieving step-less speed variation. This machine is equipped with sensors and safety device.

Main features:

1Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

2Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately.

3The whole machine all uses SKF\NSK imported original bearing.

4The whole machine uses original parts imported from France Schneider, Japanese OMRON.

5Key parts of gripper bars are imported from Japan.

6The craft shaft is adopted Germany Ni-Cr-Mo metal steel, with high precision and will never deform.

7Use the centerline positioning system to realize fast plate changing of the worksheet.

8Equipped the first-developed pressure automatic adjustment device, ensure fast and smooth when they were adjusting of die cutting pressure.

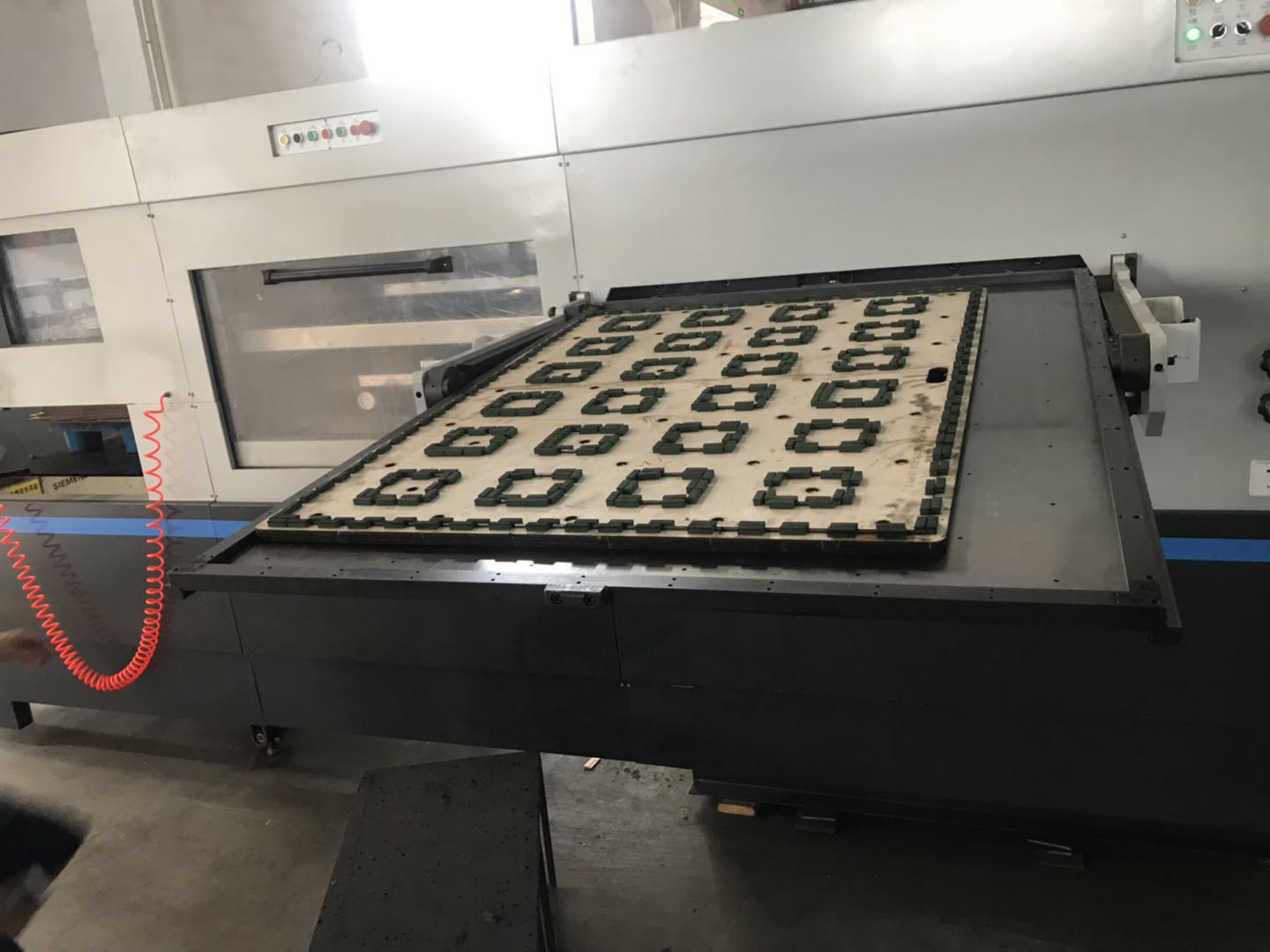

9 Die-cutting plate frame adopts auxiliary plate-installation device, to realize different model machines can use the universal die-cutting plate.

10Equip with touch-screen operation interface in both Chinese and English.

11All adopt Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

12The side gauge adopts the photoelectric system.

13Main motor from Germany Siemens, ensure stable operation.

14Vacuum pump from Germany Becker, ensure paper feeding smoothly.

Main specifications:

Model

KMHC-1100EC/E

KMHC-1300EC/E

KMHC-1500EC/E

KMHC-1650EC/E

Max. paper size(push gauge)

1100*790mm

1290*940mm

1500*1100mm

1650*1200mm

Max paper size(pull gauge)

1100*790mm

1230*940mm

1440*1100mm

1590*1200mm

Min paper size

400*350mm

550*480mm

550*480mm

650*550mm

Max die cutting size

1070*770mm

1280*930mm

1490*1090mm

1620*1190mm

Max. working speed

5500 s/h

4000 s/h

4000 s/h

3200 s/h

Rated power

11 KW

13.5 KW

13.5 KW

19.7 KW

Max working pressure

300T

300T

300T

300T

Machine weight

15T/14T

17T/16T

19T/18T

29T/28T

Overall dimension

8300*4000*2300mm

9000*4400*2300m

9500*4600*2300m

9800*5000*2500mm

Paper thickness

Cardboard250g

Corrugated7mm

Cardboard250g

Corrugated7mm

Corrugated 1-7mm

Corrugated 1-7mm
