Super Hard Die-Cutting Anvil Steel Board

Product Details

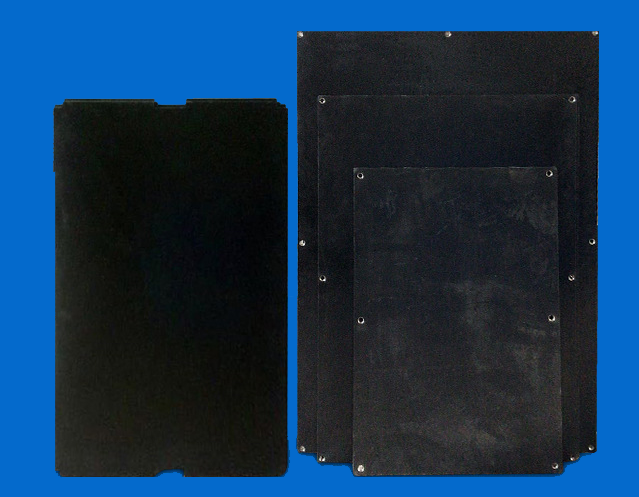

We offer all sizes of die cutting anvil steel board for automatic die cutting machine, it is special treated super hard steel board which is hardened and no damage after die cutting. The die cutting anvil board thickness from 1 to 7mm, we can make all sizes which fit for

your die cutting machine, all the board with high precision grinding machine process, the surface is flat and high precision. Just provide us the drawing as follows and tell us your quantity and thickness, we can make high quality cutting steel anivl board for you.

FAQs

F

What is an automatic die cutting machine?

It’s a high-efficiency industrial machine that automatically cuts, creases, and punches various sheet materials (like paperboard, corrugated board, or plastic) using custom-made steel-rule dies. It integrates feeding, positioning, cutting, stripping and stacking in one automated process, some special made model also equipped with heating plate for plastic materials etc. The size from small model such as 800 x 600mm to big model size 2100 x 1600mm, with various options.

F

What types of carton boxes can this automatic die cutting machine handle?

This automatic flatbed die-cutting machine is designed for folding cartons, rigid boxes, gift boxes, pharmaceutical packaging, food containers, and other paper-based packaging. It works well with materials ranging from 150gsm to 800gsm, including:

Coated paper
White cardboard
Duplex board with grey back
Corrugated board (single-wall, ≤5mm thickness)
Specialty papers (e.g., kraft, textured)
Plastic sheets
Custom made for other special materials

F

What optional features does this die cutting machine have?

We can customize functions according to customer needs, such as hot stamping, paper feeder method, paper stacker method, paper counting, stripping method etc.

F

What’s the difference between automatic and manual die cutting machines?

The fully automatic flatbed die-cutting machine efficiently processes materials with advanced technology, while the manual die-cutting machine relies on hand-feeding and is less efficient. The manual type also poses higher safety risks, especially for inexperienced operators.

Below is a comparison between the two types of machines:

Features	Automatic	Manual
Feeding	Auto feeder (pneumatic/vacuum)	Hand-fed
Delivery	Automatic stacker	Manual removal
Waste stripping	Inline stripping (optional)	Manual stripping
Speed	3,000–9,000 sheets/hour	500–1,500 sheets/hour
Labor	1 operator	2-3 workers
Precision	±0.1mm (with servo control)	±0.5mm
Safety	Fully guarded with safety sensors	Higher risk of injury

F

How should I choose the automatic die cutting machine model?

Please contact us to provide your maximum paper sheet size, material (cardboard or corrugated), and maximum thickness. We will recommend the most suitable model according to your requirements, Kingsun also can custom the machine to meet your unique needs.
