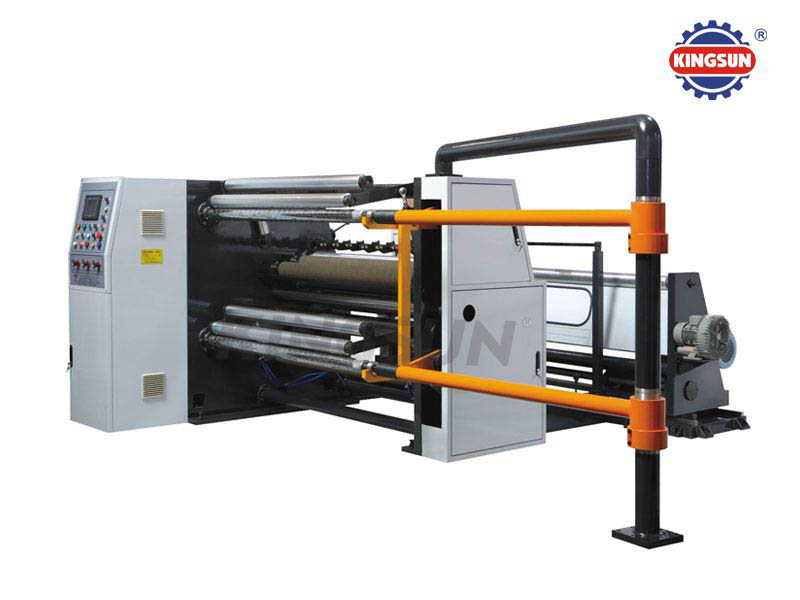

KSFQ-1300E High speed paper or plastic film slitter rewinders

This series high speed slitter rewinders applicable for slitting and rewinding various material, such as adhesive paper, labelstock, BOPP film, PET film, CPP film, PVC film etc. It is necessary converting equipment for printing and packaing industries.
Product Details
Feature  of Slitter Rewinders
Specifications
Online Inquiry
Video
Related Products

Product Details

KSFQ-1300E High speed slitter rewinders for paper or plastic film

This series high speed slitter rewinders applicable for slitting and rewinding various material, such as adhesive paper, labelstock, BOPP film, PET film, CPP film, PVC film etc. It is necessary converting equipment for printing and packaing industries.

Feature  of Slitter Rewinders

1.Imported PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen. Set and display working parameters according to requirements from different products

2.Vector frequency-inverter is adopted for rewinding, material roll diameter is automatically calculate by PLC to achieve automatic tension control

3.Vector frequency-inverter is adopted for unwinding, motor active unwinding, material roll diameter is automatically calculate by PLC to achieve automatic tension control

4.The independent unwind part use shaftless pneumatic insert system, convenience for loading and unloading the jumbo roll. Unwind with automatic web guide

5.Special slip pneumatic shaft for rewind, doctor knife and round blade changing system for slitting. This let the rewind rolls surface even and nice tension.

6.Rewind and unwind part can running two direction, go forward and back

7.PLC calculate the counting meter, roll diameter. Machine will stop when lack of material

8.This machine have perfect design and good safety protection

9.There are many different model such as 1100,1300,1500,1700mm available slitter rewinder.

Specifications

Model

KSFQ-1300E

Width of material

1300mm

Unwind diameter

1000mm

Slitting speed

30-300m/min

Rewind speed

30-300m/min

Rewind diameter

600mm

Slitting width

30-1300mm

Web guide accuracy

±0.5mm

Material thickness

0.012-0.2mm

Machine weight

3500kg

Total power

17kw

Machine size

3.6×4.8×1.85M
