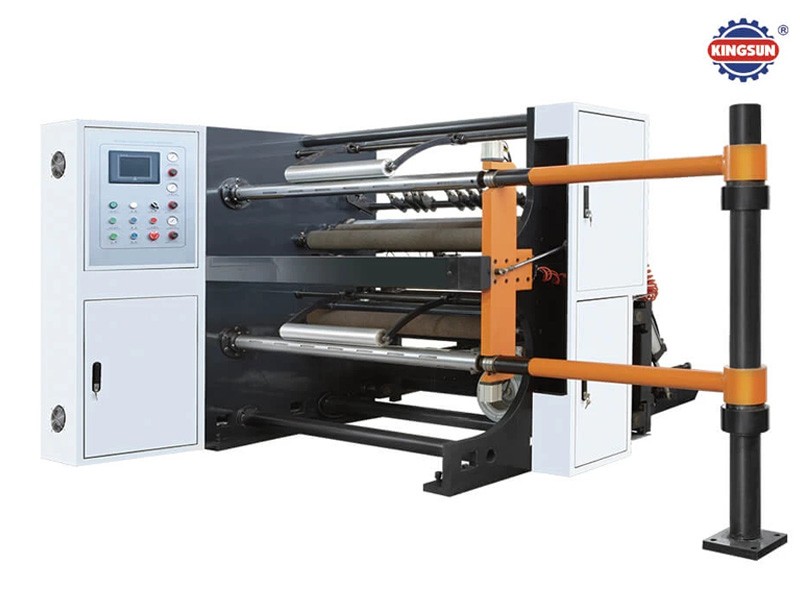

KSFQ-1300R Film Rolls Slitting Machine

Very cost-effective series slitting machine for film rolls cutting, if add the circle bade cutting is it also fit for paper rolls etc, this slitting machine is good for inside printing house and packaging making company,with efficient and reliable features, for more details please contact us now.

KSFQ-R series high speed film rolls slitting machines

This is one of very cost-effective model machines for slitting rewinding double adhesive label paper, film rolls, laminated Al foil, or normal blank plastic film etc. We welcome the special sizes ,  for different materials and requirement, the specifications of slitting machine will be some changes.

Main features:

1) All electric system with PLC central control, HMI setting technical parameters, with English page.

2) Rewinding and unwinding use magnetic clutch and brake, PLC automatic tension control.

3) Unwinding with air shaft loading, with air cylinder for materials lifting.

4) With straight knife knife cutting device, rewinding edge side flat and smooth, the edge side has blower to treat the waste.

5) With EPC web guide so can rewinding more accurate.

6) Meter counter for length measuring.

Main technical specifications:

Max unwinding diameter

φ800mm

Max rewinding diameter

φ600mm

Slitting width

40mm-1300mm

Rewind paper core

3 inch ( 6 inch can be special made)

Max machine speed

30-300m/min

Machine wall stand inner width

1540mm

Web guide Precision

0.5mm

Tension range

230kg

Unwind brake

5KG

Main motor

4KW

Whole machine power

6kW

Machine size

205×260×170cmL X W X H

Machine weight

2500kg

Slitting material

BOPP, PET film roll 12-180um, PE,PVC 40um-150um, foil, paper

Machine color

white (or custom’s choice)


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
