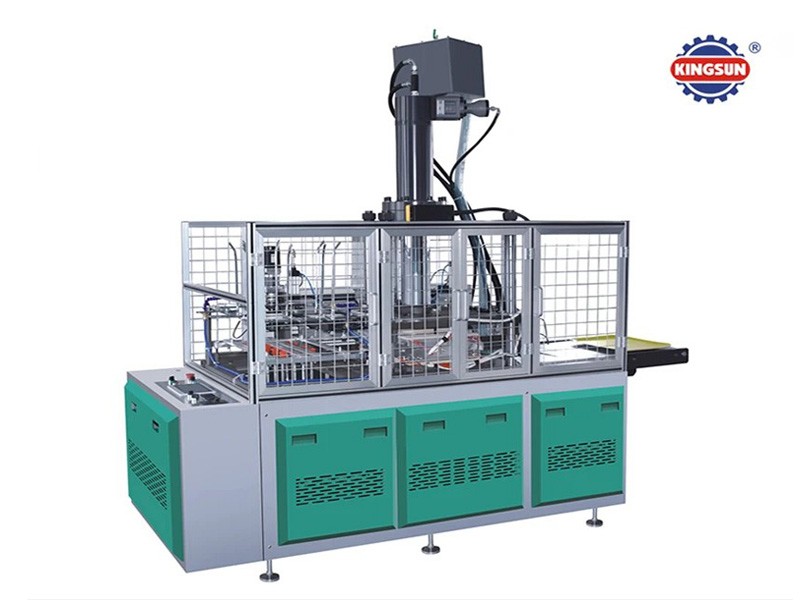

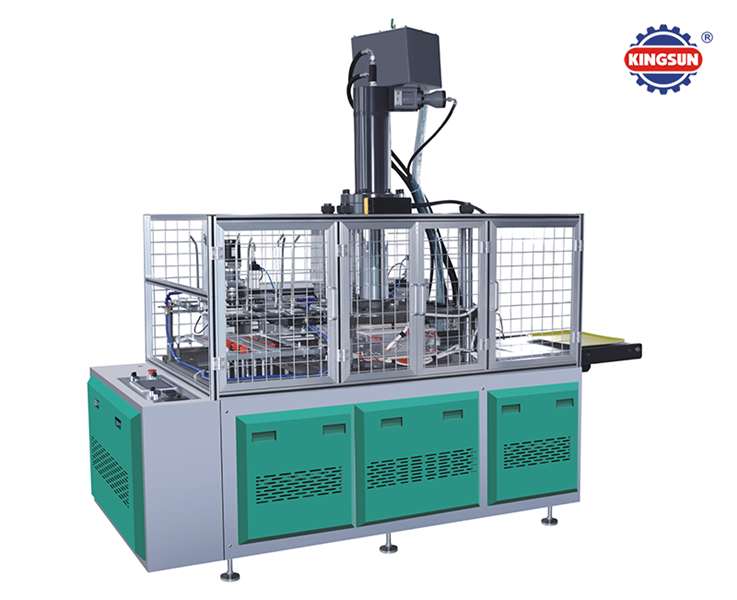

KML-800J Heavy Duty Paper Plate Machine
- Product Details
- Key Features
- Technical Specifications
- Online Inquiry
- Video
- Related Products
Product Details
The KML-800J heavy-duty paper plate machine is engineered for advanced performance in manufacturing standard and specialty thick paper containers. Designed for demanding production environments, it efficiently produces conventional paper plates, irregular-shaped plates, deep paper bowls, and thickened paper plates with consistent quality and reliability. Its innovative integration of hydraulic and mechanical control systems ensures precision, speed, and adaptability.
Key Features
✅ Hybrid Hydraulic-Mechanical Control – Combines hydraulic power with servo-driven mechanical precision for smooth, stable operation.
✅ Servo-Controlled Paper Feeding – Ensures accurate positioning and reduced material waste.
✅ Automated Robotic Stacking – Mechanical arm system collects and stacks plates efficiently, minimizing manual intervention.
✅ High Output & Versatility – Capable of producing deep plates, bowls, round, and square containers with quick mold changes.
✅ User-Friendly Design – Simplified operation and maintenance for enhanced productivity.
Technical Highlights
-
Material Compatibility: Works with raw paper, aluminum foil, and eco-friendly materials.
-
Mold Flexibility: Easily interchangeable molds support diverse container specifications.
-
Deep-Plate Optimization: Solves challenges in collecting and stacking deep-shaped paper containers.
-
Energy-Efficient Operation: Advanced hydraulic system reduces power consumption while maintaining high output.
Why Choose KML-800J?
✔ Higher Production Efficiency – Outperforms traditional paper plate machines in output speed and stability.
✔ Reduced Labor Dependency – Automated processes lower operational costs and human error.
✔ Adaptable to Market Needs – Quickly switch between product types to meet changing customer demands.
✔ Durable & Low-Maintenance – Built with industrial-grade components for long-term reliability.
Applications
Ideal for manufacturers of disposable tableware, food packaging suppliers, and businesses producing:
- Paper plates and trays for catering and events
- Deep bowls for soups and snacks
- Custom-shaped containers for retail packaging
- Aluminum foil containers for food preservation
Request a Quote or Custom Solution
Contact us to discuss how the KML-800J can optimize your special paper plate production line. We offer tailored configurations to match your specific output goals and paper material requirements.
Technical Specifications
|
Paper size |
Round dia 4-20” Rectangular 18(L)x 18(W)” |
|
Speed |
15-20pcs/minute |
|
Electric voltage |
380V 50HZ or custom made |
|
Rated power |
4KW |
|
Actual power |
2KW |
|
Weight |
2000KG |
|
Specifications |
2600×1100×2300mm |
|
Air source |
Working pressuer 0.6Mpa, working air volume 0.3mз/min |
|
Raw material |
100-3500g/㎡(Base paper,white cardboard,white cardboard,aluminum foil paper,or other heavy gsm paper) |
|
Max pressure |
20-30T |
