Products Details

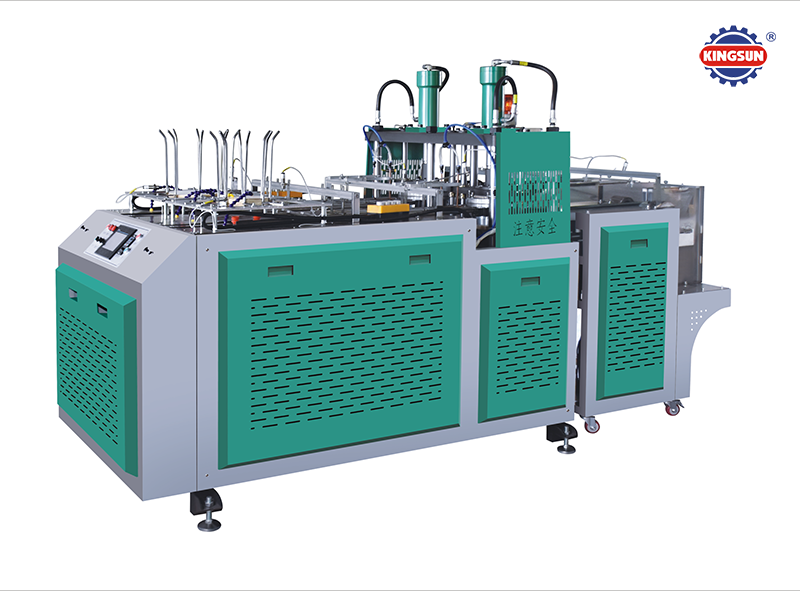

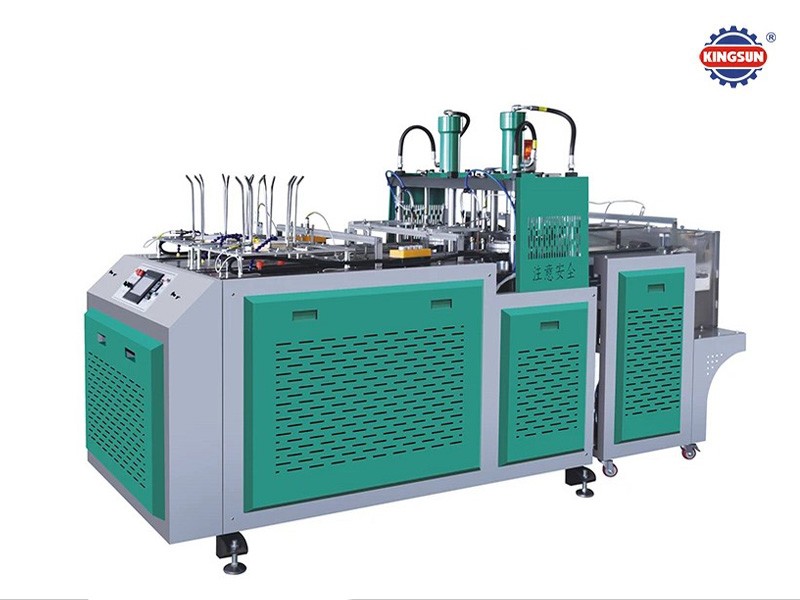

The KML-600Y High-Speed Automatic Paper Plate Making Machine is an independently developed, high-efficiency and durable paper plate production equipment. It features fully automated pneumatic paper feeding, constant-temperature heating and forming, automatic plate ejection, and integrated stacking functions. Designed for seamless integration into continuous production lines, it is ideal for manufacturing high-quality round, square, and custom-shaped paper plates.
This machine innovatively combines hydraulic and mechanical transmission systems, equipped with a fast-response hydraulic drive capable of reaching up to 5 tons of pressure. Compared to traditional pneumatic cylinder machines, it significantly increases speed by 15–20 pieces per minute per station, while offering more stable operation, lower noise, and reduced energy consumption. Its mechanical paper feeding system ensures high stability, lowering the defect rate to below 0.02%.
Integrated with PLC control and photoelectric tracking, the machine enables fully automated production. It includes an efficient automatic counting and stacking system, reducing labor requirements by approximately 50%. Compatible with packaging and labeling machines, it supports fully integrated production line operation. The hydraulic oil recycling system enhances energy efficiency and supports sustainable production.
Key Advantages
1. Independently developed with advanced technology
2. Fast hydraulic system increases speed by 15–20 pieces/min per station
3. Stable mechanical paper feeding with defect rate below 0.02%
4. Automatic counting and stacking saves about 50% of labor
5. Compatible with packaging and labeling machines for full automation
6. Suitable for multi-specification production with 100% yield rate
7. Hydraulic oil recycling system, low noise, environmentally friendly
8. The machine can custom made for CE safety standard, the outside of mold working area can put protection cover for safe
Widely used for efficient production of paper and foil-based containers, the machine allows quick switching of product specifications and shapes through mold replacement. It is an ideal choice for enhancing production capacity and automation levels.
Technical Specifications
|
Paper Plate Size |
4-13” |
|
Paper Grams |
150-800g/m2 |
|
Paper Materials |
Origin paper, whiteboard paper, white cardboard, craft paper, aluminum foil laminated paper or others |
|
Capacity |
Double Stations 40-110pcs/min |
|
Power Requirements |
380V 50HZ |
|
Rated Power |
10KW |
|
Actual Power |
8KW |
|
Weight |
1600kg |
|
Dimensions |
3500×1300×1900mm |
|
Air Supply Requirement |
0.6Mpa, 0.3cube/min |
|
Oil Cylinder |
ML-80-150-5T-X |
|
Cylinder Stroke |
150mm |
