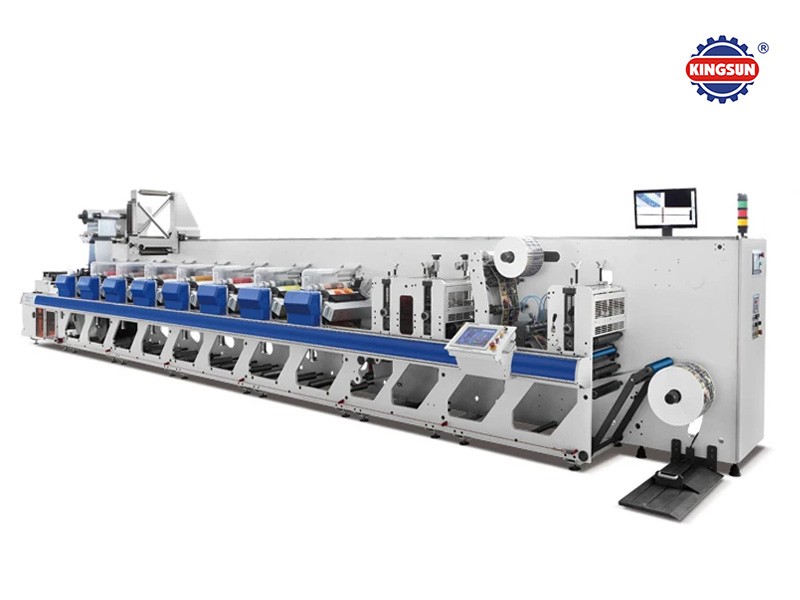

KJR330 Series Modular Sleeve Type Flexo Printing Machine

This series modular type sleeve cylinder flexo printing machine is one of the most advanced flexo printing machine in the world, it adopts Europe latest technology and world famous brand components, to make this machine high quality, high precision and most reliable printing machine for label production.
Product Details
Specifications
Online Inquiry
Video
Related Products

Product Details

This KJR330 series modular type sleeve cylinder flexo printing machine is one of the most advanced flexo printing machine in the label printing industry, it adopts Europe latest technology and world famous brand components, to make this machine high quality, high precision and most reliable printing equipment for label industrial production.

Main features:

1. The whole machine adopts the latest servo control system Rexroth-Bosch from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8 color machine which ensure the accurate registration during high speed running.

2. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design is largely improve the printing quality and reduce the maintenance

3. Fast and easy pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when change the roller, or at most fine adjust for special job.

4. Anvil roller equips with water chiller, it’s good for film material as well.

Specifications

Model:

KJR-330

KJR-450

Max. printing speed:

180m/min

180m/min

Printing color:

4-12 (Colors)

4-12 (Colors)

Max. printing width:

330mm

450mm

Max. web width:

340mm

470mm

Printing repeat length:

Z76-190

(241.3mm-603.25mm)

Z76-190

(241.3mm-603.25mm)

Max. Unwinding diameter.

900mm

900mm

Max. Rewinding diameter.

900mm

900mm

Dimensions (for 8 colors,3 die cutting stations) (L×W×H)

10.83m x 1.56m x 1.52m

10.83m x 1.80m x 1.52m
