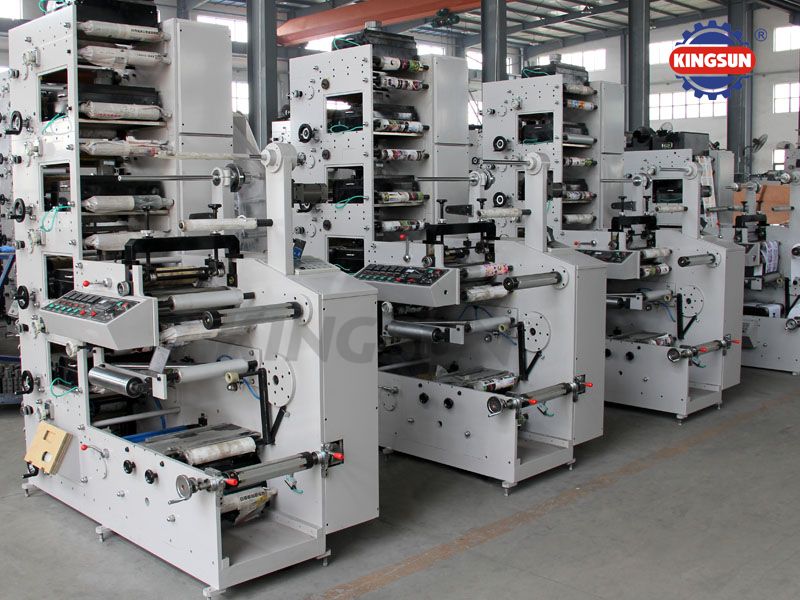

FP-320 Models Flexo printing machines

This series are vertical stack flexo printing press, which fit for flexographic printing of adhesive label paper, commercial forms; computer typing paper, film etc, the printing quality is good and cost effective for the plate. This flexo printing equipment use water based ink, with economic price and save space. it is widely accepted by label conveters and printing houses to print roll paper or other materials.
Product Details
Features
Specifications
Online Inquiry
Video
Related Products

Product Details

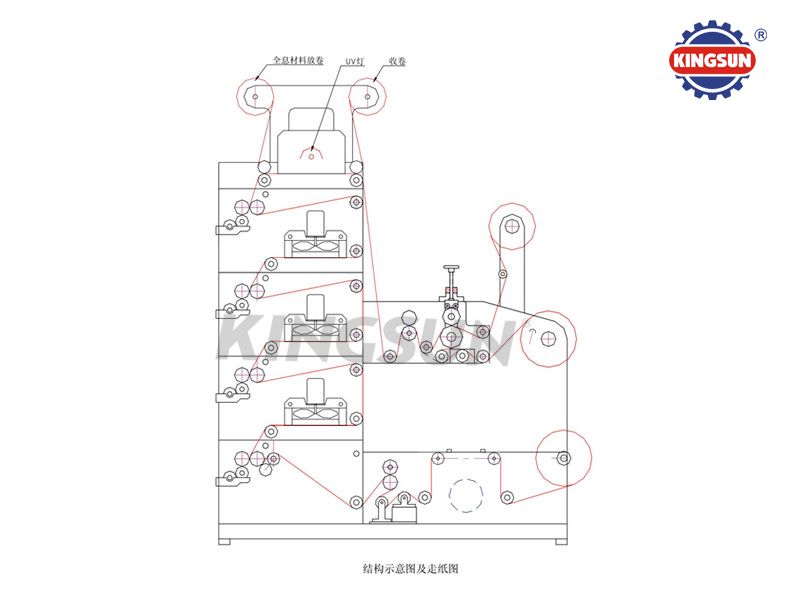

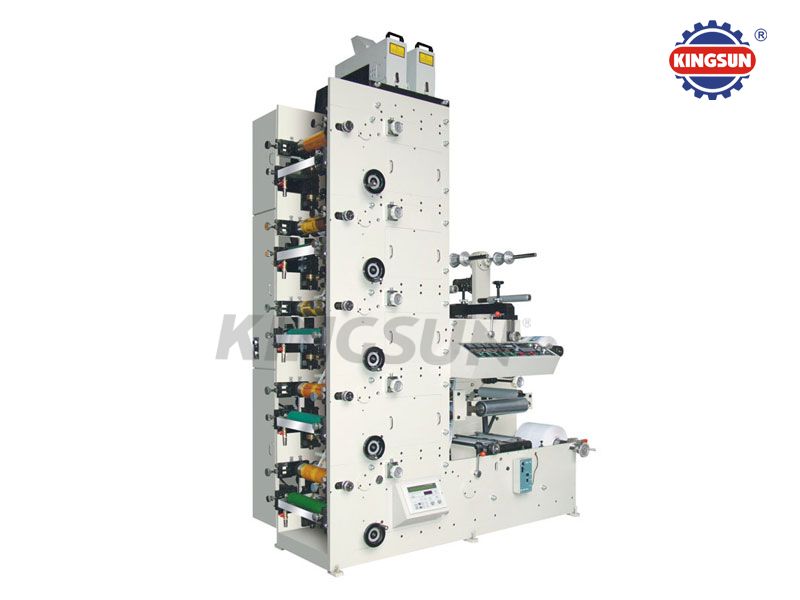

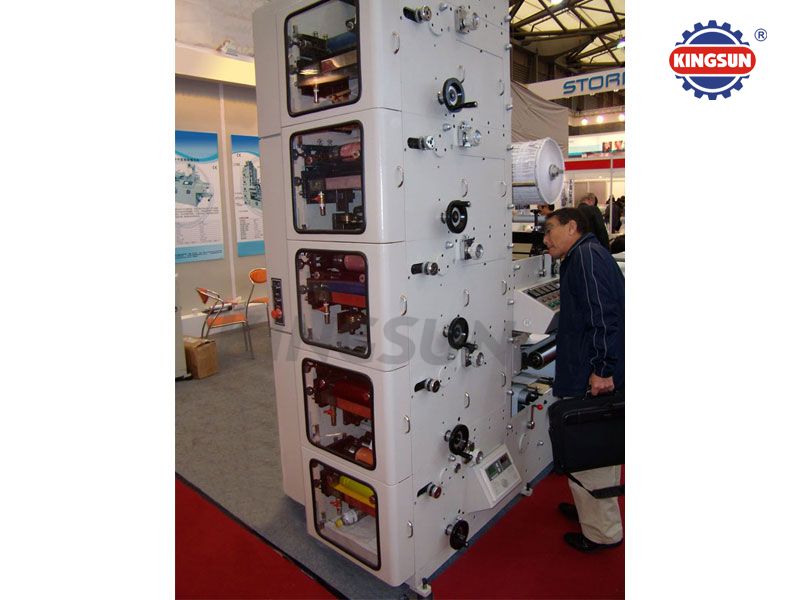

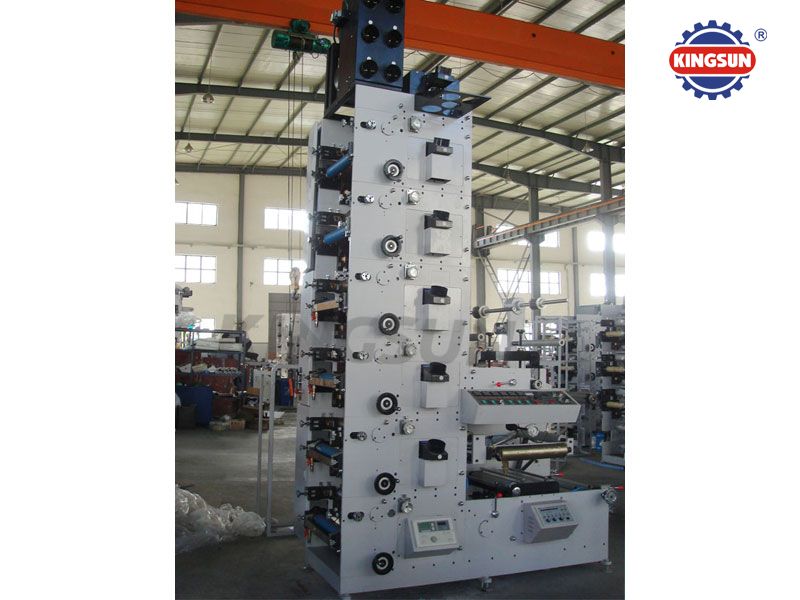

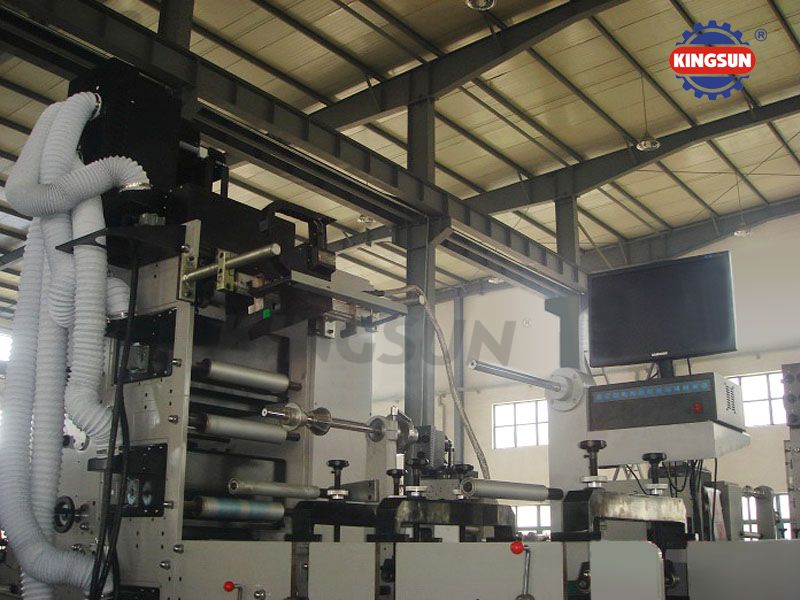

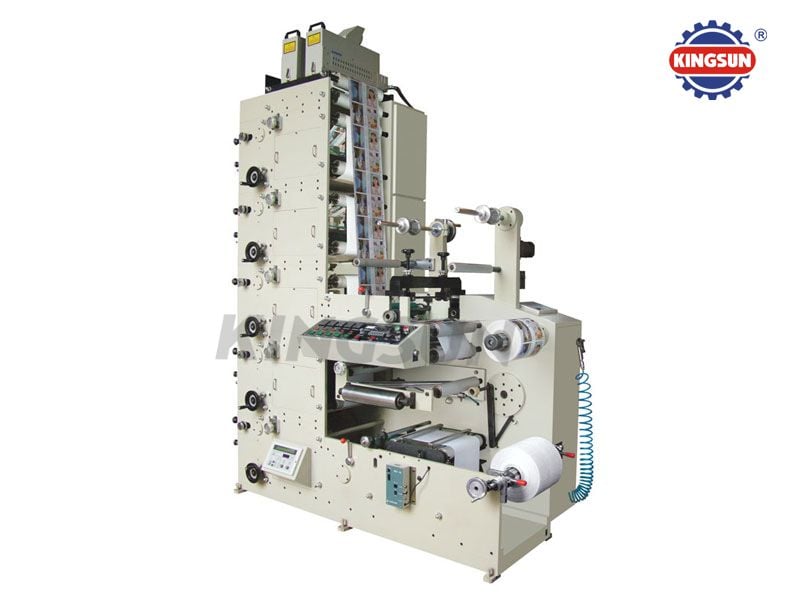

FP-320/450 Models Stack Type Flexo printing machines (Flexo printing press)

This stack-type flexo printing machine is designed for printing on a wide range of materials, including adhesive label paper, plastic labels, commercial forms, computer printing paper, food packaging paper, and plastic films. It delivers high-quality printing results while offering an economical investment, a compact footprint, and easy operation and maintenance. The press supports both water-based and UV inks, making it an environmentally friendly solution widely adopted in the label printing and packaging industry.

Features

1. Use high precision ceramic anilox cylinder for ink transfer

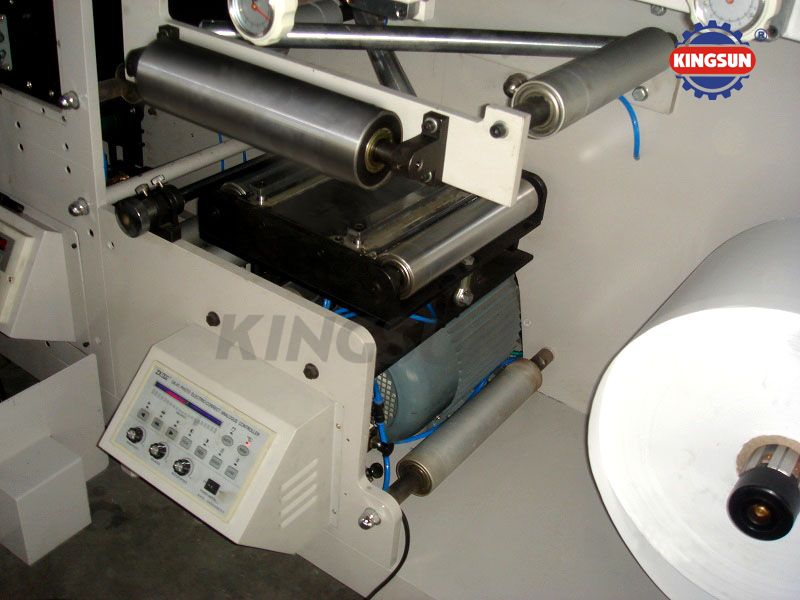

2. Unwinding adopts magnetic brake and Mitsubishi tension controller

3. Rewinding adopts magnetic clutch and reliable tension controller

4. Printing unit 360° plate register adjustment

5. IR dryer for each printing unit

6. The anilox roller will be separated with plate roller and still keeping low speed running after machine stopped

7. Imported frequency inverter for speed control

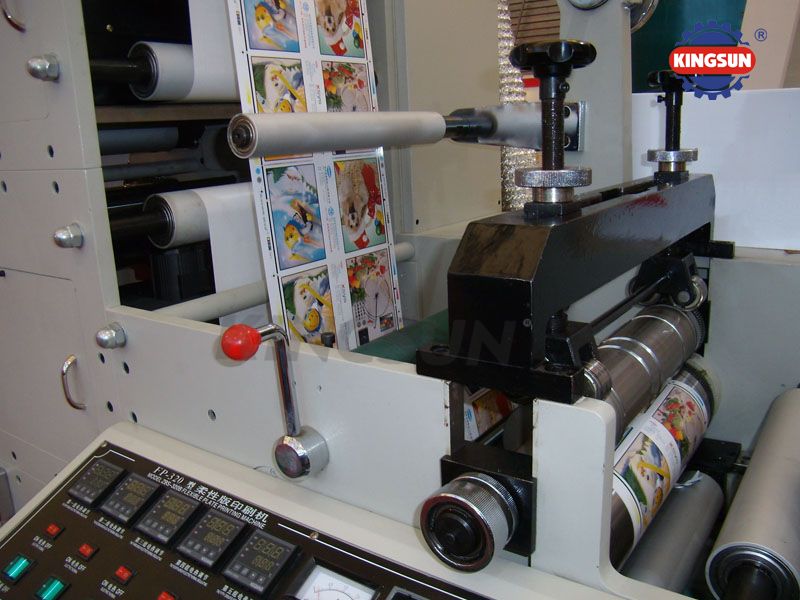

8. With laminating unit and rotary die cutting unit

9. Options: UV dryer, web guide, turn-bar, second rotary die cutting station, slitting unit, video camera etc.

10. 320mm, 450mm, 620mm, 850mm width available, other size can be special made

11. Stack type so can save floor space for printing house.

Specifications

Model

FP-320

FP-450

Printing speed

60m/min

60m/min

Printing color number

4, 5 or 6

4, 5 or 6

Max. web width

320mm

450mm

Max. printing width

310mm

430mm

Max. unwinding diameter

600mm

600mm

Max. rewinding diameter

600mm

600mm

Printing repeat length

175-355mm

175-355mm

Precision of color register

±0.1mm

±0.1mm

Overall dimensions

2X1.1X2.7M

2X1.25X2.7M

Weight

About 2500kg

About 3200kg
