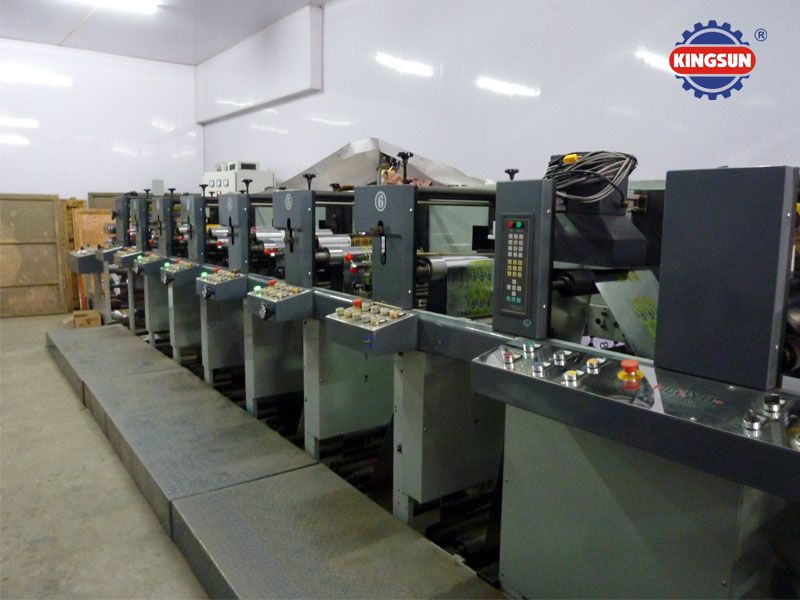

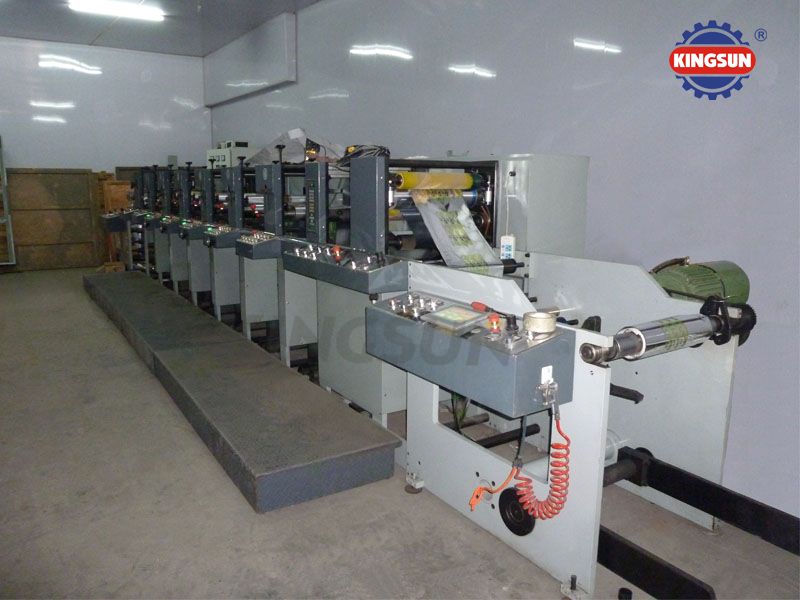

FP-1358 Series Label Flexo Printing Presses
- Product Details
- Specifications
- Online Inquiry
- Video
- Related Products
Product Details
This label printing machine is improved from abroad advance technique, it is a unit-type press which has reached the advanced world level. This press adopts PLC, and equipped with advanced automatic tension controlling system, rectifying system, IR/UV drying system as well as image inspecting system. All of those equipments ensure the accurate registration and perfect artwork. It can be assembled ( based on customers’ demand ) with varieties of functional system, such as non-stop unwind and rewind system, cold stamping, rotary die cutting, creasing, embossing, sheeting, slitting , waste-edge rewinding, vacuum waste-removal, stripping-printing-lamination for sticker, double side printing , continuous-line gravure printing/screen printing, laminating, stamping, hole-punching, folding. This press has its wuper connectivity with most related devices
Specifications
|
Printing color |
3-12colors |
|
Max web width |
340mm |
|
Max printing width |
330mm |
|
Max. unwinding diameter |
1524mm |
|
Max. rewinding diameter |
1524mm |
|
Printing repeat |
178-508mm |
|
Max. speed |
0-150m/minj |
|
Mian motor power |
7.5kw |
|
Air presser |
0.6mp |
|
Electric supply |
380v 3ph 50hz |
