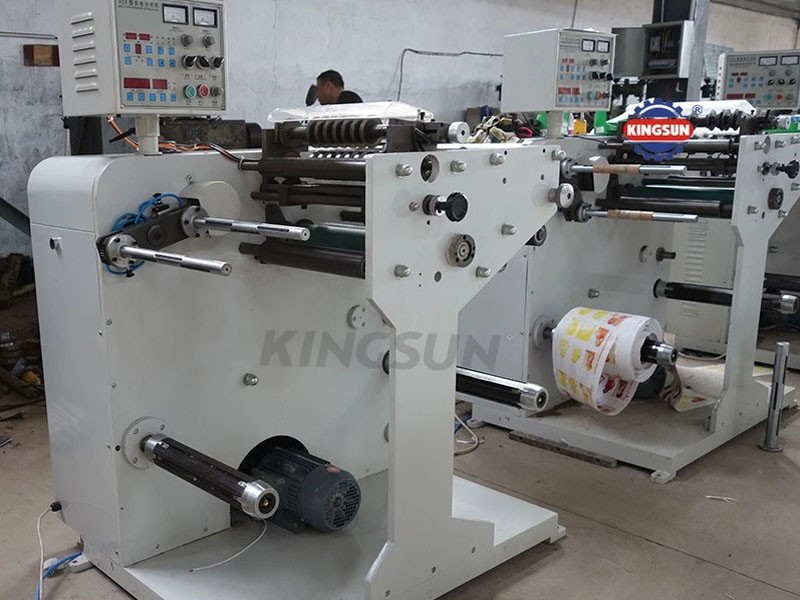

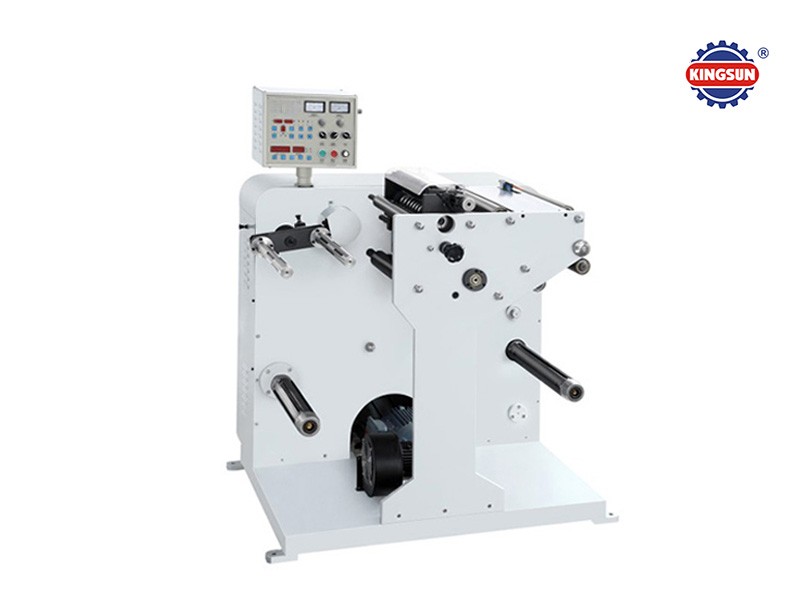

DK-320H high speed label slitter

This series paper label slitter rewinders suitable for narrow width label slitting and rewinding converting, it is an ideal auxiliary slitting equipment for label converters, after printed then use this slitter machine to slit into required small rolls. With features of durable and stable working performance, the machine sold 20 years ago still running well, welcome to contact us now!
Product Details
Specifications
Online Inquiry
Video
Related Products

Product Details

DK-320H/450H Series High Speed Label slitter rewinders

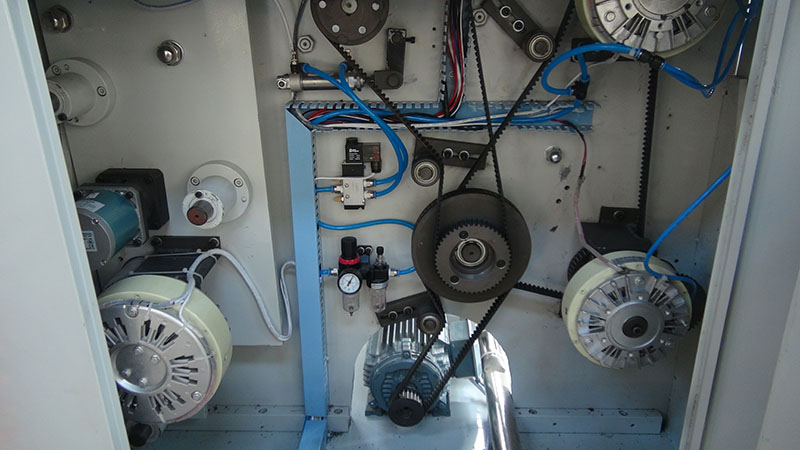

This series label slitterrewinders suitable for narrow width paper label slitting and rewinding.It has the function of automatically counting length,counting number and pre-setting stop,waste edge side paper blowing out.The whole structure is compact and new design,faster speed with high efficiency,simple for operation.( Also availabel the 570 model). It equipped with magnetic powder brake and clutch so can better control the tension.

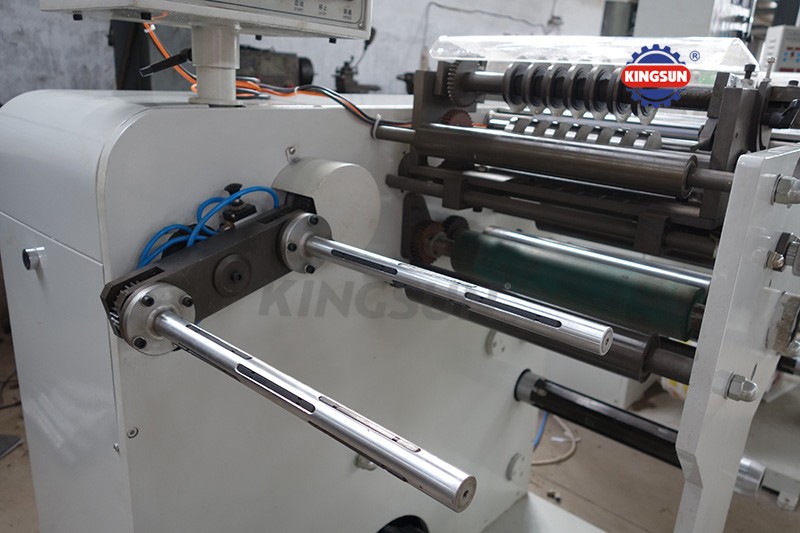

This is new model which can tailor made as double rewinding shaft turnover, the rewinding air shaft OD can be special made as half inch, one inch, or any size fit for your production.

Specifications

Model

DK-320H

DK-450H

Slitting speed

10-120m/min

10-120m/min

Max. web width

320mm

450mm

Max. unwinding diameter

600mm

600mm

Max. rewinding diameter

480mm

480mm

Slitting precision

±0.5mm

±0.5mm

Overall dimensions

1.1X0.9X1.30M

1.1X1.1X1.30M

Weight

About 450kg

About 600kg
