Professional Manufacturer of Precision Machinery for Printing, Packaging & Paper Converting with 25+ Years of Expertise, Exported to 100+ Countries, Strict Quality Control, and Excellent Service - All to Bring You More Value.

HomeProducts Label Making MachinesLabel Slitting MachinesAdhesive Paper Label Thermal Film Laminating Machine

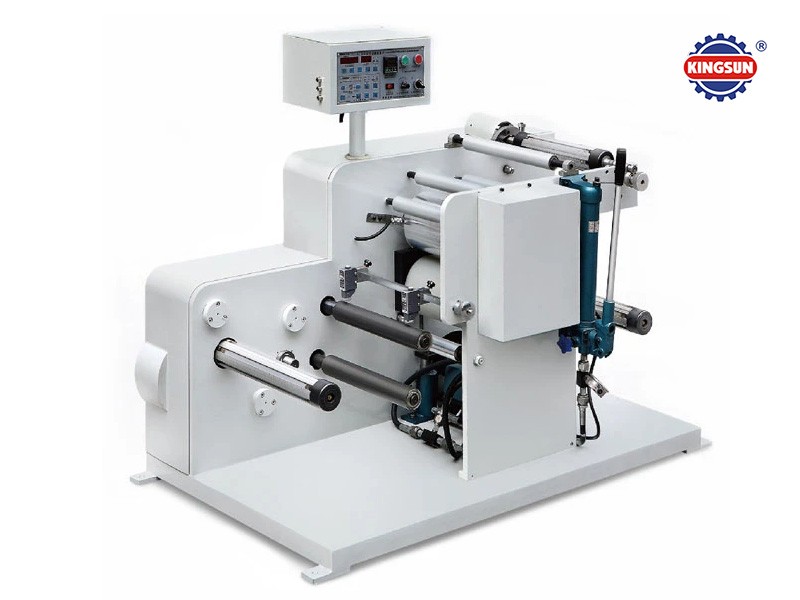

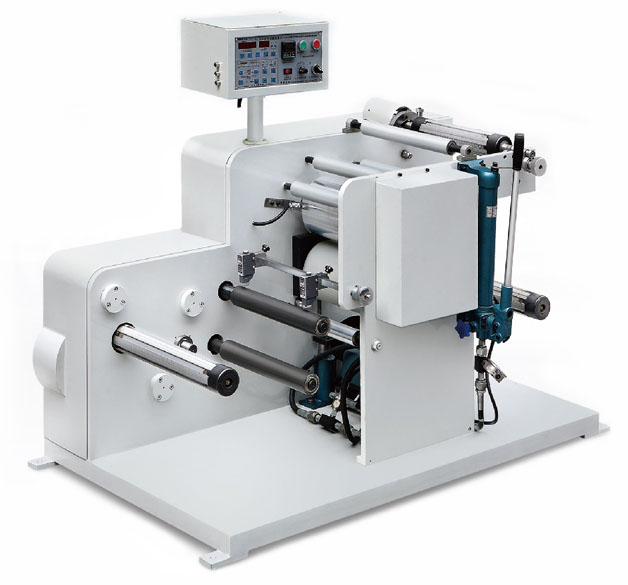

Adhesive Paper Label Thermal Film Laminating Machine

FML -320 automatic roll to roll thermal laminating machine is fit for laminating adhesive paper label material. It mainly consists of unwinding system, laminating system, rewinding system. Heating roller heated by hot oil circulation system to ensure the accuracy of the cylinder temperature. Unwinding installed with web guide system, compact structure, high degree of automation, humanized operation, it is an excellent choice for large and medium-sized label converter. It can greatly decrease the cost of traditional label cold film laminating.
Product Details
Main Technical Parameter
Online Inquiry
Video
Related Products

Product Details

FML -320 automatic roll to roll thermal laminating machine is fit for laminating adhesive label material. It mainly consists of unwinding system, laminating system, rewinding system. Heating roller heated by hot oil circulation system to ensure the accuracy of the cylinder temperature. Unwinding installed with web guide system, compact structure, high degree of automation, humanized operation, it is an excellent choice for large and medium-sized label converter. It can decrease the cost of traditional film laminating.

Pre-coated film advantages for film laminating:
*The price of pre-coated glossy film is 0.27 yuan per square meter
*The price of pre-coated matt film is 0.32 yuan per square meter
*Laser hologram film can be customized at 1 yuan per square meter

*Compared with traditional cold laminate film, the cost is reduced by 50-60%. (The cost may change due to different thickness etc).

Main Technical Parameter

Model

FML -320

Max. Paper Width

320mm

Unwinding Diameter

600mm

Rewinding Diameter

600mm

Laminating Temperature

0-120℃

Max. Speed

60m/min

Power

5.5kw

Dimension(L*W*H)

1700*900*1350m
