This machine is a new developed slitter machine with die cutter system,It is equipped with high accurate die-cutting system.It can finished die-cutting,laminating(option),slitting in one precess.It has the functin of automatic meter counting,automatic stop, web guiding.This machine has the characteristic of compact structure,fast speed,high efficency,easy operation,accurate slitting and steady running etc.
kingsungroup
E-mail Us
PDF Download
Video Link

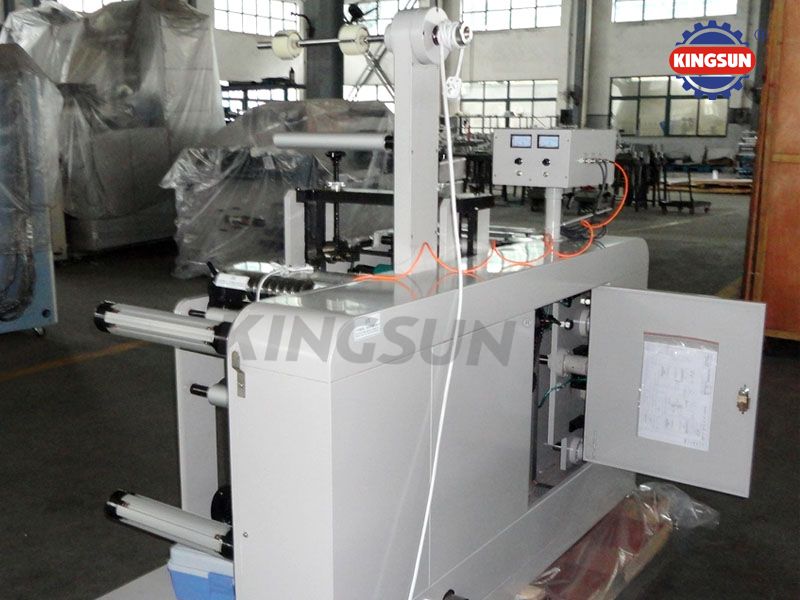

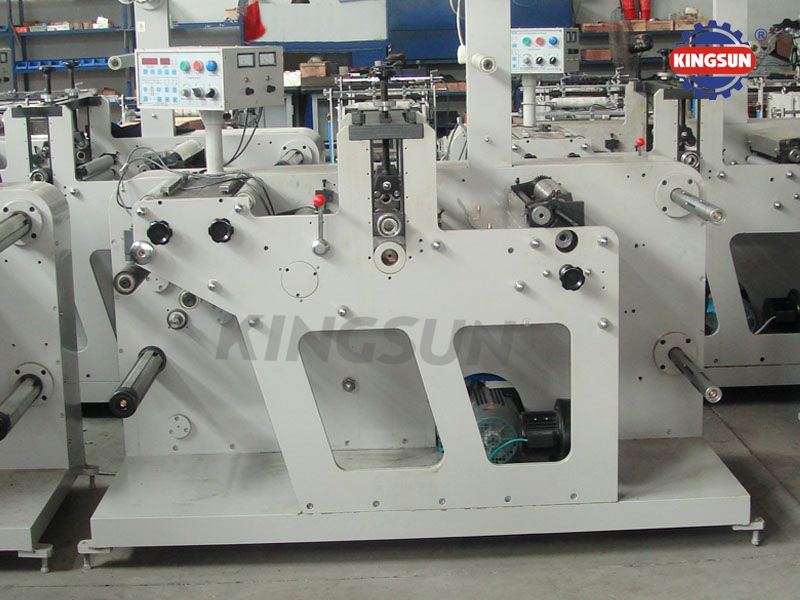

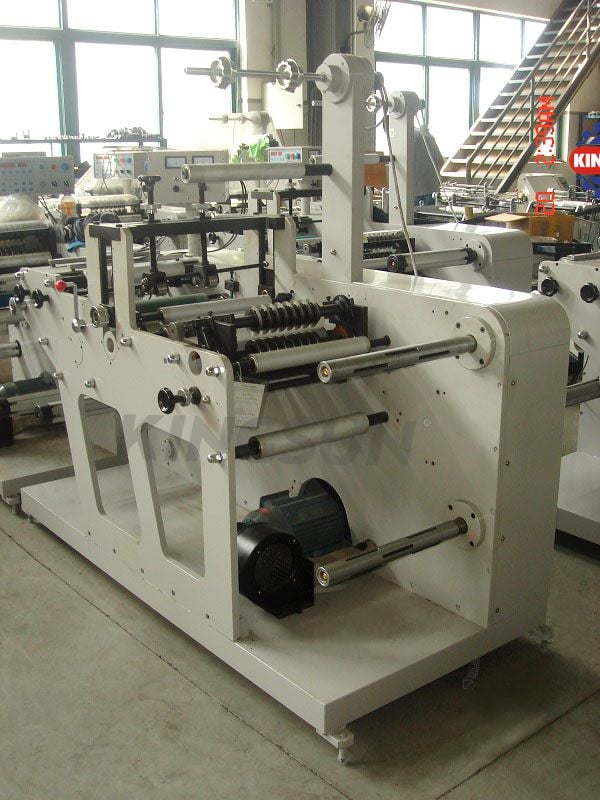

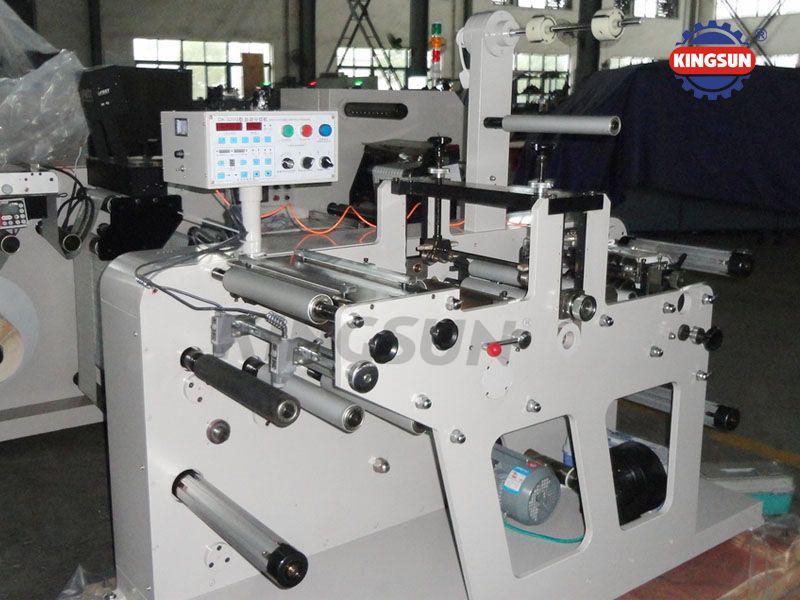

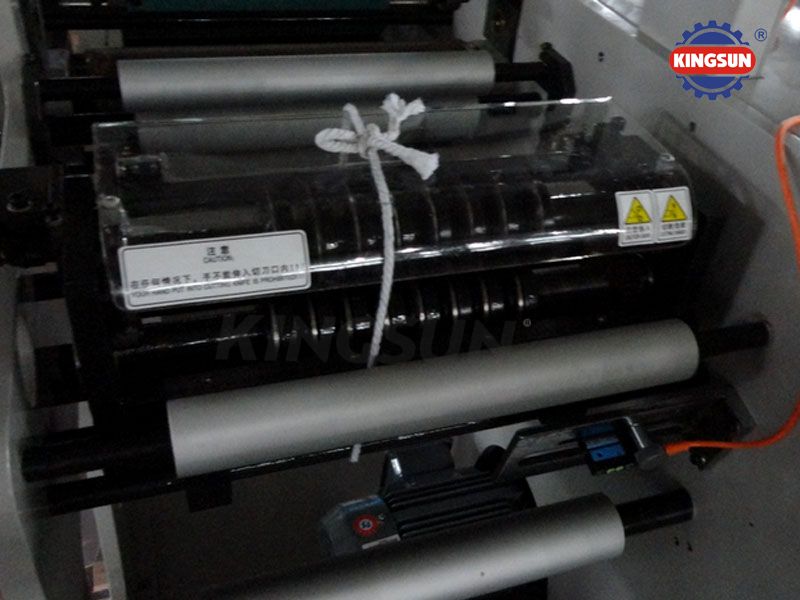

DK-320G Model Label Slitter with Rotary Die Cutter
This machine is a new developed slitter machine,It is equipped with high accurate rotary die-cutting system.It can finished die-cutting,laminating(option),slitting in one precess.It has the functin of automatic meter counting,automatic stop, web guiding.This machine has the characteristic of compact structure,fast speed,high efficency,easy operation,accurate slitting and steady running etc. Model 450G is also available for choice.
Main specifications:
|
Slitting speed |
75m/min |
|
Die-cutting speed |
60m/min |
|
Max. web width |
320mm |
|
Die-cutting repeat length |
177-476mm |
|
Max. unwinding diameter |
500mm |
|
Max. rewinding diameter |
480mm |
|
Overall dimensions |
1.6X0.9X1.3M |
|
Weight |
About600kg |
