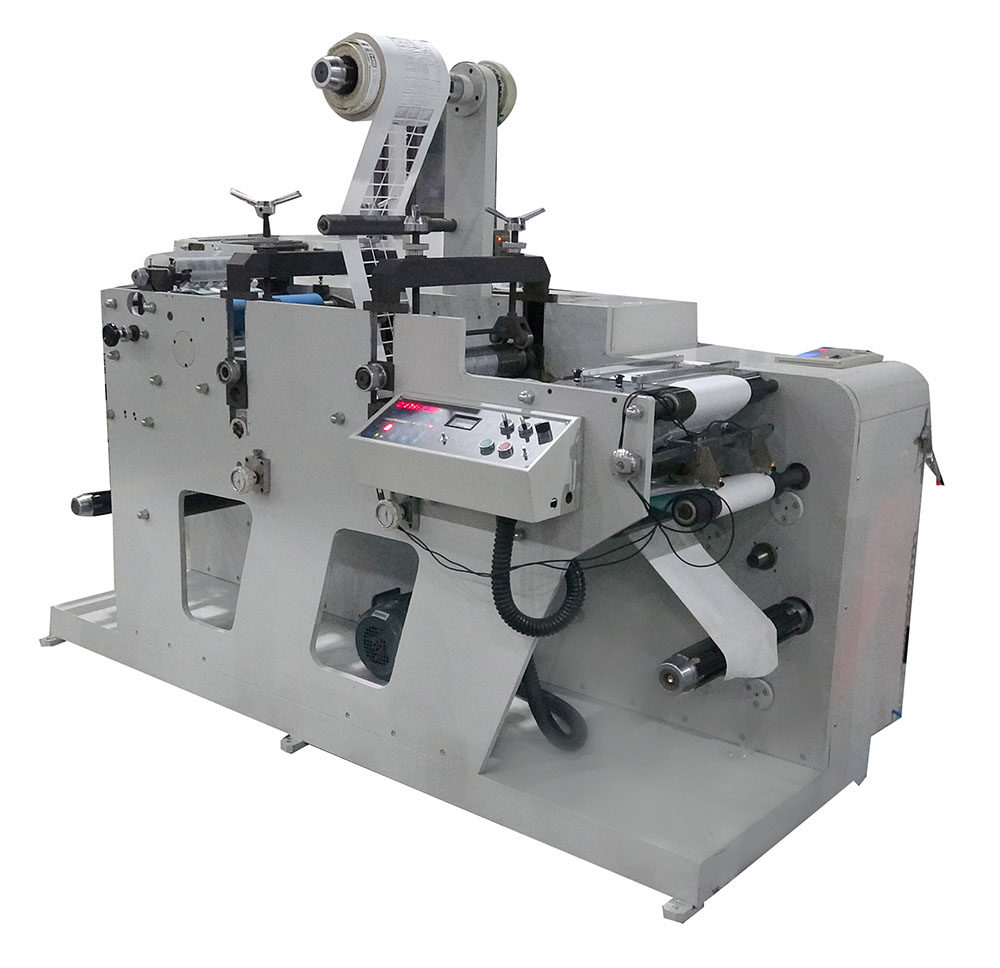

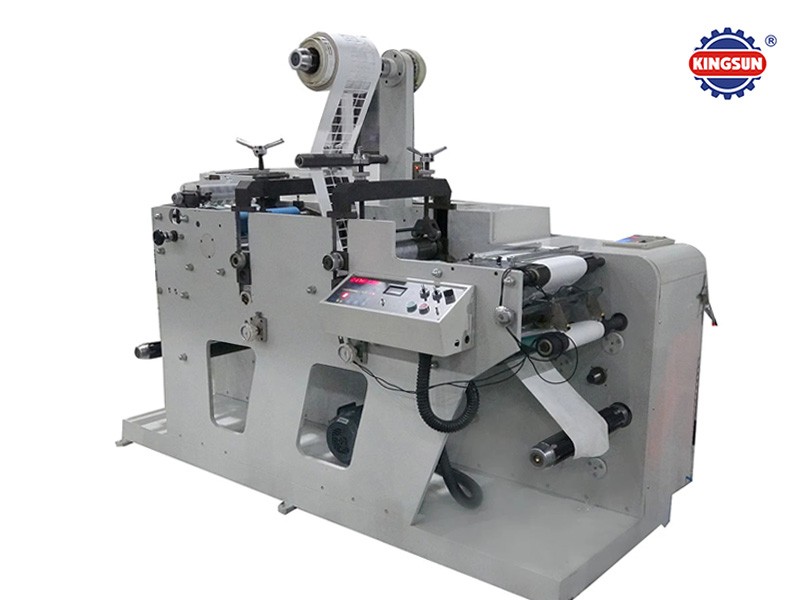

DK-320G-2 Model Label Slitting Machine with Two Units Rotary Die-cutting

This label rotary die cutting and slitting machine is suitable for blank adhesive labes, installed with two rotary die cutting units. It has the function of automatic meter counting , automatic stop,web guiding by photocell.The machine has the characteristic of compact structure,fast speed ,high efficiency,easy operation,accurate die cutting and steady running etc.

Main technical specifications:

Max Speed

120m/min

Die-cutting speed

100m/min

Max. web width

320mm

Die-cutting length

177-476mm

Max. unwinding diameter

500mm

Max Rewinding Dia.

480mm

Precision of Chromatography

±0.15mm

Overall DiameterL×W×H

2000×1100×1300mm

Weight

1200KG

Voltage

220V 2.2KW 50/60HZ
