SW-820 Model Automatic Thermal Laminator Machine

This model is a new designed automatic thermal film laminating machine, adopts latest advanced technology in the world so that the machine can be run very precise and reliable. It is one of most professional equipment for your post-printing finishing, we deliver & support worldwide, Europe standard manufacturing the laminating machine.

SW-820 model automatic thermal laminator machine, automatic thermal film laminating machine


Instant Electromagnetic Heater

Heat up time shorten to 90 seconds, accurate temperature control: ±1

Main technical specifications:

Model

SW-820

Max paper size

820 × 1050MM

Min paper size

300 × 300MM

Paper thickness

100-500G/M2

Laminating speed

0-65M/MIN

Gross power

21kw

Total weight

4050KG

Overall dimensions

6300×2000×1900MM

Pre-stacker

1850mm

Main features:

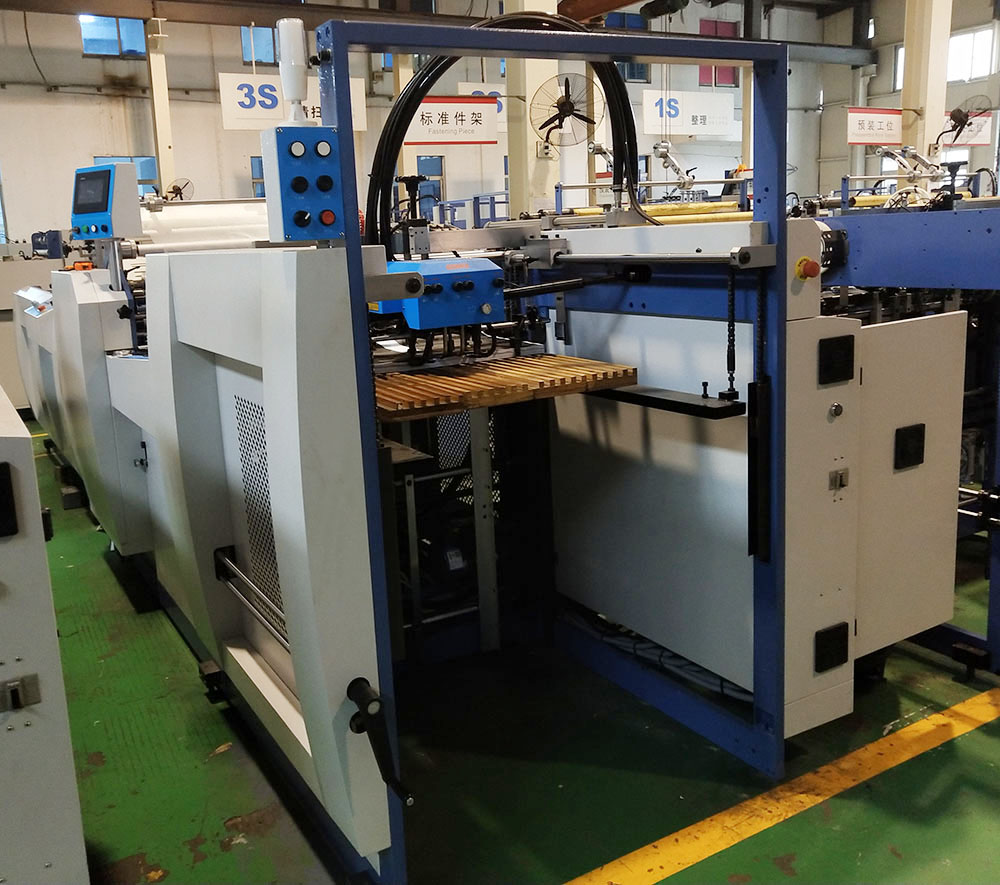

1. Auto-feeder: This machine is equipped with a paper pre-stacker, servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine.

2. Electromagnetic heater: equipped with advanced electromagnetic heater. Fast pre-heating., energy saving, environmental protection.

3. Side lay regulator: the servo controller and side lay mechanism guarantees precise paper alignment at all times.

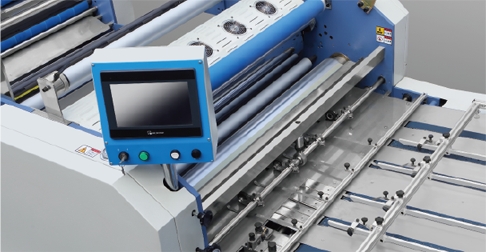

4. Human-computer interface: a user-friendly interface system with a color touch-screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

5. Separation system:  pneumatic separation system to separate the paper stably and quickly.

6. Anti-curvature device: the machine is equipped with and anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

7.Automatic stacker: automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.


Other optional function can be custom made, please contact us for more details.
