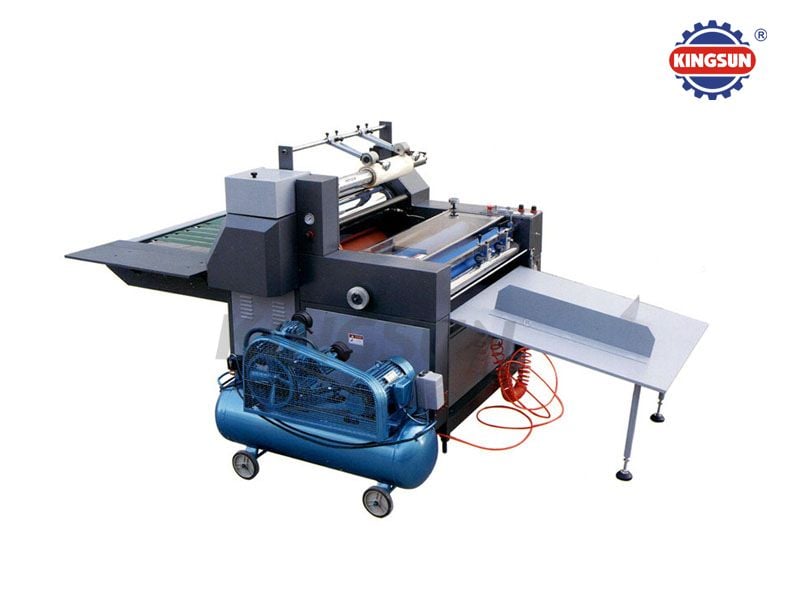

KFMB-720B920B1200B Semi-auto Glue-less and Thermal Film Laminating Machine

This series thermal laminating machine is designed and manufactured elaborately based on international similar machines, which have more than 20 years’ manufacturing experience. These machines have advanced technology, excellent quality and fashionable appearance.

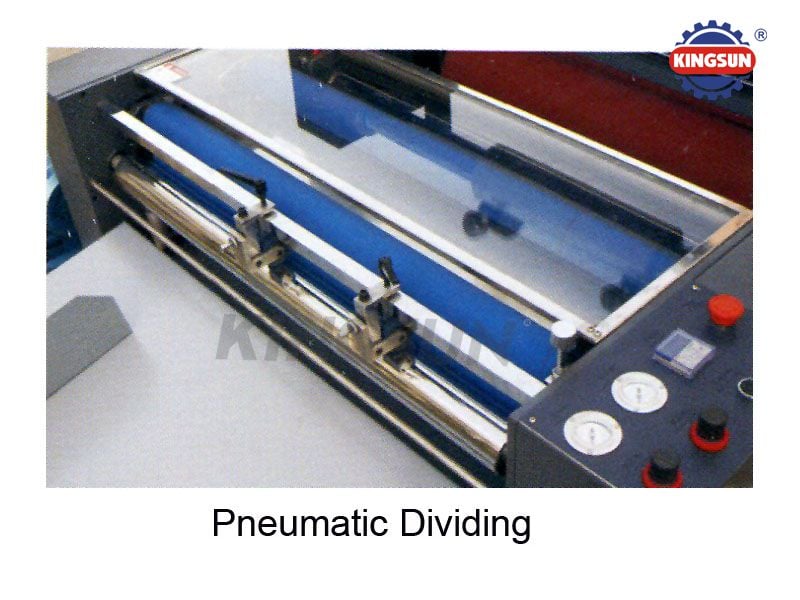

KFMB-720B920B1200B Semi-auto Glue-less and Thermal Film Laminating Machine (Pneumatic Dividing)

Introduction:

This series thermal laminating machine is designed and manufactured elaborately based on international similar machines, which have more than 20 years’ manufacturing experience. These machines have advanced technology, excellent quality and fashionable appearance.

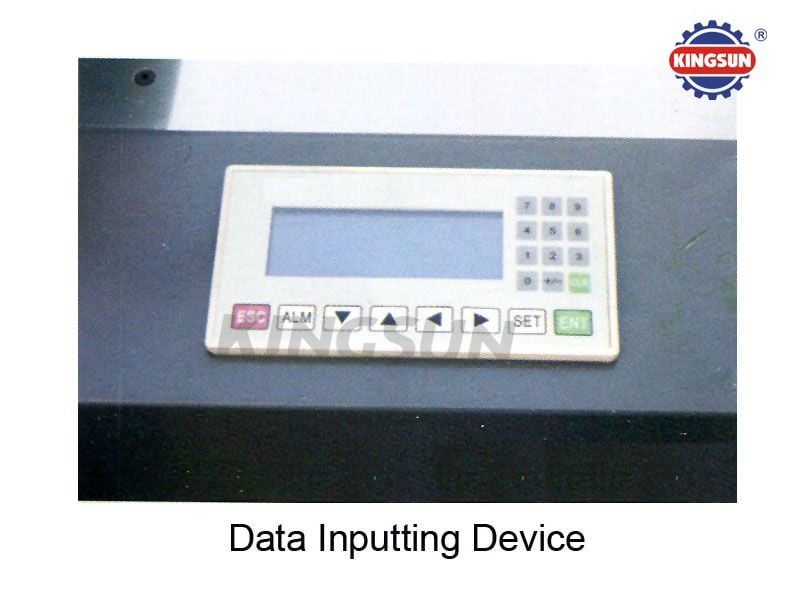

These machines can laminate glue-less film and thermal film with compact structure, small volume and easy operation. Electrical system and main parts are international brand. Only one worker can run it quickly. Input your inquired sizes into the size screen, you can finish laminating and cutting in the same course.

Features:

1.  Operate smoothly by frequency conversion.

2.  Realize the dividing, breakdown alert by PLC

3.  High precision hard chrome plating mirror steel heating roller, oil heating system and the constant temperature device.

4. Film shaft is air expansion spindle. It is convenient to load and release film to accurate position.

Technical specifications:

Model

KFMB-720B

KFMB-920B

KFMB-1200B

Max. laminating width

700mm

880mm

1100mm

Laminating temperature

≤130℃

≤130℃

≤130℃

Paper thickness

80-500g/㎡

80-500g/㎡

80-500g/㎡

Laminating speed

0-50m/min

0-50m/min

0-50m/min

Total power

18KW

18KW

18KW

Total weight

900KG

1100KG

1350KG

Overall dimensions

2800×1580×1900mm

2800×1780×1900mm

2800×2060×1900mm

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
