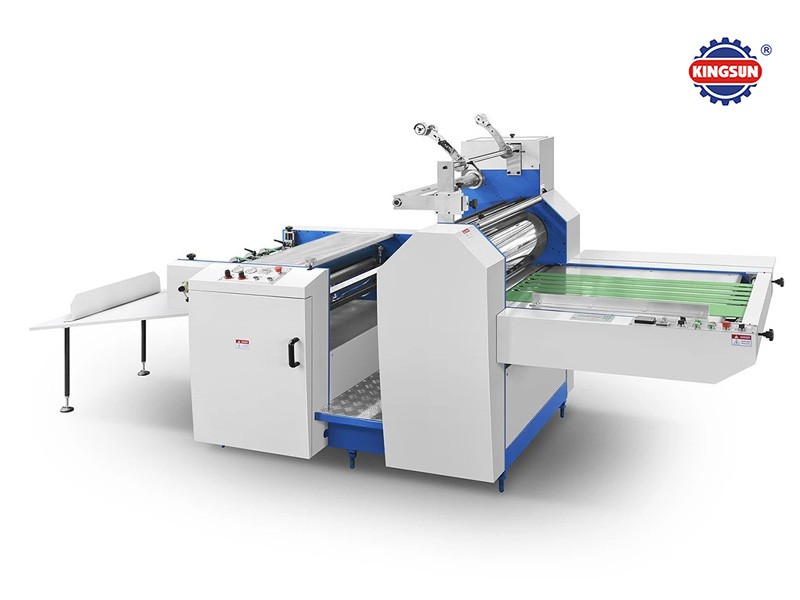

KFMB-720/920/1200L Semi-automatic Thermal Laminator Machine

This series thermal laminator machines are manufactured according to the market requirement. It can finish thermal laminating and cutting automatically. The anti-curve can make the laminating paper smoothly. These machines are used for laminating thermal film or glue-less film, widely used for packing boxes, and periodicals drawing etc. The laminated paper is water-proof, more clear and strong three-dimension art image.

KFMB-720/920/1200L Series Semi-automatic Thermal Laminator Machine

Introduction:

The KFMB-L series thermal laminator machines are manufactured according to the new market requirement. It is designed on the basis of KFMB model, the new structure which can easily for maintenance and operation.Especially to extend the length of machine, so the operator can easily handle the paper and film, or to clean after working.

Features:

1.Use frequency conversion and stable running.

2.Concentrated electric controlling and single person operation.

3.Equipped with dividing device, which cuts the laminated paper automatically.

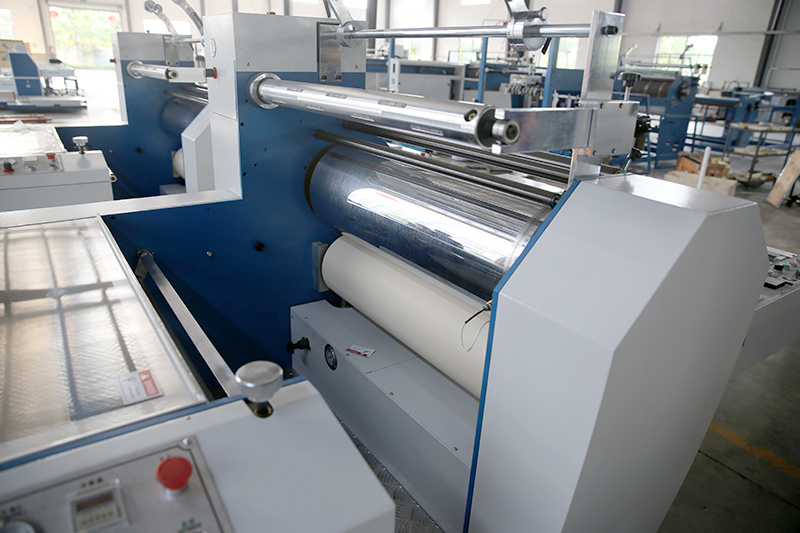

4. High precision mirror surface heating cylinder, inside with heating oil, good performance for constant temperature.

5. PLC control, problem warning etc.

Technical specifications:

Model

KFMB-720L

KFMB-920L

KFMB-1200L

Max. laminating width

700 mm

880 mm

1100 mm

Laminating temperature

60-130℃

60-130℃

60-130℃

Paper thickness

80-500g/㎡

80-500g/㎡

80-500g/㎡

Laminating speed

0-50m/min

0-50m/min

0-50m/min

Total power

18KW

18KW

18KW

Total weight

900KG

1100KG

1350KG

Overall dimensions

3200×1600×1800mm

3200×1800×1800mm

3200×2080×1800mm
