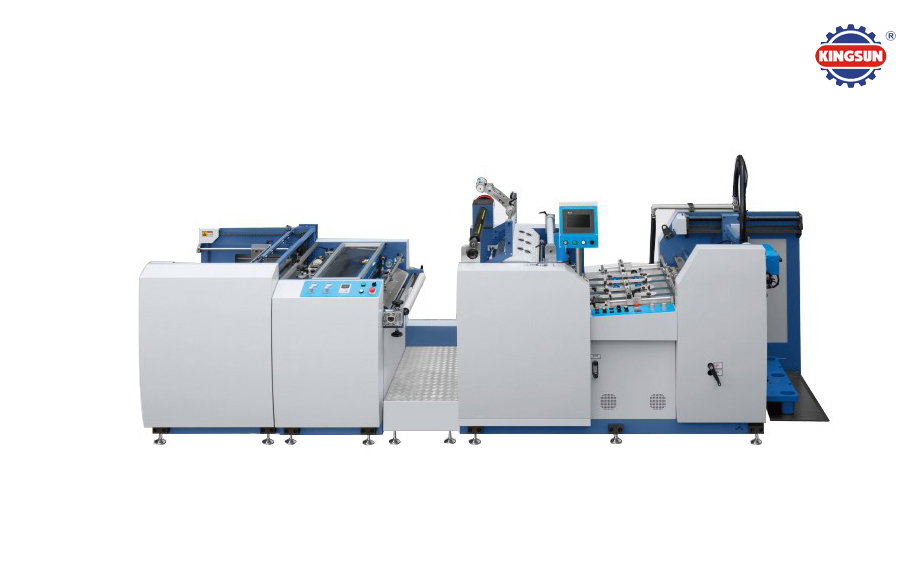

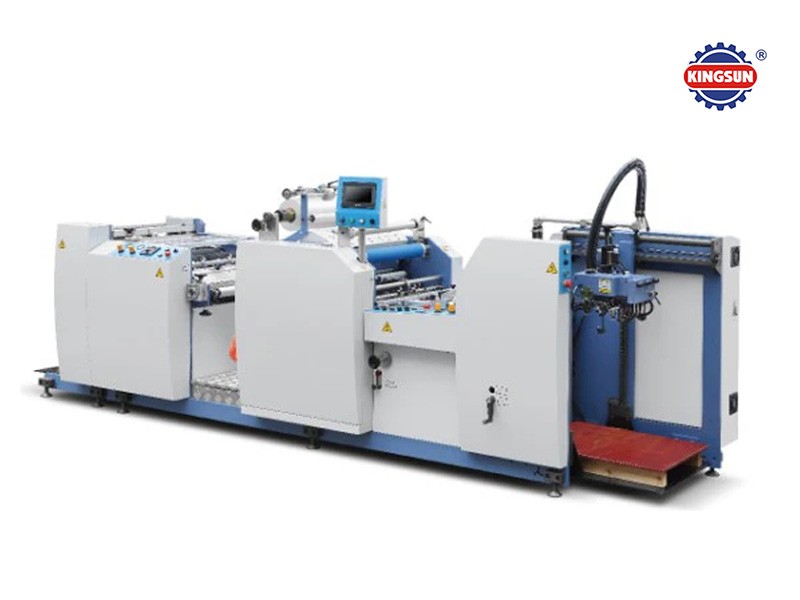

SW-560 Fully Automatic Industrial Thermal Laminating Machine

The SW-560 series laminating machine are new designed to fit for the markting demand, it is smaller size lamination machine to fit for medium size printing house and packaging converting company, so can work the laminating finishing in house. This is one of most efficient thermal laminating machine and with high quality final products.

SW-560/660/760 Fully Automatic Industrial Thermal Laminating Machine

This series are new designed to fit for the markting demand, it is smaller size lamination machine to fit for medium size printing house and packaging converting company, so can work the laminating finishing in house. This is one of most efficient thermal laminating machine and with high quality final products.

Main features:

1. The paper feeding table can be directly lowered to the ground to realize the hydraulic truck pushing the paper stack;

2. Equipped with a suction paper feeding table, which can feed paper stably;

3. The large-diameter heating steel roller is equipped with electromagnetic heating, which makes the laminating effect excellent;

4. Split structure design makes machine operation and maintenance easier;

5. The double-layer guide rail paper flapping plate designed for the automatic collection unit makes it compact and easy to operate.

Main specification:

Model

SW-560

SW-660

SW-760

Max paper width

560*820mm

660 *820mm

760*820mm

Min paper size

210*300mm

210*300mm

210*300mm

Paper thickness

90-600g/m2

90-600g/m2

90-600g/m2

Max laminating speed

0-60m/min

0-60m/min

0-60m/min

Laminating temperature

80-110

80-110

80-110

Voltage

380V,50Hz or special made

380V,50Hz or special made

380V,50Hz or special made

Gross power

20/12 kw

20/12 kw

20/12 kw

Total weight

2600kg

2800kg

300kg

Overall dimensions

4600*1350*1600mm

4600*1450*1600mm

4600*1550*1600mm



Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
