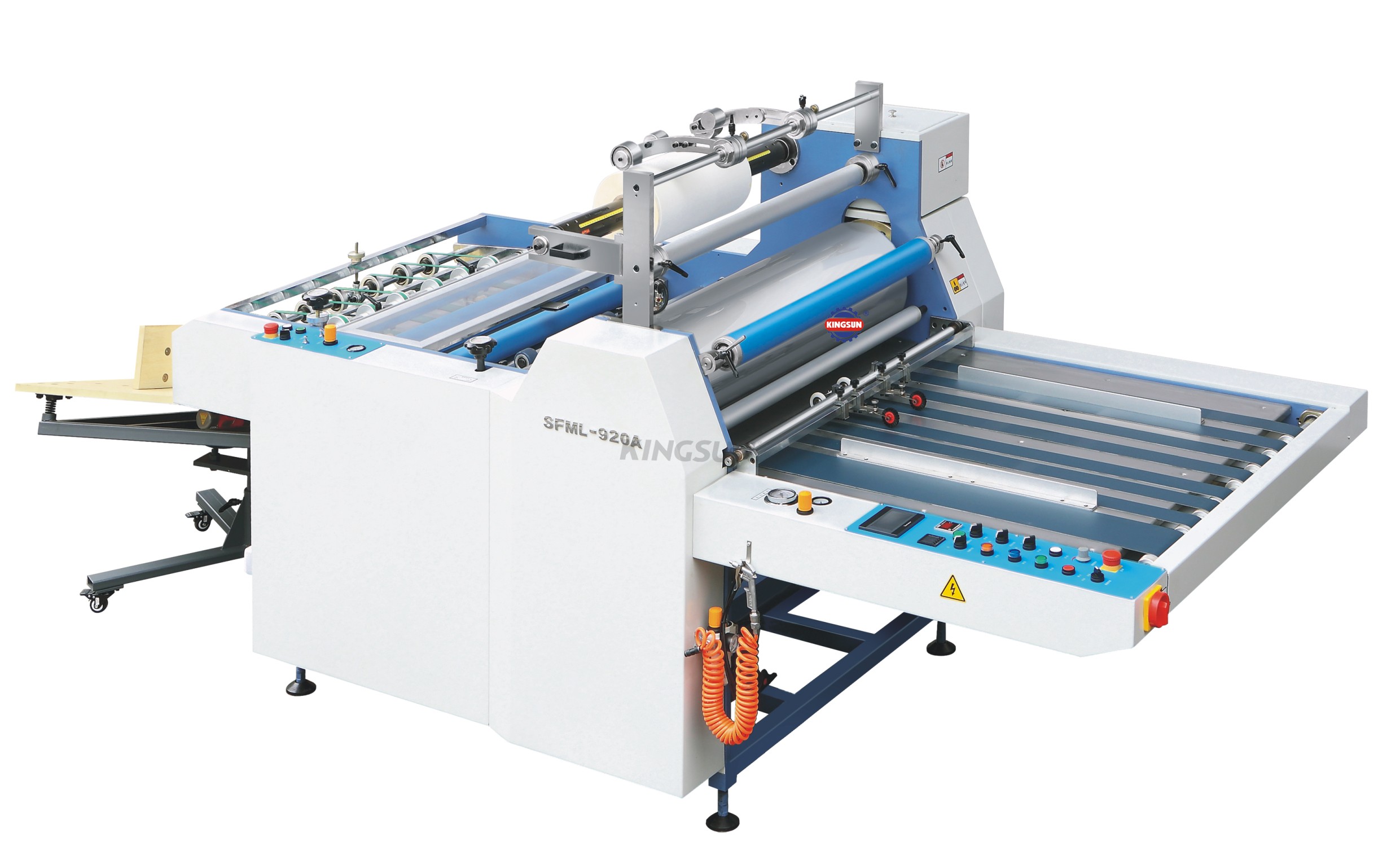

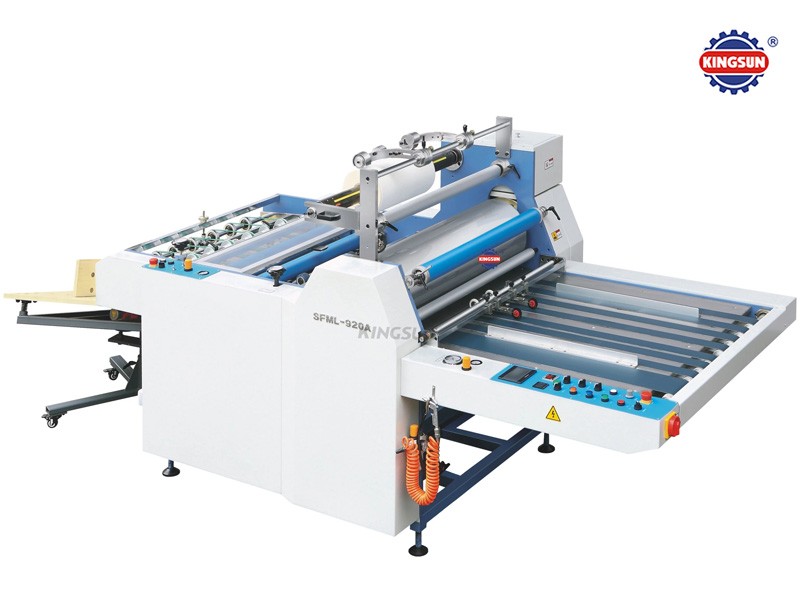

SFML-A Series Thermal Laminator Machine

SFML-A Series Thermal Laminator Machine

This series thermal laminating machine is improved model of semi-automatic laminating machine.

This series thermal laminating machine is improved model of semi-automatic laminating machine.

Features:

1, With SCHNEIDER PLC programming control system.

2, Φ320 chromed roller with built-in oil heating system, the temperature is more uniform and stable, excellent temperature control performance.

3, Air shaft for film unwinding, film loading and unloading is convenient, accurate positioning, and film tension can be adjusted according to working speed.

4, The punch device in front and backside fit for different specifications of paper and film.

5, Improved traction roller adjustment system to make traction adjustment more convenient and effective.

6, Corrugated paper output system, vibration collection system and other configuration makes delivery paper more convenient and tidy.

Technical specification:

Model

SFML-720A

SFML-920A

Max Paper Size

720mm

920mm

Paper Thickness

100-500g/m2

100-500/m2

Laminating Speed

0-30m/min

0-30m/min

Gross Power

18kw

19kw

Total Weight

1600kg

1800kg

Overall Dimensions

4000x1470x1650mm

4000x1670x1650mm

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
