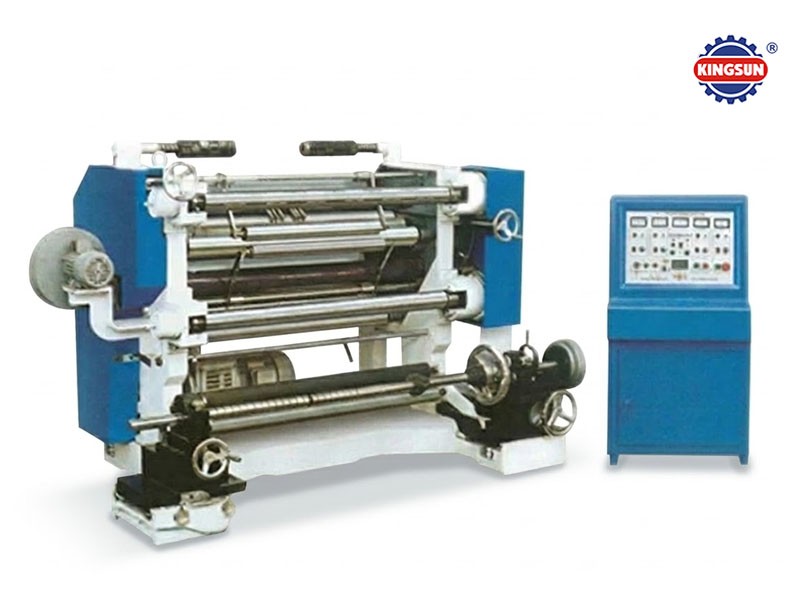

QFJ-A Series Slitting Rewinding Machines

QFJ-A type vertical type slitting rewinding machines are suitable for slit and rewind roll materials such as BOPP, PET, PE, PVC film, aluminum foil, paper or laminated materials.
Product Details
Features
Technical Specifications
Online Inquiry
Video
Related Products

Product Details

QFJ-A Series Slitting Rewinding Machines

QFJ-A type vertical type slitting rewinding machines are suitable for slit and rewind roll materials such as BOPP, PET, PE, PVC film, aluminum foil, paper or laminated materials.

Features

1.Independent control panel for more easy operation.

3.Magnetic powder brake and clutch control tension for unwinding and rewinding.

4.Auto EPC/LPC control system, auto length counting.

5.Equipped with waste edge air-blowing or edge rewinding unit..

6.Air shafts for load and unload materials of unwinding and rewinding.

7.Circle knife structure optional for slitting aluminum foil or paper.

Technical Specifications

Model

QFJ-A700

QFJ-A1100

QFJ-A1300

Master roll width

700mm

1100mm

1300mm

Unwinding diameter

ф600mm

ф600mm

ф600mm

Rewinding diameter

ф400mm

ф400mm

ф400mm

Slitting width

20-700mm

20-1100mm

20-1300mm

Slitting speed

10-150m/min

10-150m/min

10-150m/min

Slit tolerance

±0.5mm

±0.5mm

±0.5mm

Net weight of machine

1900kg

2100kg

2300kg

Overall size(L×W×H)

1.2×1.9×1.27m

1.2×2.3×1.37m

1.2×2.5×1.37m
