This is high speed automatic Litho-Laminator machine, which is designed for cardboard and corrugated board laminating. It is one of high grade carton box converting machine.
kingsungroup
E-mail Us
PDF Download
Video Link

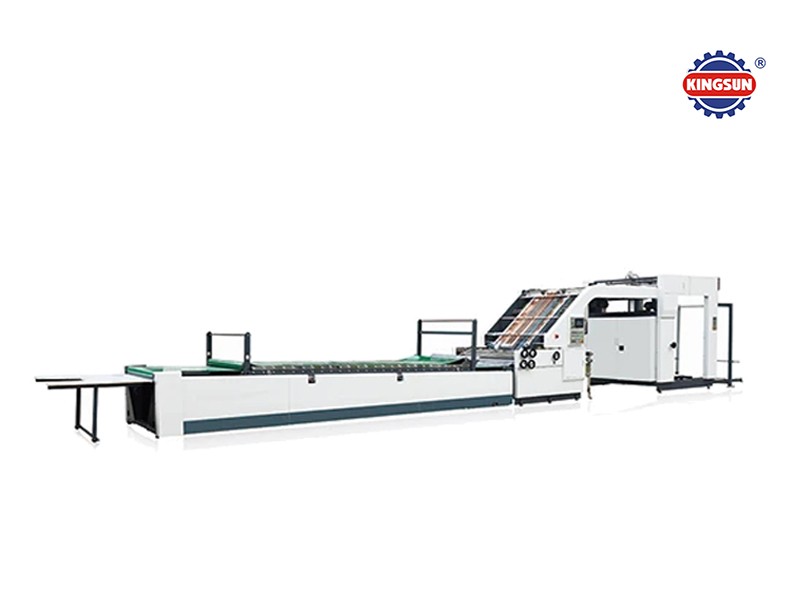

This is high speed automaticLitho-Laminator machine, also called as automatic flute laminating machine, which is designed for printed cardboard and corrugated board laminating. It is one of high grade carton box converting machine.With this machine and single facer corrugation machine,you can make printed color corrugation box for packaging industry.
Main specifications:
|
Model |
KSCS-14145 |
KSCS-16165 |
|
Max. Sheet Size |
1430*1440mm |
1620 *1600 |
|
Min. Sheet Size |
400*400mm |
450*450mm |
|
Max. Weight for Top Sheet |
550g/m² |
550g/m² |
|
Min. Weight for Top Sheet |
157g/m² |
157g/m² |
|
Max. Thickness of Bottom Sheet |
10mm |
10mm |
|
Min. Thickness of Bottom Sheet |
0.5mm |
0.5mm |
|
Max. Laminating Speed |
150m/min |
150m/min |
|
Lamination precise |
+/-1.5mm |
+/-1.5mm |
|
Total power |
22KW |
22KW |
|
Overall dimensions（L*W*H） |
15000*2250*2350mm |
15600*2450 *2350 |
|
Total weight |
7500kg |
8500kg |
Please write more details of your specific requirement, so our sales team can provide you right machine you need.
