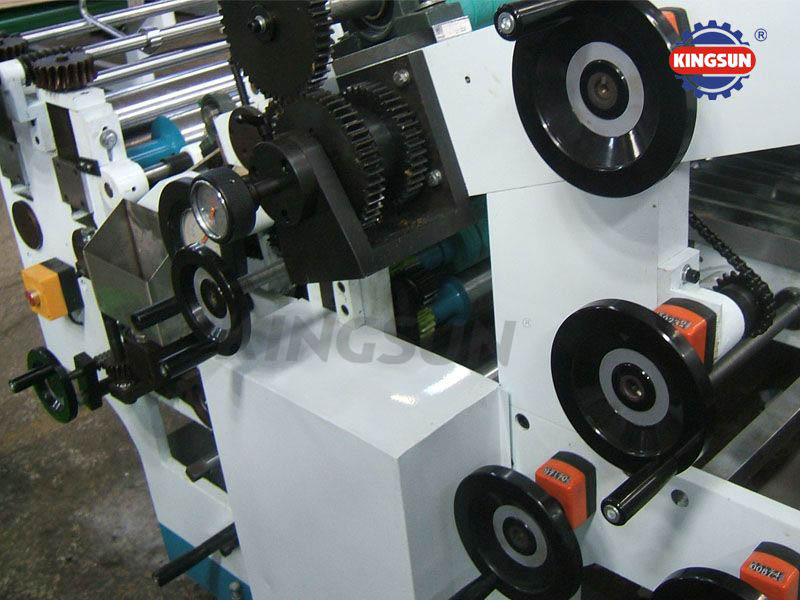

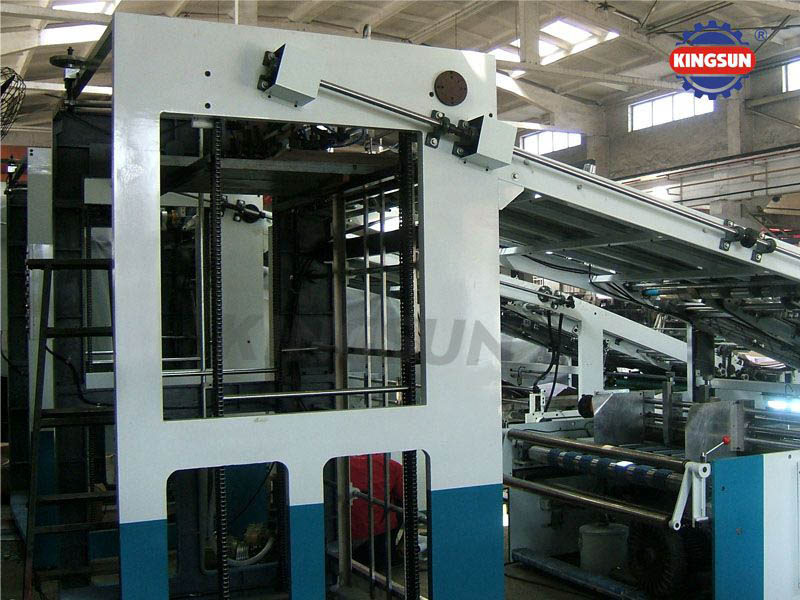

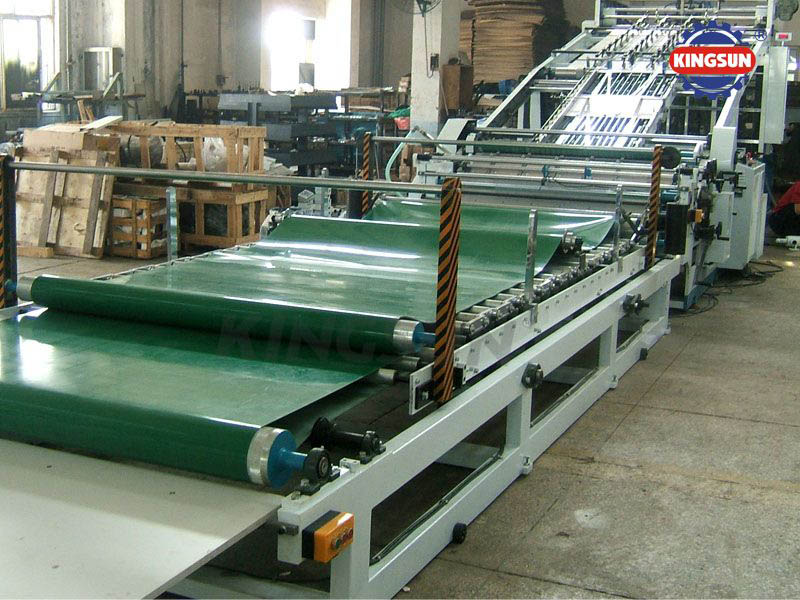

AFL Series Automatic Flute Laminator

AFL series automatic flute laminator machines fit for paper board laminate with corrugated board for packaging usage. High precision, easy for operation and save labor cost, it is necessary equipment for carton packaging production.

AFL Series Automatic Flute Laminators, Litho Laminators

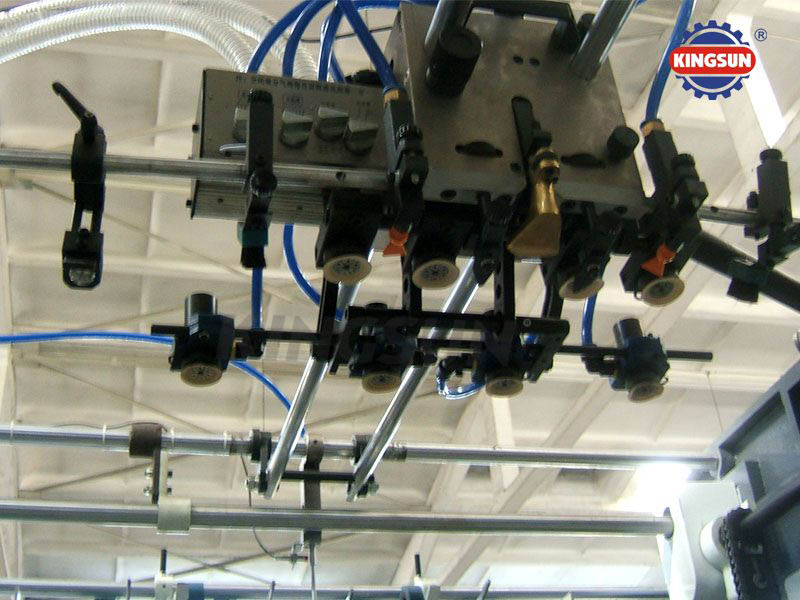

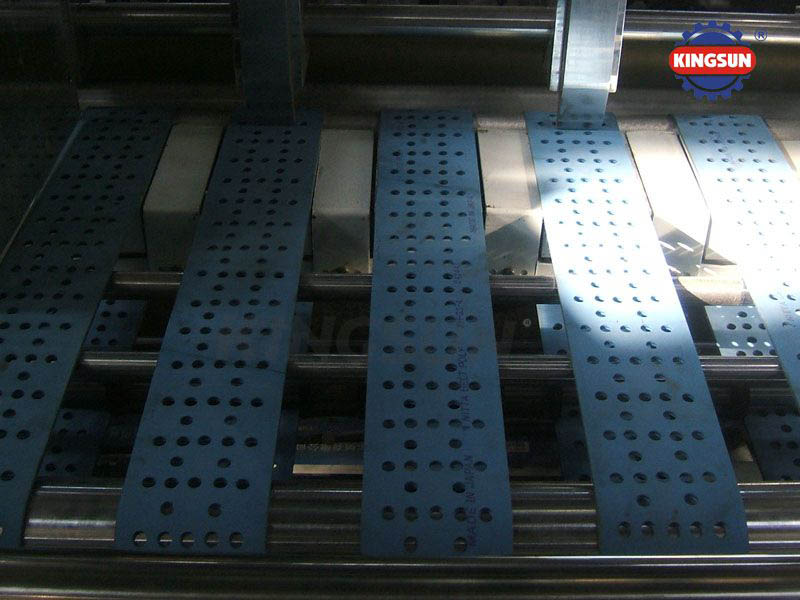

1.AFL Series Automatic Flute Laminator adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.

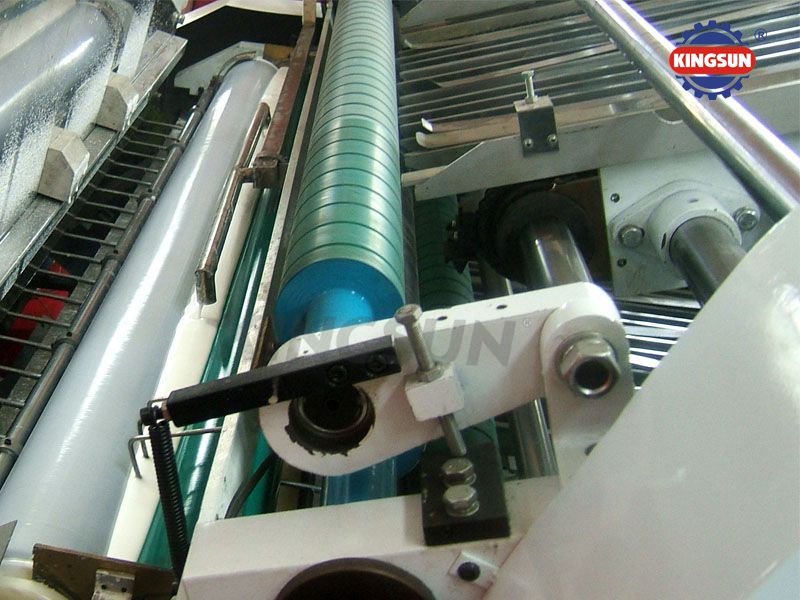

2.The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.

3.Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine run at low noise with high precision.

4.The machine adopts automatic glue supply and recyclable glue circulating system.

5.Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.

6.All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.

7.The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.

Specifications:

Model

AFL-1300

AFL-1450

AFL-1600

Maximum size

1300×1100mm

1450×1100mm

1600×1450mm

Minimum size

350×350mm

350×350mm

450×450mm

 Laminate precision

≤±1.5mm

≤±1.5mm

≤±1.5mm

Speed

6000Sheets/h

6000Sheets/h

6000Sheets/h

Total power

12kw

12kw

13kw

Length

12.5m

12.5m

15m

Total weight

6.8T

7.2T

8.0T

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
