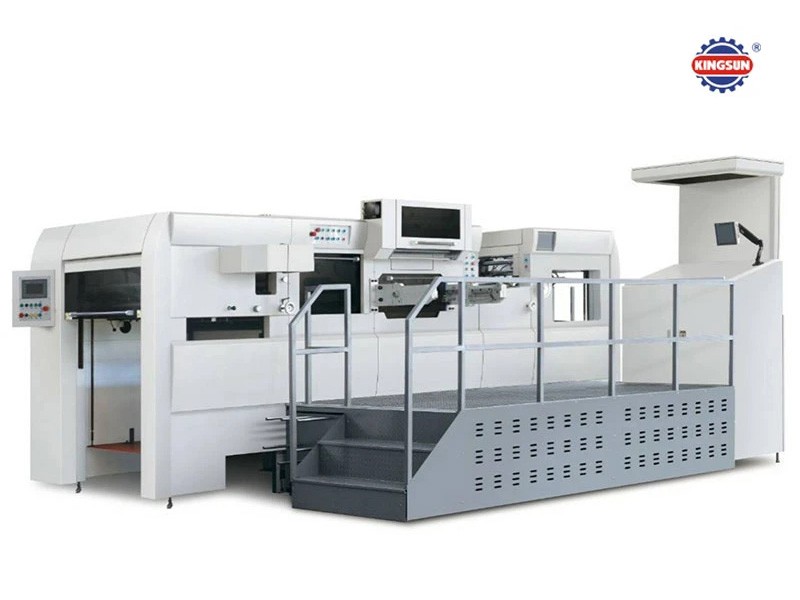

KHD Series Automatic Hot Foil Stamping Die Cutting Machine

KHD Series Automatic Hot Foil Stamping Die Cutting Machine

KHD series automatic hot foil stamping and die-cutting machines,is kind of the newest model for high grade post printing finishing, it can efficiently complete the hot stamping, die cutting and embossing of paper products, to realize the highest precision and finish product quality

KHD series automatic hot foil stamping machine and die-cutting machines

It is kind of the newest model for high grade post printing finishing, it can efficiently complete the hot stamping, die cutting and embossing of paper products, to realize the highest precision and finish product quality. This type machine is especially for high quality required printing house or packaging converting company.

Main Features:

1. Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.

2. Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch, to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.

3. The whole machine all uses SKF\NSK imported original bearing.

4. The whole machine uses original parts imported from France Schneider, Japanese OMRON, and Japanese Mitsubishi etc.

5. Key parts of teeth row are imported from Japan.

6. Die cutting and hot foil stamping accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.

7. The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

8. Use the centerline positioning system to realize fast plate changing of worksheet.

9. Equipped with first-developed pressure servo control device, ensure fast and smooth when they adjusting of die cutting pressure.

10. Adopts touch-screen operation interface in both Chinese and English or other language.

11. All adopts Taiwan AIRTAC pneumatic components to ensure every pneumatic action performs accurately.

12. Adopt double-sheet detector.

13. The paper collection platform machine is equipped with automatic auxiliary paper collecting mechanism and operate without stopping the machine.

14. The side gauge adopts photoelectric system.

15. Adopt automatic refueling system.

16. The oil pump adopts automatic cooling fan device.

Main specifications:

Max. sheet size

1050×750mm

Min. sheet size

400×360mm

Max. die cutting size

1040×720mm

Max. hot stamping size

1040×720mm

Gripper margin

9-17mm

Dimension of inner plate frame

1080mm×745mm

Paper thickness range

80~600g/㎡(Card paper)

≦4mm(Corrugated paper)

Precision of die cutting

≤±0.1mm

Max. working pressure

300 tons

Max. working speed

7500 S/H for die cutting

Max. paper feeding stacking height

1600mm(Including wooden pallet)

Max. paper collecting stacking height

1400mm(Including wooden pallet)

Max. gold foil diameter

25cm(Longitudinal) 25cm(horizontal)

Electric-heated system

20 temperature zone,

40-180℃ adjustable

Foil width

20-1020mm

Main motor power

11kw

Whole machine dimension

L:7700mm(Including pre-feeding track)

W:5200mm(Including the pedal)

H:2600mm

Total weight

about 18.5 tons

Whole power

52kw
