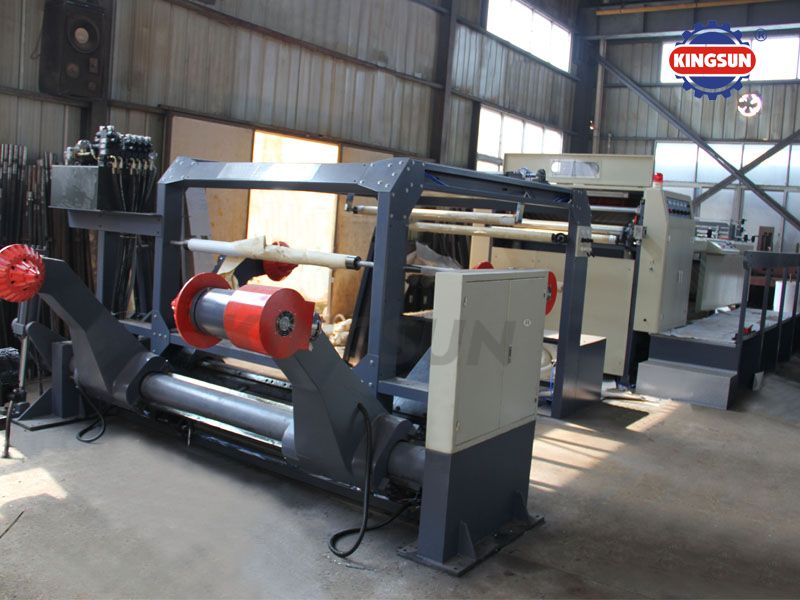

HQJ-E Series Servo Control Rotary Knife Paper Sheeting Machines

Kingsun Series jumbo roll paper sheeting machine, designed for sheet cutting of copy paper, kraft paper, paper board and laminates etc. We choose world famous brand electric components and latest technology machine processing center to produce the precision mechnical parts to keep the high level quality, this industrial paper sheeting machine is excellent for paper cutting company, paper trading company to covert the paper roll into sized pallet sheet paper.

HQJ1400E+1700E Computerized Servo Control Rotary Knife Paper Sheeting Machines

Features:

1.The control system includes the British TRID motion controller, the United States EMERSON PLC, Taiwan HITECH touch screen and the other components.

2.The computer control system uses the world-class Japan brand YASKAWA servo motor, driver and Japan AC inverter; the key parts use imported famous components.

3.It features of fast cutting speed and stability.

4.Equipped with German precise bearings and cutting knives, high precision, long service life.

5.The touch screen computer control, nice and easy for operation.

6.With reasonably designed anti-curve rack, well ensures the smoothness of paper.

7.The unwinding is hydraulic lifting, no core clamping, and automatic tension control.

8. This series paper sheeting machine with high precision, easy for operation and maintenance, excellet for paper converting company or packaging & printing house production.

Technical specifications:

Paper thickness

60-600g

Cutting accuracy

±0.3mm/1200mm

Max cutting frequency

300sheets/min

Max. cutting speed

300m/min

Cutting length range

450-1450mm

Max. roll diameter

(65”) 1650mm

Max. cutting width

1400/ 1700mm

Pallet stacking height

1200mm

Overall dimensions

10600 x 3800 (4100) x 2100mm

Weight

12000kg/ 14000kg

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
