HQJ-1400B-2 Series Jubmo Roll Cardboard Paper Sheeting Machines

  • HQJ-1400B-2 Series Jubmo Roll Cardboard Paper Sheeting Machines
  • HQJ-1400B-2 Series Jubmo Roll Cardboard Paper Sheeting Machines
  • HQJ-1400B-2 Series Jubmo Roll Cardboard Paper Sheeting Machines

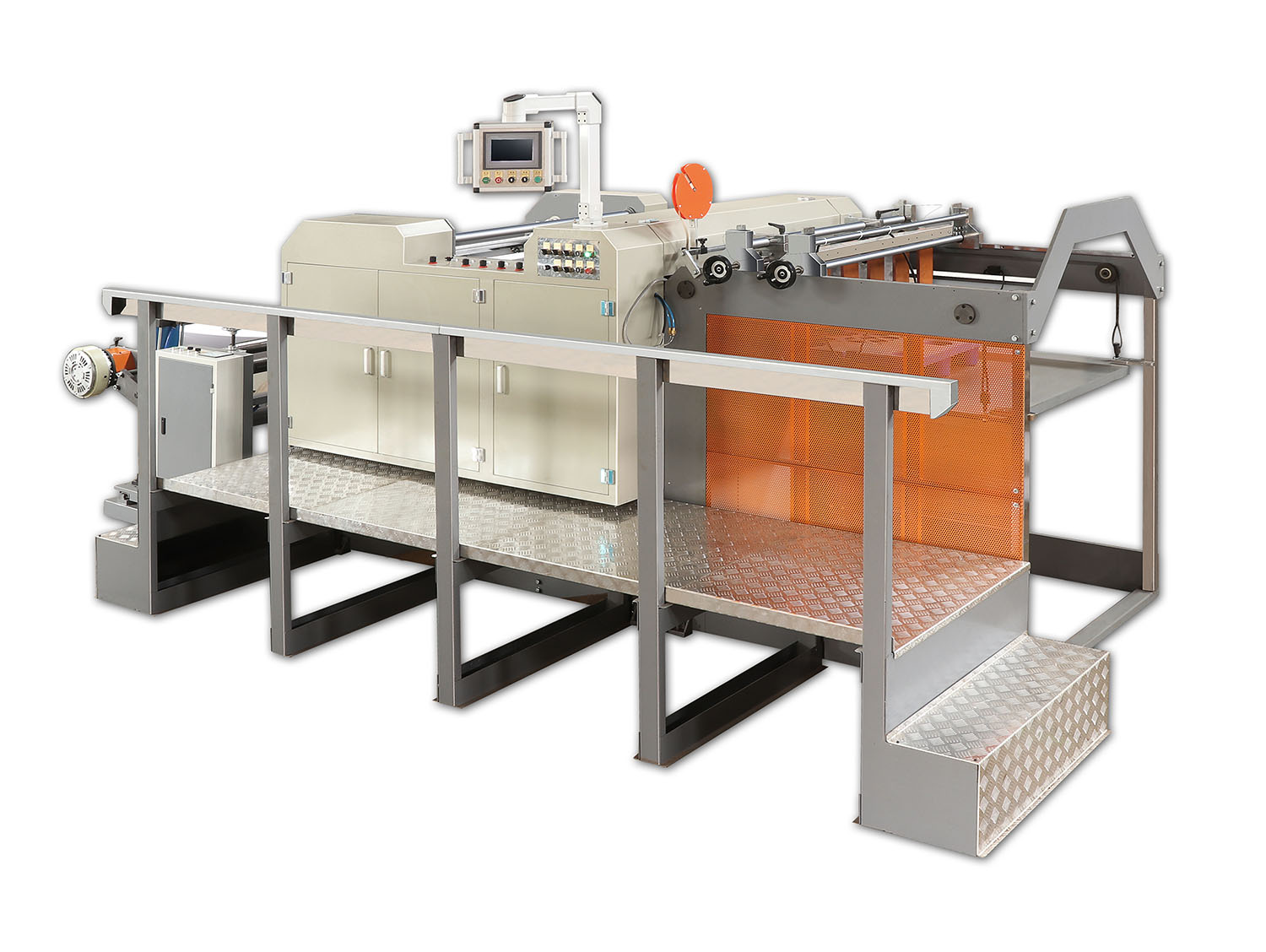

HQJ-1400B-2 Series Jubmo Roll Cardboard Paper Sheeting Machines

This paper sheeting machine is suitable for sheet cutting of jumbo rolls of paper, such as self-adhesive paper, card board, printed materials, paper-plastic laminates. The knfie is cutting up and down, so it is very precision, the finish cut paper can put directly to offset printing machine, low cost equipment and best choise for small middle level quantity paper converting.

This paper sheeting machine is suitable for cross-cutting of large rolls of paper, such as various Kraft paper, self-adhesive paper, gold and silver card board, color printing laminated materials, paper-plastic laminates. It is widely used in paper products converting or printing & packaging industry.

Features:

1. The sheeting machine is running fast, high precision, cross-cut without burrs, after cut the paper can be directly loaded onto the high-end printing machine;

2. The sheet cutting machine runs stably, with full computer touch screen control, simple operation and convenient for maintenance;

3. Economic investment, it is an ideal paper sheeting equipment for inside printing house use.


Main technical specifications:

Model
 HQJ-1100B-2
HQJ-1400B-2
HQJ-1600B-2
Max. Cutting Width
1100MM
 1400MM
1600MM
Max. Unwinding Diameter
 1500MM
Thickness Range of Paper
 30-600GSM
Max. Sheeting Speed
 180 CUTS/MIN
Max Feeding Speed
 180M/MIN
Cutting Length Range
 ≤1500MM
Cutting Precision
 ≤±0.2MM
Max. Piling Height
 1300MM
Air Source Pressure
 0.8MPA
Total Power
 6-10KW
Gross Weight
 4-6 TONS
Overall Dimension L x W x H
 5300 X 1500–2500 X 1850MM


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
