China Holographic Film Making Machines,Hologram Embossing machines Manufacturer, Supplier

Product Details

Features:

This hologram embossing machine aimed to transfer the master pattern which from the nickel metal onto the film such as BOPP, PET (coated), CPP and PVC, film thickness ranges from 12 to 200um; this machine and the electroforming machine able to make different kinds of patterns (artwork).

This machine is PLC controlled, quick to change different plate roller without oil leakage, no affecting on master plate seam during heating and embossing, no wrinkling and shrinking in the process of embossing.

FAQs

F

How can I get these different finished effected holographic films?

We have full equipment from the very beginning of master making, including dot matrix master maker, recombination machine, electroforming machine; from this equipment we can get the working shim that with specific designs on it, after processing through the embossing machine we can get the different finished effect then.

F

What’s main material can be processed by this holographic film embossing machine?

The holographic film embossing machine works for BOPP, PET, CPP glitter.But PET must be coated firstly then for embossing.

F

Can holographic film embossing machine be customized for specific designs or patterns?

Yes, you can have different designs on the working shim that will be mounted on the embossing roller then, so that after embossing we can get various finished effected holographic films.

Main Specifications

Model	800	1200
Embossing width	880mm	Model	800	1200
Roller circumference	330mm	Embossing width	880mm	1200mm
Working speed	60m/min	Roller circumference	330mm	520mm
Diameter	500mm	Working speed	60m/min	60m/min
Total power	15kw	Diameter	500mm	500mm
Voltage	380V	Total power	15kw	18kw
Air pressure	4.5kg	Voltage	380V	380V
Machine dimension	2.2 x 2.6 x 1.17M	Air pressure	4.5kg	4.5kg
Machine weight	1500kg	Machine dimension	2.2 x 2.6 x 1.17M	2.2 x 2.6 x 1.17M
		Machine weight	1500kg	3500kg

FAQs

F

What’s main material can be processed by this holographic film embossing machine?

The holographic film embossing machine works for BOPP, PET, CPP glitter.But PET must be coated firstly then for embossing.

F

How can I get these different finished effected holographic films?

We have full equipment from the very beginning of master making, including dot matrix master maker, recombination machine, electroforming machine; from this equipment we can get the working shim that with specific designs on it, after processing through the embossing machine we can get the different finished effect then.

F

Can holographic film embossing machine be customized for specific designs or patterns?

Yes, you can have different designs on the working shim that will be mounted on the embossing roller then, so that after embossing we can get various finished effected holographic films.

Inquiry Now

Please fill out the form below as best you can, our team will reply you within 24 hours.

*Name
Tel
*Email
Company
*Country
Address
*Message

Products

Holographic Film Soft Embossing Machine

Product Details

Features:

FAQs

How can I get these different finished effected holographic films?

What’s main material can be processed by this holographic film embossing machine?

Can holographic film embossing machine be customized for specific designs or patterns?

Main Specifications

FAQs

What’s main material can be processed by this holographic film embossing machine?

How can I get these different finished effected holographic films?

Can holographic film embossing machine be customized for specific designs or patterns?

Inquiry Now

Video

Related Products

KDZ-1200 Holographic Nickel-plate Electroforming Machine

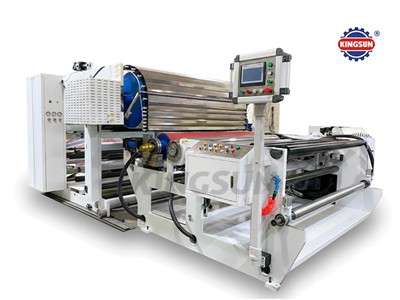

KLJ-1200 PVC/ PP/ EVA Glitter Film/ Multi-lens Embossing Machine
