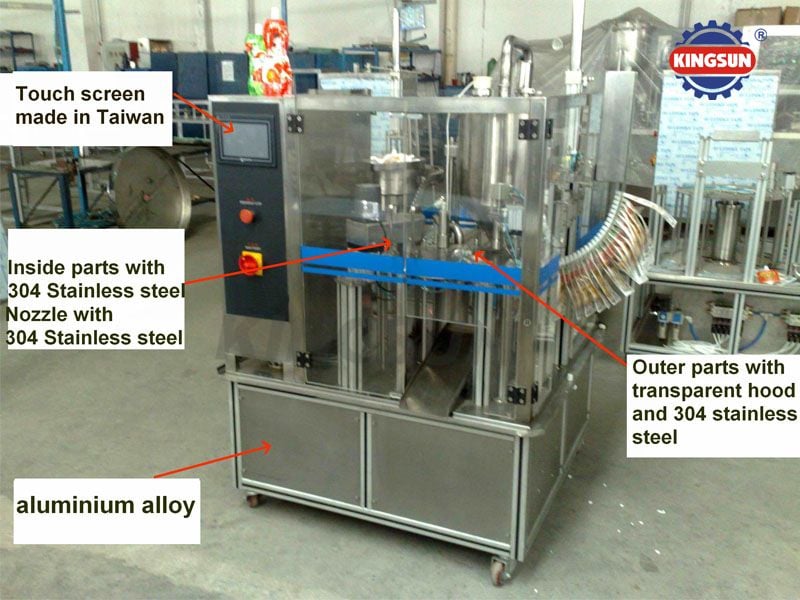

ZPZD-1200 Stand-up Pouch Liquid Filling and Capping Machines
Product Feature:

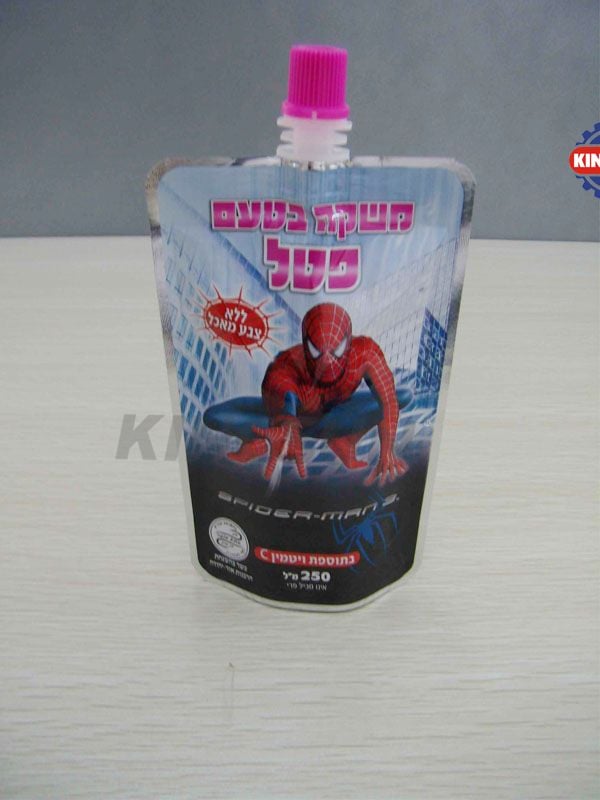

The machine is used to fill stand-up pouch with suck-able jelly, water, juice, milk, oil and other liquid type material. It can automatically finish all the process of pouch feeding, filling, pouch opening cleaning, cap neatening, capping and finished product output etc.
Technical Specification:
|
Model |
ZPZD-1200 |
|
Productivity |
800-1200 bags /hour |
|
Filling Volume |
100-400ml |
|
Filling Accuracy |
±1.5% |
|
Power Supply |
220V/50Hz |
|
Maximum Power |
0.5KW |
|
Air Supply |
≥0.6KPa |
|
Air Consumption |
0.3M3/min |
|
Machine Weight |
200kg |
|
Overall Dimensions |
1000 x 1000 x 1500mm |
