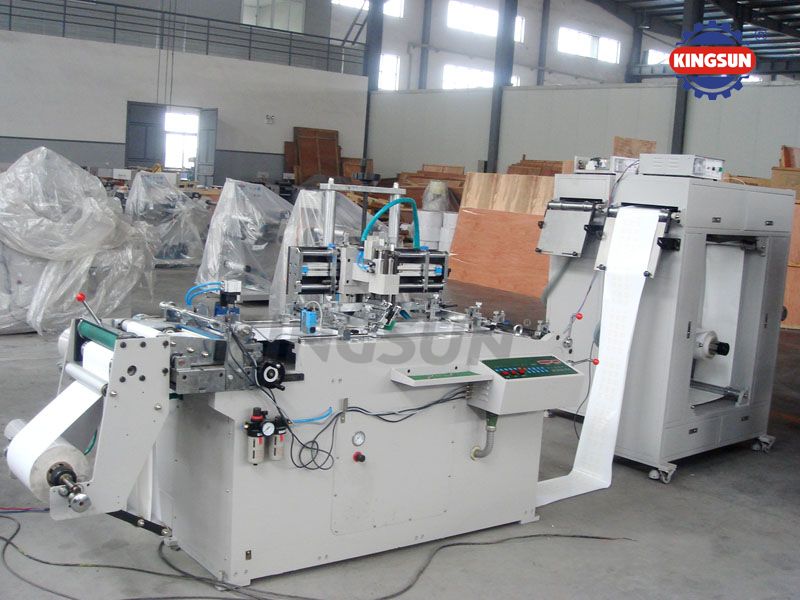

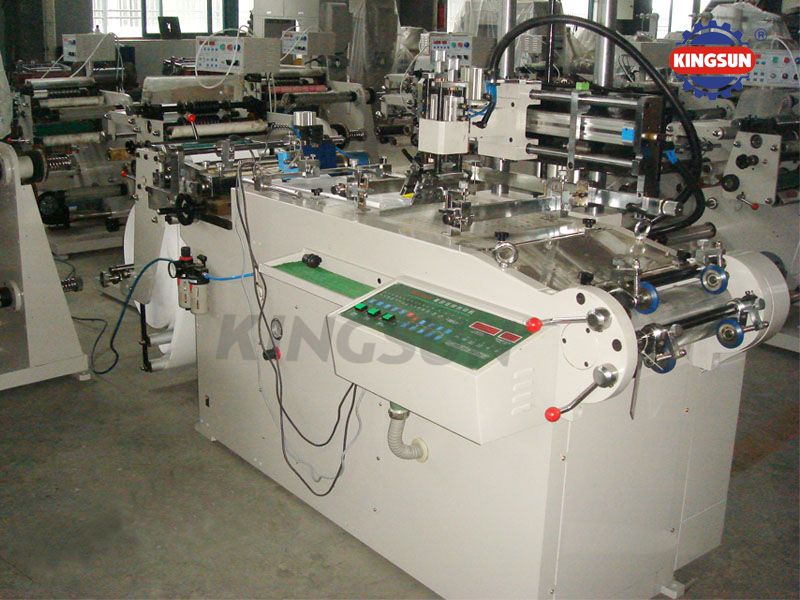

WQ-320 Model Lable Screen Printing Machine

This machine is used for printing on reel material such as PVC,OPP,Nylon,hologram label,adhensive label sticker,etc. the material feeding of this machine is controlled by servomotor,the main drive part adopted the pneumatic device,and the printing position is followed and controlled by photocell.

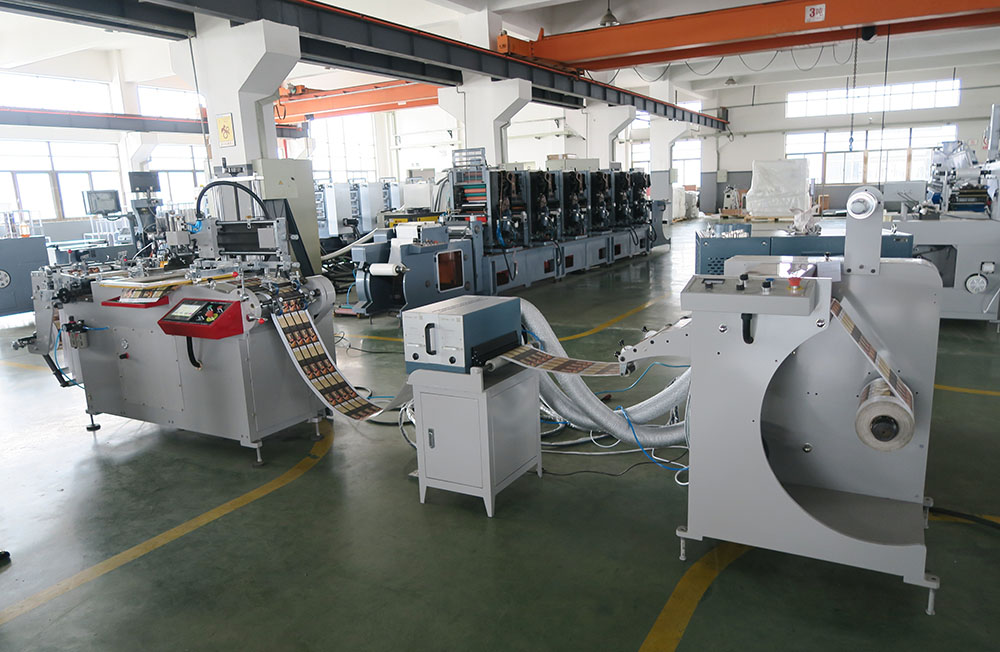

WQ-320 Model Label Screen Printing Machine, UV dryer custom made

Features of label screen printer:

This model label screen printing machine is used for printing on reel to reel material such as PVC,OPP,Nylon,hologram label,adhensive label sticker,etc. the material feeding of this machine is controlled by servomotor,the main drive part adopted the pneumatic device,and the printing position is followed and controlled by photocell. the machine has the characteristic of high accurate of color register,steady material-feeding,automatic counter and alarm,convenient adjust and compact structure,etc.

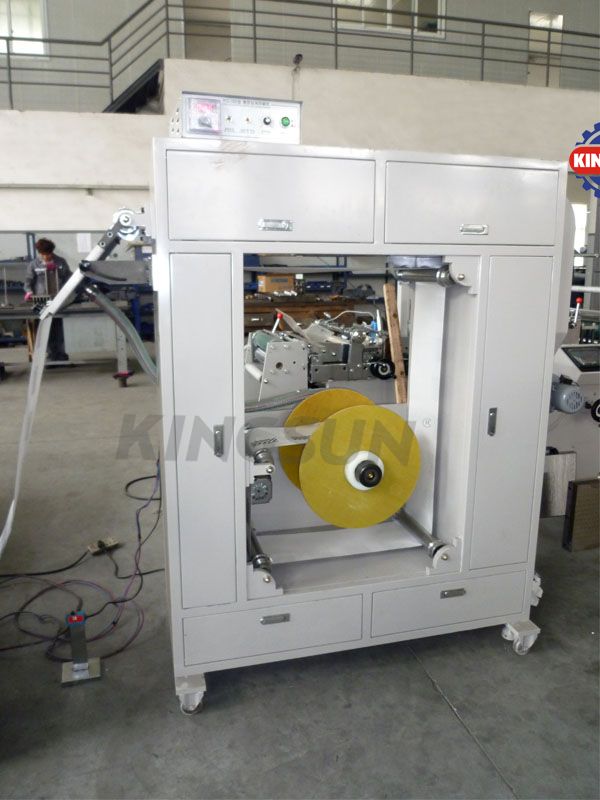

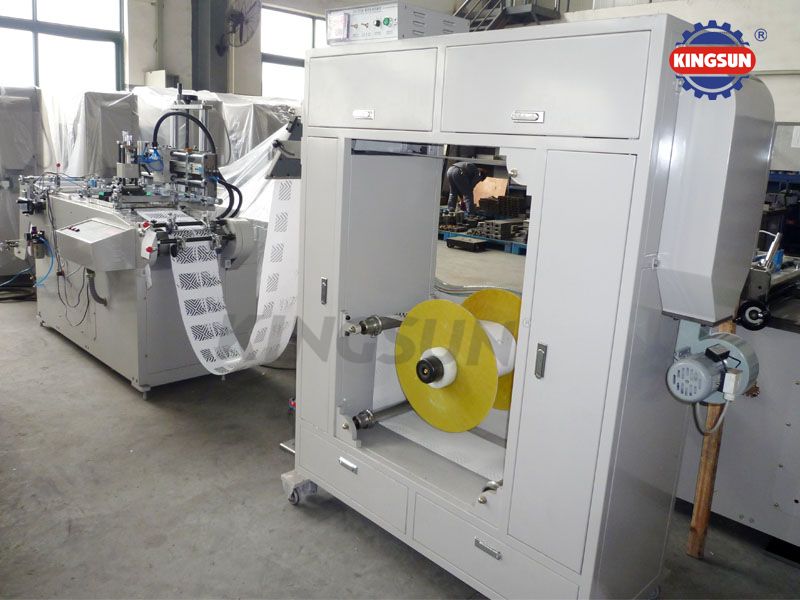

Option:UV dryer and independent rewinding unit

Main specifications:

Model

WQ-320

Printing speed

10-50m/min

Max. web width

320mm

Max. printing width

300mm

Max. printing length

320mm

Max. unwinding diameter

450mm

Printing repeat length

175-355mm

Precision of color register

±0.15mm

Main motor power

1.2kw

Oven power

4.1kw

Air pressure needed

4.5-6kg/c㎡

Main machine dimension

2.4x0.95x1.5m

Overall dimensions

1.75x0.6x1.8m

Weight

About 1100kg
