This semi-automatic model hard case making machine is suitable for making a variety of notebooks, photo books (albums), lever arch file folder, certificate, hardcover books etc, Simultaneously on both sides of the wrapping, with two times completed for case pasting, one person operation, simple and small working space, especially fit for post digital printing.
kingsungroup
E-mail Us
PDF Download
Video Link

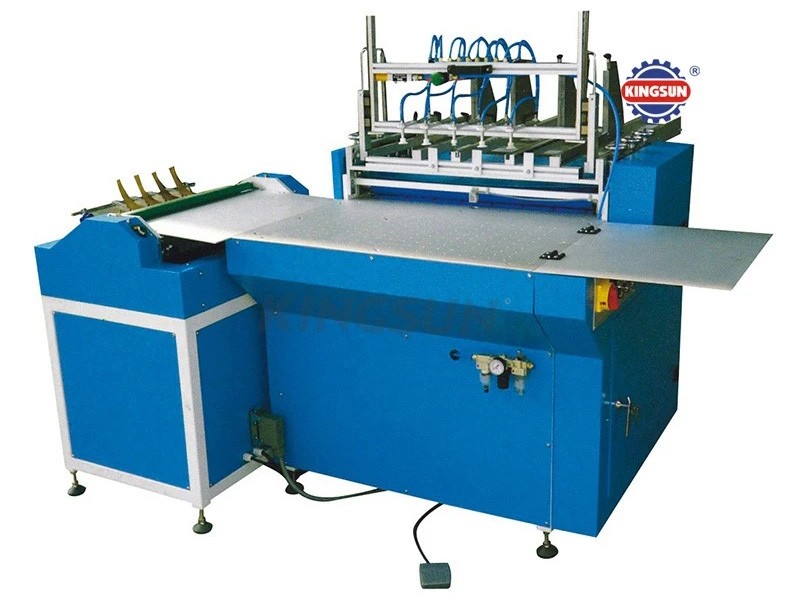

Semi-automatic model hard case making machines
This semi-automatic model hard case making machine is suitable for making a variety of notebooks, photo books (albums), lever arch file folder, certificate, hardcover books etc, Simultaneously on both sides of the wrapping, with two times completed for case pasting, one person operation, simple and small working space, especially fit for post digital printing. Using PLC operating system, it can use hot adhesive or white glue. Replacement products easily and quickly. Pneumatic for foot pedal switch, automatically send cardboard, manual adjust the setting size.
Advantage: can make any size for common use,less investment, easy for operation and fit for small-medium quantity production.
Main specifications:
|
Model |
MHC-500 |
|
Voltage |
380V/50HZ |
|
Total power |
5.2KW |
|
Speed |
3-6PCS/MIN |
|
Max case size |
800 X 450MM |
|
Min case size |
150 X 150MM |
|
Out dimensions |
1.78 X 1.62 X 1.40M |
|
Paper thickness |
80-175GSM |
|
Machine weight |
550KG |
