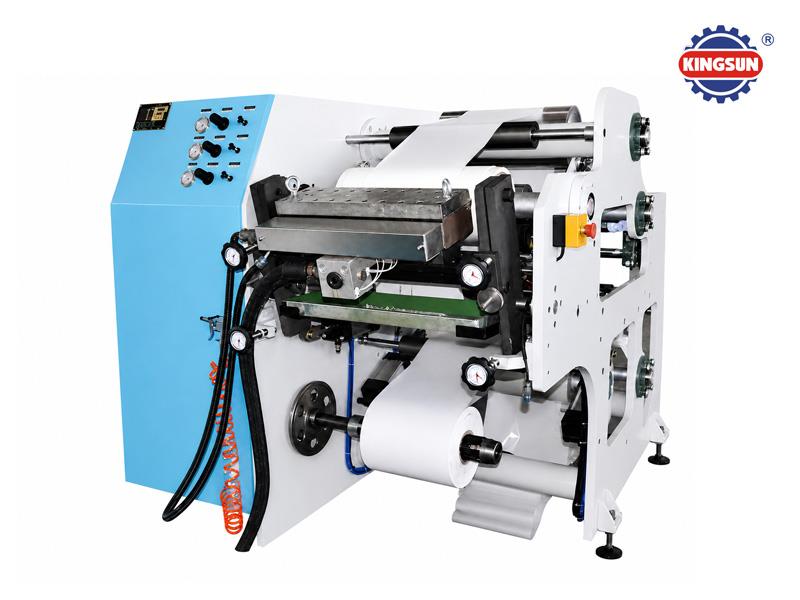

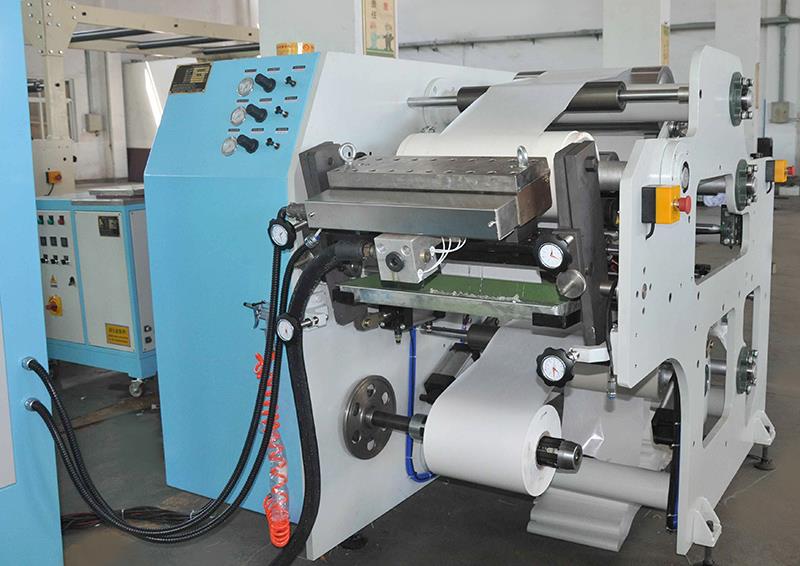

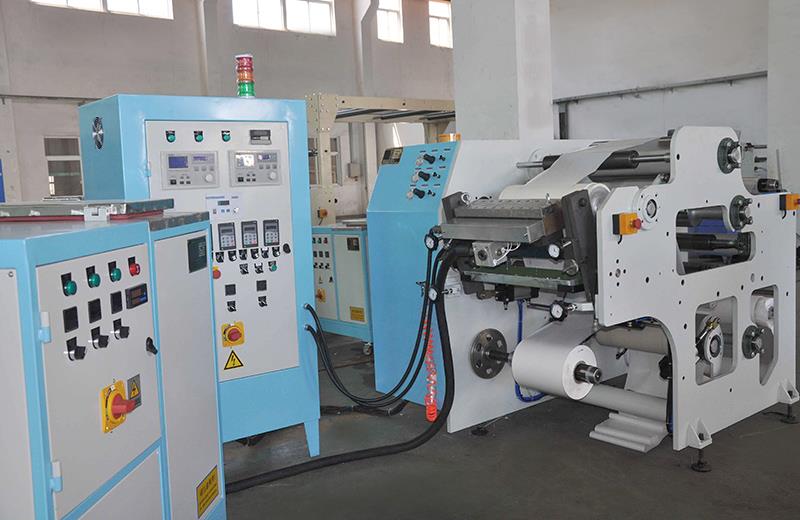

RT-350 Hot Melt Coating Machine
This is narrow width hot melt adhesive coating machine, which special designed for small size with compact structure.
- Introduction
- Main Technical Specifications
- Online Inquiry
- Video
- Related Products
Introduction
1. Suitable products: Hot melt pressure-sensitive adhesive products
2. Hot melt adhesive type: pressure-sensitive adhesive
3. The main process: no scratch coating
4. Main technical process:
Unwinding --Coating--Chilling--Laminating--Rewinding
Main Technical Specifications
- The coating method: No scratch coating
- Effective coating width: 350mm
- Coating volume: 12--50g / ㎡
- Evenness: 20-45g / ㎡≤±2g
- Maximum machine speed: 0-100m/min
- All roller length: 400mm
- Max unwinding diameter: 600 mm
- Max rewinding diameter: 700mm
- Unwinding device: 2 set
- Rewinding device: 1 set
- Rewinding tension: ≤25n
- Unwinding tension: ≤25n
- Hot melt adhesive extrusion volume: 60kg/h
- Soft adhesive pipe: 3m
- Max temperature: 230℃
- Machine power: About 20Kw
- Electric power: 380V±15% 50Hz
- Air source: o.6—0.8mpa
- Water source: 0.15-0.4mpa
- 20: The amount of glue is synchronized with the main machine speed, or can be adjusted independently
