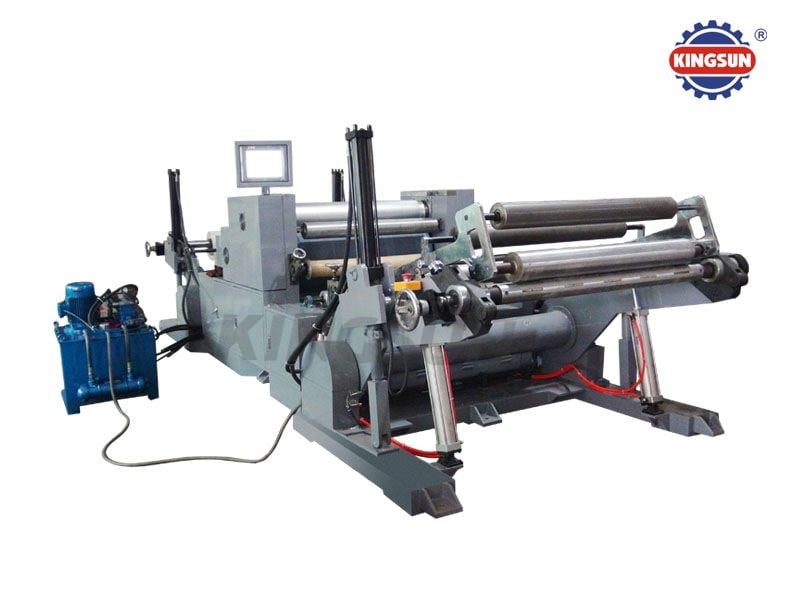

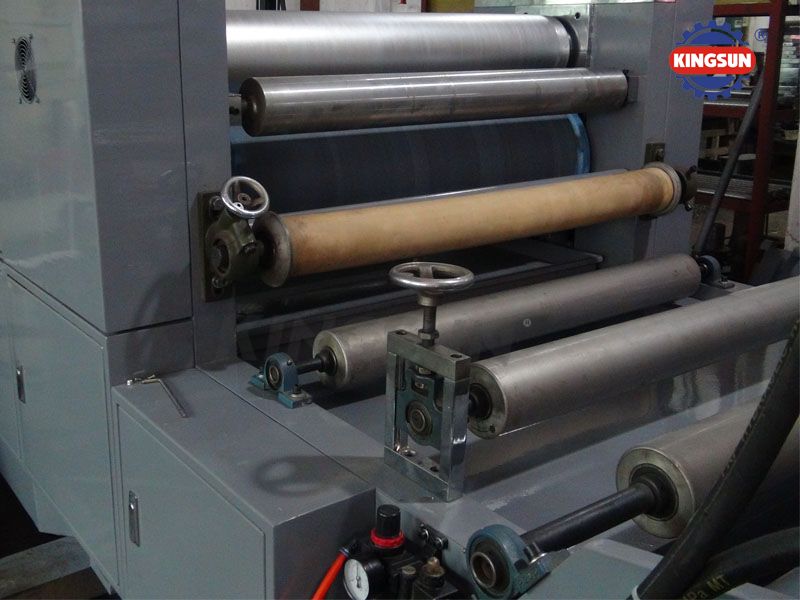

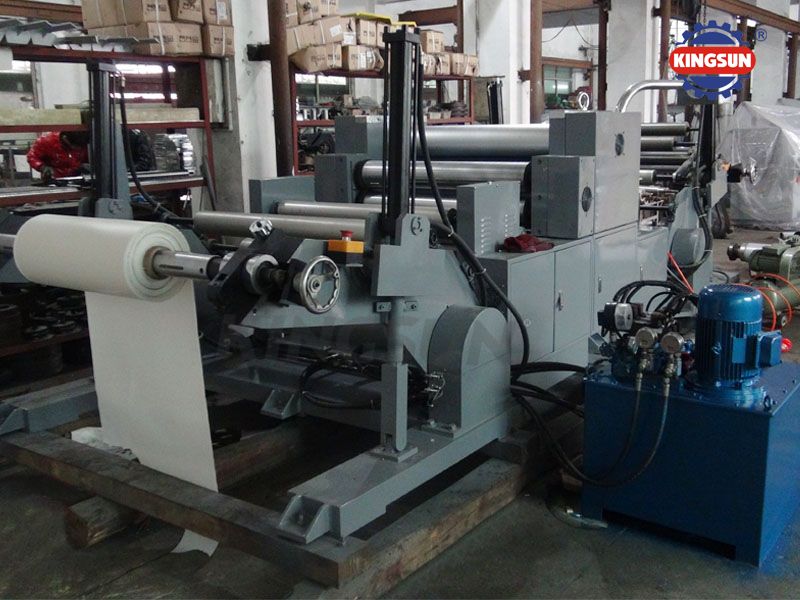

Roll-type Paper Embossing Machine

This paper embossing machine is suitable for embossing all kinds of paper,special paper,aluminum foil etc.The weight of material is 30-400g.

Roll-type Paper Embossing Machine

Introduction:

This paper embossing machine is suitable for embossing all kinds of paper,special paper,aluminum foil etc.The weight of material is 30-400g.

Features:

1.automatic hydualic lift device to make the operation easier

2.automatic tension control for unwinding and rewinding

3.Man-machine interface

Technical Specification:

Model

RYW-920A

RYW-1150A

RYW-1300A

Max embossing speed

60m/min

60m/min

60m/min

Max embossing width

920

1150

1300

Paper weight

30-400gsm

30-400gsm

30-400gsm

Operation pressure

2-10Mpa

2-10Mpa

2-10Mpa

Main power

4.0kw

4.0kw

4.0kw

Total power

20kw

22kw

24kw

Air sourve pressire

0.8Mpa

0.8Mpa

0.8Mpa

Dimension

4800x2100x1450mm

4800x2230x1450mm

4800x2520x1450mm

Weight

4500kg

5500kg

6500kg

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
