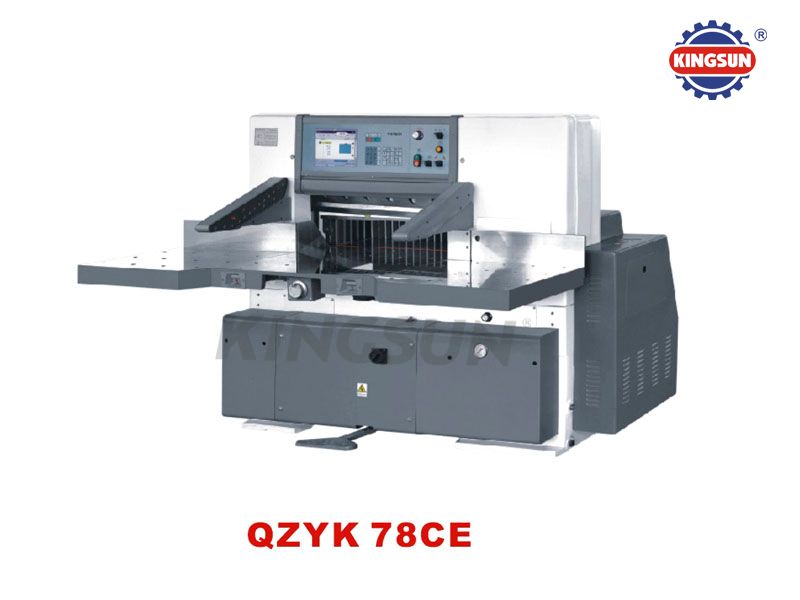

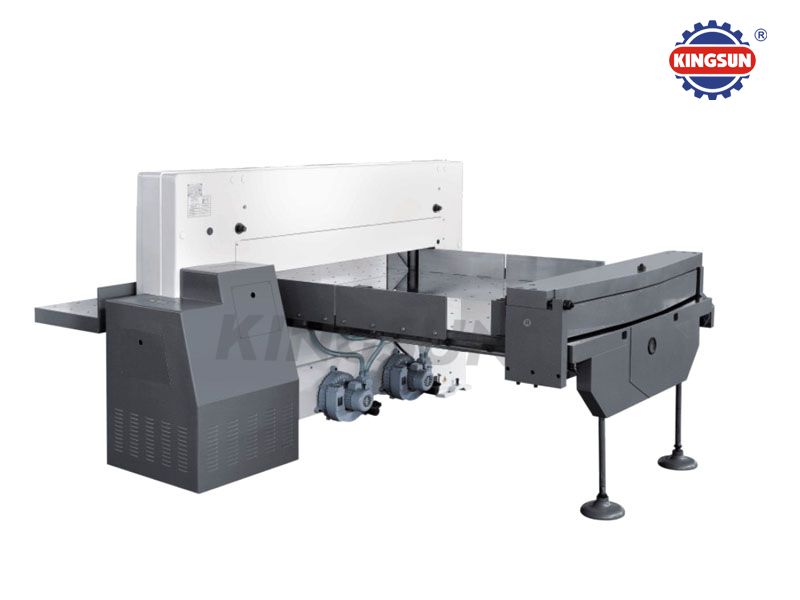

QZYK-CE Computer Programme Control Paper Cutters
This series programmable paper cutters in line with Europe standard, all main componenets imported from Italy and German, so keep the cutters at top level quality.
Features:
Equipped with Japan AC digit servo control system,10.4 inches colorful liquid crystal display screen of resolution rate is 0.01mm, has self-diagnostic function of troubles and displays the operating pattern, It has 100 program units, more than 10000 different cutting position, dynamic cutting display , running situation, dynamic follow-up. The max paper-pushing speed is 5-18m/min; it adopts stronger computer operating system. It can memorize store the storage time can be up to 300000 hours above. It has self maintenance to the operating system. Adopt Italy hydraulic components, Germany Japan and Korean electric components. Taiwan ball lead screw and linear guide-rail are used. PLC controller can monitor all the electrical and mechanical section. Its key parts adopt imported bearing of low maintenance.
Technical specifications:
|
Model |
920 |
1150 |
1300 |
1370 |
1550 |
|
Cutting width |
92cm |
115cm |
130cm |
137cm |
155cm |
|
Cutting height |
13cm |
16.5cm |
13cm |
16.5cm, |
16.5cm |
|
Cutting depth |
92cm |
115cm |
130cm |
145cm |
155cm |
|
Motor power |
3KW |
4KW |
4KW |
5.5KW |
5.5KW |
|
Machine width with table |
233cm |
266cm |
266cm |
287cm |
314cm |
|
Machine length |
198cm |
226cm |
241cm |
259cm |
280cm |
|
Table height |
86.5cm |
89cm |
86.5cm |
91cm |
90cm |
|
Speed |
45/min |
45/min |
45/min |
45/min |
45/min |
|
Dimensions |
225x140x195 |
255x160x215 |
260x153x195 |
280x160x215 |
296x165x215 |
|
Weight |
2900kg |
3900kg |
4600kg |
4800kg |
5000kg |
