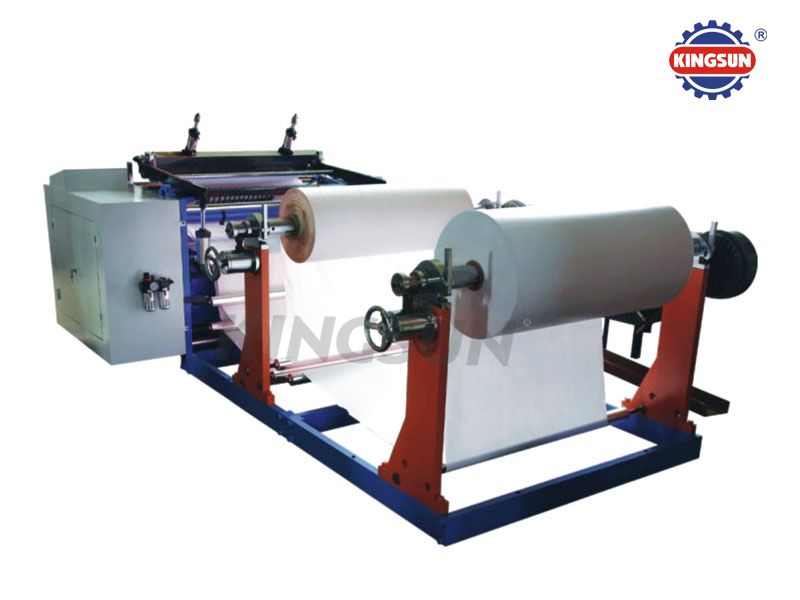

QFJ-N900 Cash register roll fax paper slitter rewinder

Introduction:
QFJ-N900 Thermal Fax Paper Slitter Rewinder is suitable for slitting and rewinding record paper such as fax paper, computer print paper, electro-cardiogram printing paper, cash register roll paper etc
Product Details
Features
Technical specifications
Online Inquiry
Video
Related Products

Product Details

QFJ-N900 Cash register roll, fax paper slitter rewinders

QFJ-N900 Thermal Fax Paper Slitter Rewinder is suitable for slitting and rewinding record paper such as fax paper, computer print paper, electro-cardiogram printing paper, ATM paper receipt roll,cash register roll paper etc

Features

1.Pneumatic paper insert

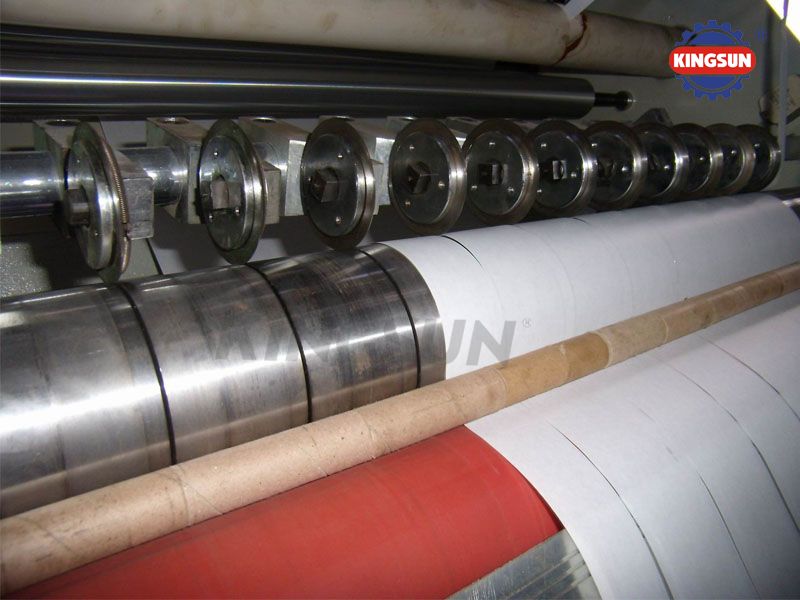

2.Convenience knife adjust

3.Semi-automatic tension control

4.Typing color ribbon before end of roll

5.length counting, frequency converter speed control

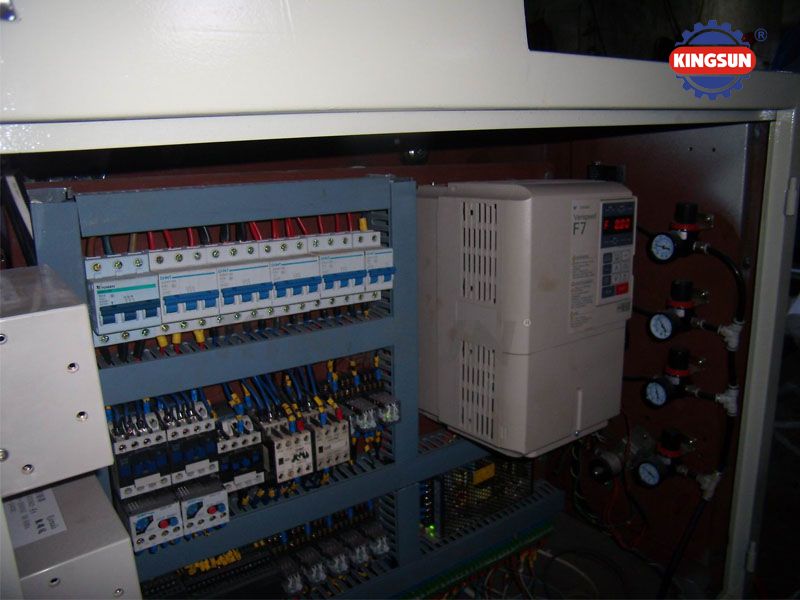

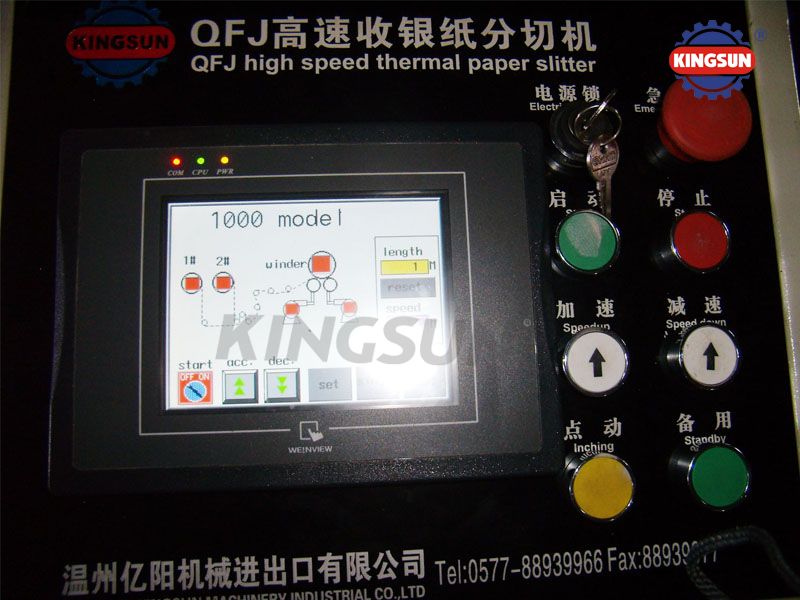

6.PLC control with touch screen

7.Synchronization transmission

8.Suit for different thickness paper

9.Waste edge blower

10.Sucker and blower

Technical specifications

Max material width

1300mm

Thickness of material

10g/ m2~300g/m2

Max diameter of raw material

φ1200mm

Max diameter of rewinding

φ600mm

Error correcting precision

±2mm

Precision of slitting

±0.2mm

Speed

10-200m/min or 300m/min(two model for choose)

Total power

9.5kw

Weight

About 3000kg

Max. slitting width

900mm

Max. unwinding dia.

900 mm

Unwinding paper core dia

76 mm

Slitting width

 37,44,57,75,80.110,210,215mm Etc.

Max. rewinding dia.

200 mm(Some big width roll diameter can reach 300mm)

Rewind paper core inner dia.

0.5 inch,1 inch or special size

Max machine speed

180m/min

Power supply

 5kw

Voltage

 380V,50Hz,3P

Weight

1700KG

Machine dimension

2500×1500×1400mm
