This bridge frame type high speed paper slitting machine is used for slitting and rewinding various jumbo roll paper, such as 30g/m2~500g/m2 non-carbon paper, capacitance paper, kraft paper, Aluminum foil , laminated material , adhesive label stock, coated paper and cardboard, with world latest technology, this slitting machine is fit for large capacity paper converting production.
KSFQ-3000/ KFQ-1600 Model Frame Type High Speed Jumbo Roll Paper Slitting Machine
This gantry frame type paper slitting machine is used for slitting and rewinding various jumbo roll paper, such as 30g/m2~500g/m2 non-carbon paper, capacitance paper, kraft paper, Aluminum foil , laminated material , adhesive label stock, coated paper and cardboard, etc.
It is specially designed for large diameter and big width roll paper, fit for big capacity paper converting production.
Main Features:

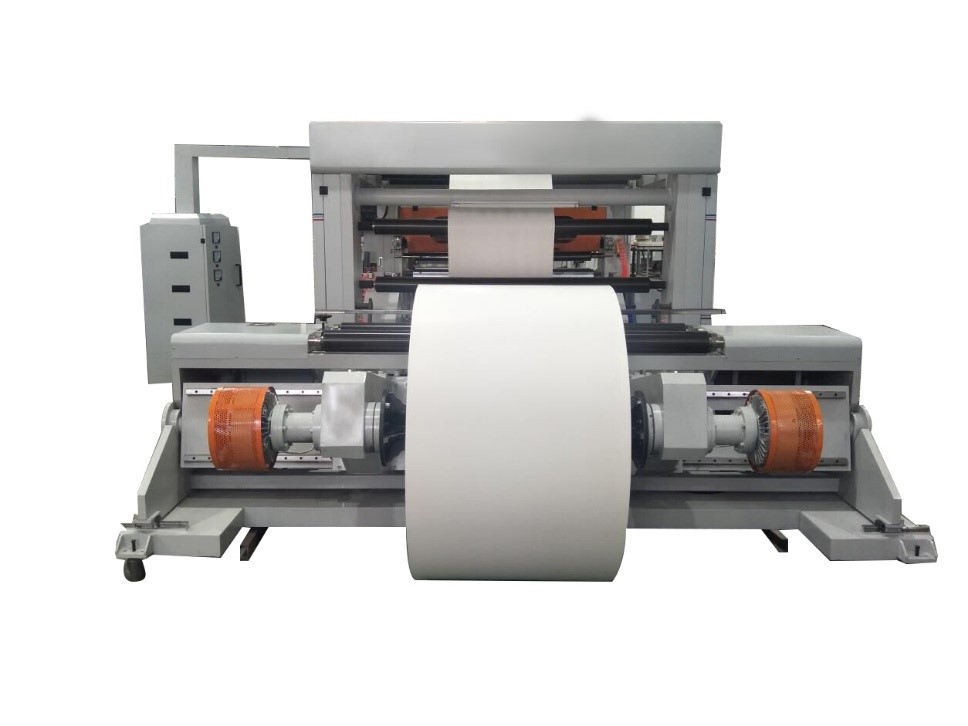

A. Hydraulic shaftless loading system
1) Maximum loading diameter:1600mm ( 2000mm custom made)
2) Suitable for 3” , 6”, 12 inch paper core etc.
3) Automatic loading paper roll up and down

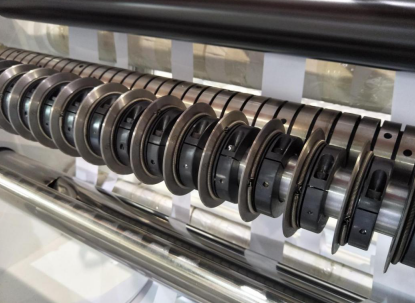

B. Knife unit:
Can be easily moved by adjusting screws, Minimum slitting width :30mm. Air knife slitting optional.

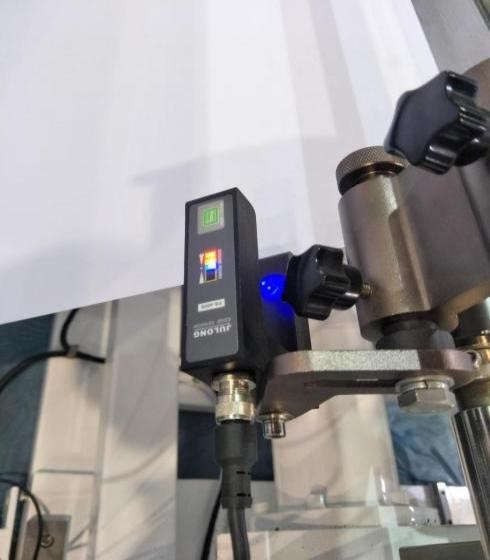

C. Web guide:
Automatically track the paper edge line for perfect slitting edge side.

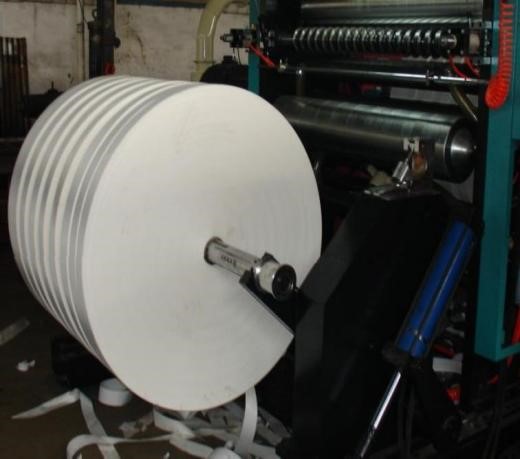

D: Rewinding unit:
1) With 2 pieces of 3 inches rewinding air shafts. Other size shaft optional.
2) With automatic unloading paper roll system by hydraulic.
3) Unwinding roller diameter can reach 1600mm.
E: Control system:
With Siemens PLC control, touch screen and servo motor drive.
Main specifications:
Model |
KSFQ-1600 |
KSFQ-3000 |
Max width of unwinding |
1600mm |
3000mm |
Max diameter of unwinding |
Φ1600mm |
Φ1600mm |
Min width of slitting |
50mm |
50mm |
Max diameter of rewinding |
Φ1500mm |
Φ1500mm |
Max speed |
350m/min |
350m/min |
Total power |
50KW |
68KW |
Power supply |
380V 50HZ |
380V 50HZ |
Weight |
15000kg |
18000kg |
Weight of roll |
2000kg |
4000kg |
Overall dimension(L*W*H) |
7500*3600*2200mm |
8160*5000*2400mm |
