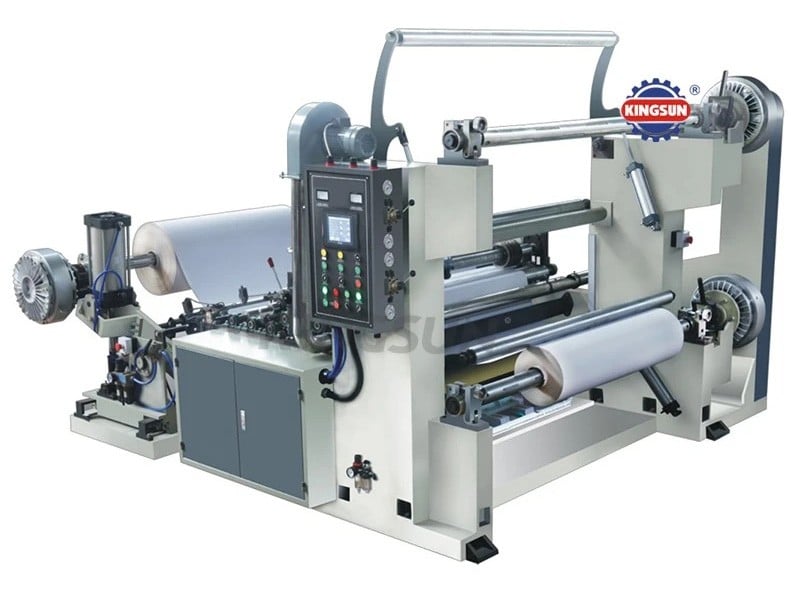

QFJ-CH series paper slitter rewinder machines
This QFJ-CH series paper slitter rewinder machines can slit and rewind materials thickness range from 50 grams to 800 grams, such as various paper, polypropylene and polyethylene for printing and packaging, composite material, mono-layer aluminum foil, and so on.It adopts double frequency inverter system and PLC to control the slitter, It has the features of photo-electricity EPC system (hydraulic EPC system is available for choose) automatic paper loading system, high precise slitting and high working speed etc.
Technical specifications:
|
Main machine motor power |
3-11kw |
|
Torque Motor |
3-15kw |
|
Max.unwinding width |
800,1100,1300,1500,1800,2000,2500MM |
|
Max speed |
20-260m/min |
|
Max unwind diameter |
1500mm |
|
Max. rewind diameter |
1500mm |
|
Machine weight |
35000-12800(kg) |
|
Overall dimensions |
3500 X 2200-3800 X 1900(mm) |
Note: This series paper slitter rewinder can special made if you provide us the relative technical specification: Max.unwinding width, paper thickness, Min. slitting width, Max.rewinding diameter,speed required, paper core ID etc.
