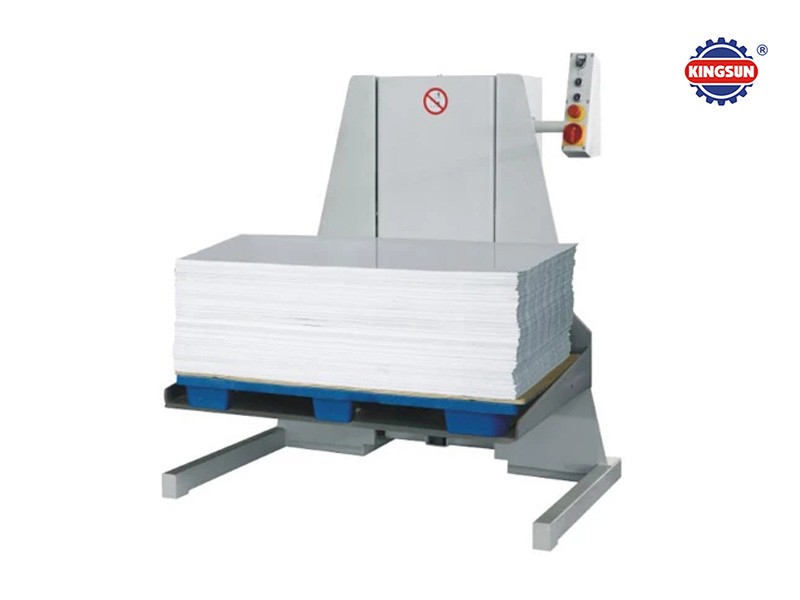

LT Series Paper Lifters

Kingsun brand lifter is an assistant equipment of the paper cutter, it can equip with the paper cutter individually, or equip with the paper cutter together with other cutting equipment, so that to compose the produce line which suitable for all kinds of cutting technology process.

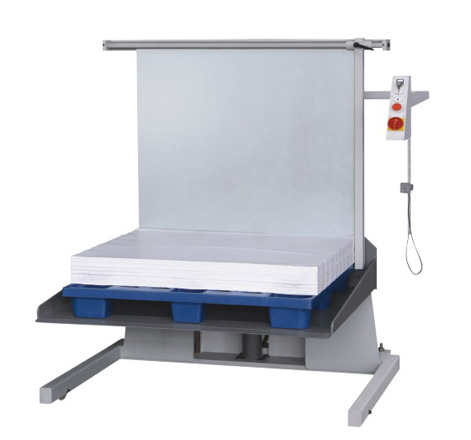

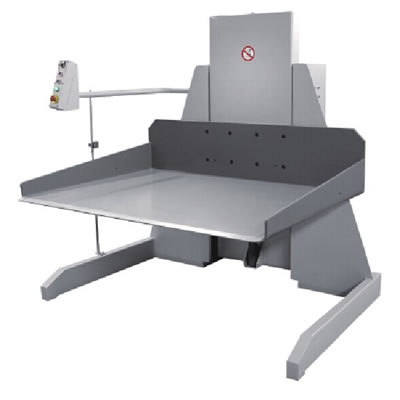

LT1000-4/1500-6/1800-8 Lifter Series

Kingsun brand lifter is an assistant equipment of the paper cutter, it can equip with the paper cutter individually, or equip with the paper cutter together with other cutting equipment, so that to compose the produce line which suitable for all kinds of cutting technology process. Kingsun brand lifer adopts hydraulic system driving process, controlled by IR photo-electric switch, to make sure the paper material keep in high position automatically that choose in advance, so that easily to load paper and offload paper, to avoid the unwieldy operation of carrying the paper materials.

Improve the working efficiency, and exploit potential of the program-control paper cutter.

Main technical specifications:

Model

LT1000-4

LT1500-6

LT1800-8

Max.Pallet size (cm/in)

90x125/35.4"x49.2"

106x150 41.7"x59.1"

123x165 48.4"x65"

Max.Paper size (cm/in)

88x122/34.6"x48"

105x145/41.3"x57.1"

121x162/47.6"x63.8"

Max.Lifter height (cm/in)

82/32.3"

82/32.3"

82/32.3

Max.Loading (kg)

1000

1500

1800

Power (kw)

2.2

2.2

2.2

Net weight (kg)

1000

1200

1500

Paper cutter adapter specification

130/115/137

155/166/176

166/176/186

Overall dimension (cm/in)

170x155x185 67"x61"x72.8"

200x170x185

78.7"x67"x72.8"

220x190x185

86.6"x74.8"x72.8"

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
