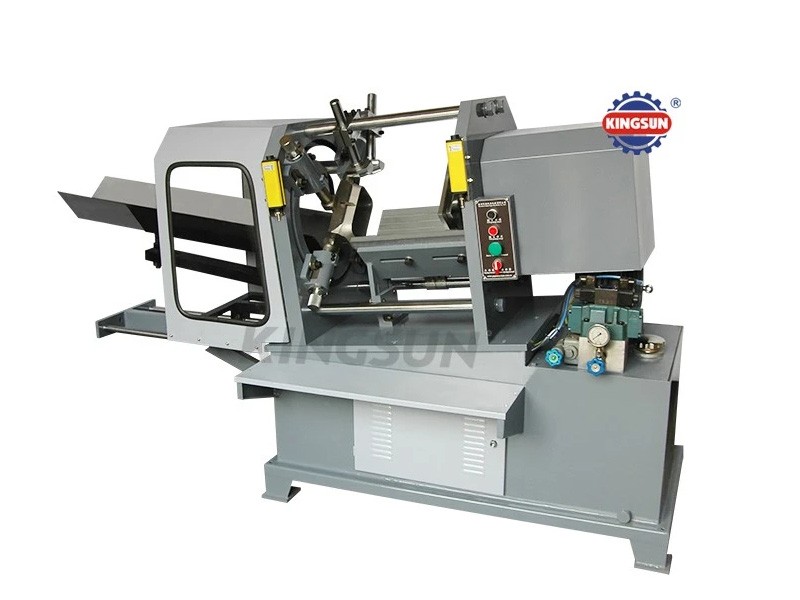

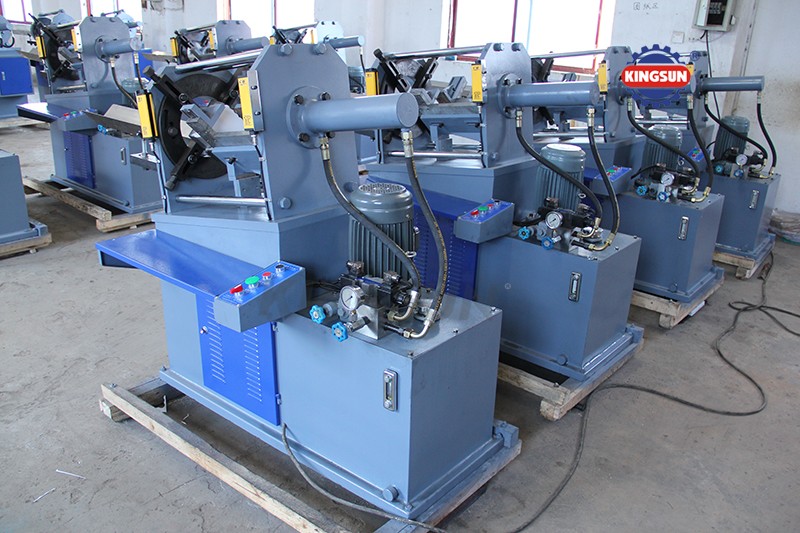

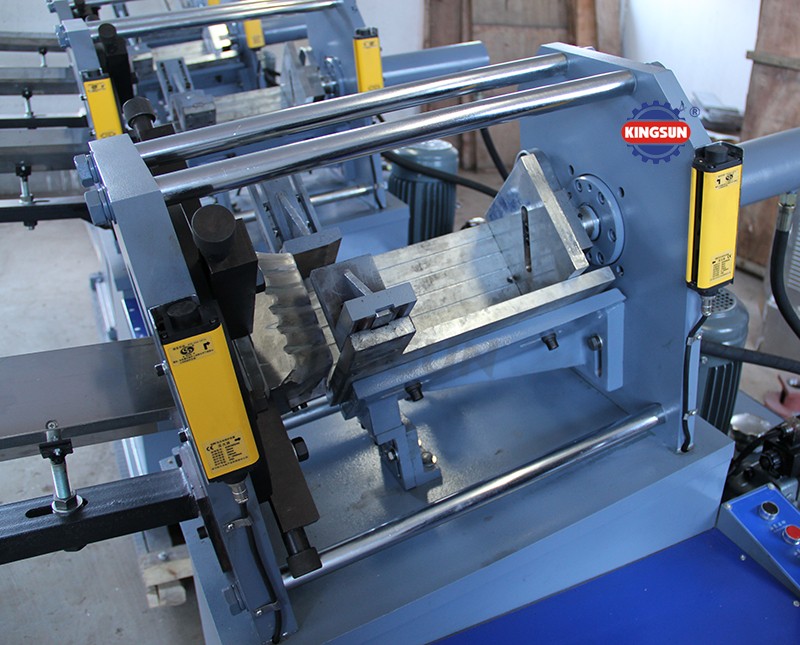

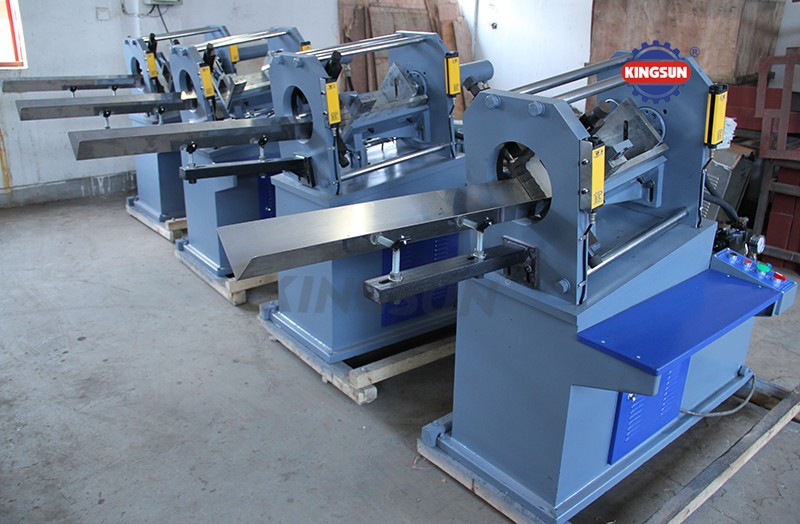

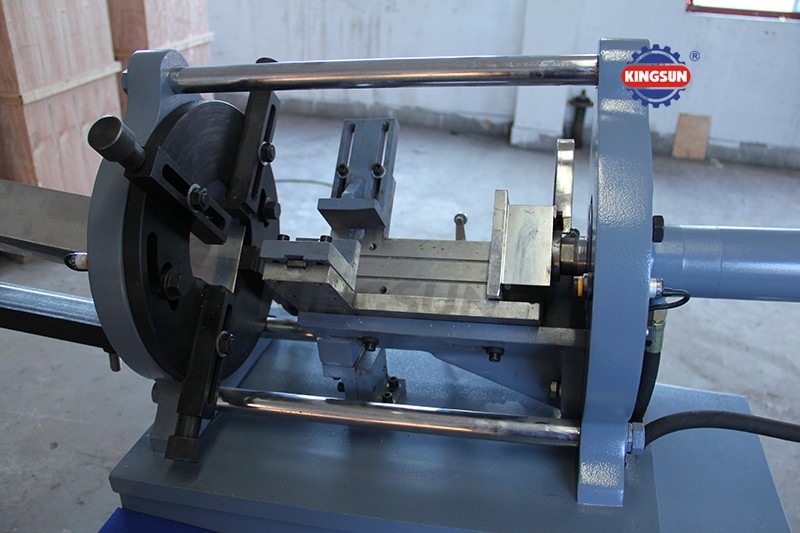

Label Punching Machine

LPM Series label punching machine is mainly suitable for the production of labels ,playing cards , aluminum plastic, New year card, note book, envelopes of any design or size . This machine adopts hydraulic pressure system. The working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch.
Product Details
Main Specification
Online Inquiry
Video
Related Products

Product Details

LPM Series hydraulic label punching machine or called label puncher ,is mainly suitable for the production of labels ,playing cards , aluminum plastic, New year card, note book, envelopes of any design or size . This machine adopts hydraulic pressure system. The working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch. The working process is completely stability. The die cutting products surface is smooth, and the cut size is unified and regular with high precision.

Main Specification



Model

LPM-150

LPM-220

LPM-280

LPM-400

LPM-500

Maximum cutting size

100*100mm

150*150mm

190*190mm

270*270mm

340*340mm

Minimum cutting size

55*40mm

55*40mm

90*70mm

120*120mm

150*150mm

Stack height

200mm

200mm

200mm

200mm

200mm

Cutting pressure

16KN

30KN

40KN

50KN

50KN

Working speed

12000sheets/Min

12000sheets/Min

12000sheets/Min

12000sheets/Min

12000sheets/Min

Power

1.5kw

2.2kw

3kw

4kw

4kw

Net weight

300kg

360kg

560kg

900kg

1140kg

Package size

1200*850*1400mm

1450*850*1500mm

2300*850*1600mm

2500*1040*1660mm

2700*1140*1860mm
