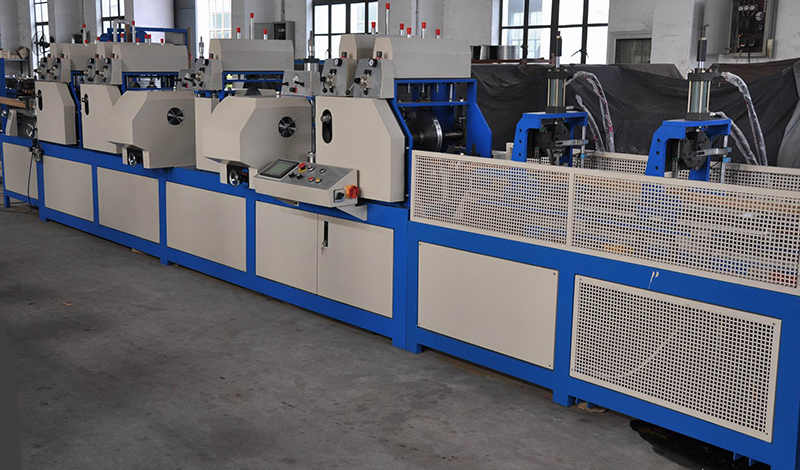

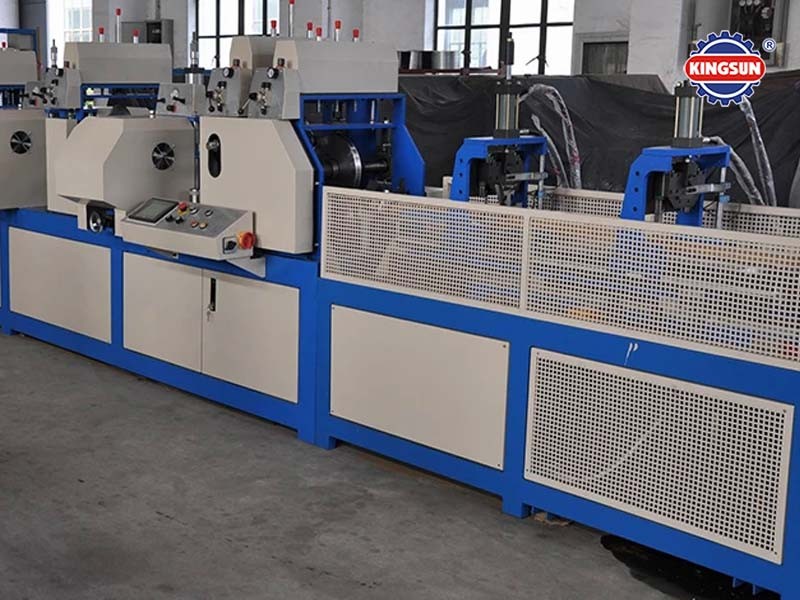

KZJ-150DPU paper edge protector making machines

The production line can produce L shape paper edge protector, it also can produce flatbed protector and U-shaped protector, without changing mold.

KZJ-150DPU paper edge protector making machines

Features:

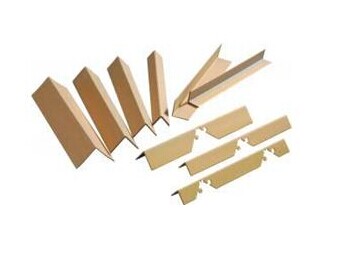

1.The production line can produce L shape paper edge protector, it also can produce flatbed protector and U-shaped protector, without changing mold.
2.The change of the production of different product,just through change the group forming wheel and install the veneer, and transform the cutter location can be realized simply by a pneumatic lift.
3.The three modes of production are used pneumatic regulator and servo computer program.
4.The machine production speed, high precision, good quality, is the ideal product of choice in this industry.

Technical specifications:

1.Paper edge angle: the side length of 25mm to 120mm (same angle side size or different)

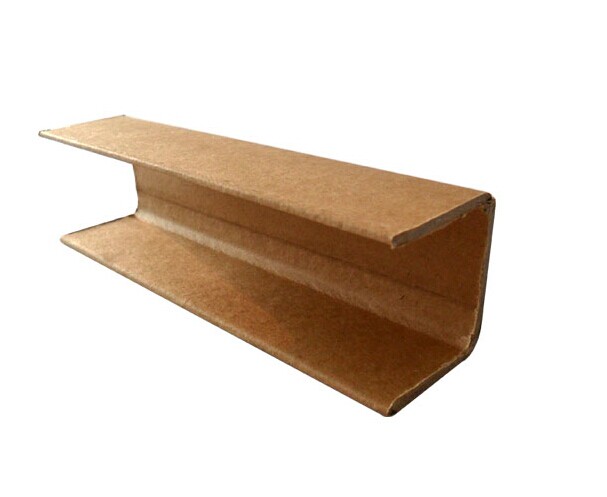

2.For U-shaped edge protector: within the width: 15-150mm; height: 100mm

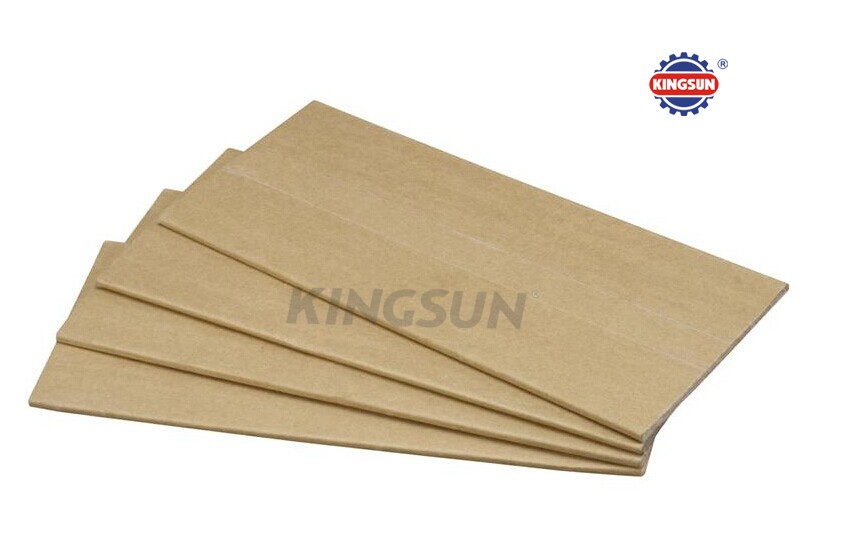

3.For flatbed protector : width :50-180mm; thickness :2.5-8mm
4.Production speed of paper angle: 0-30m/min, economic speed: 20m/min
5.Paper maximum layers: 13 layers
6.Cutting Precision: 1000 ± 1mm
7.Paper weight: 200 to 250gsm of tissue paper (kraft paper), paper core 420 to 600gsm (sand tube of paper)
8.Distribution amount of the production line: 12.25KW
9.Production lines dimensions (L x W x H): 22600 x 1400 x 1925 (mm)
10.production lines total weight: 5800kg

All special size can be tailer made according to your production,welcome to contact us.

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
