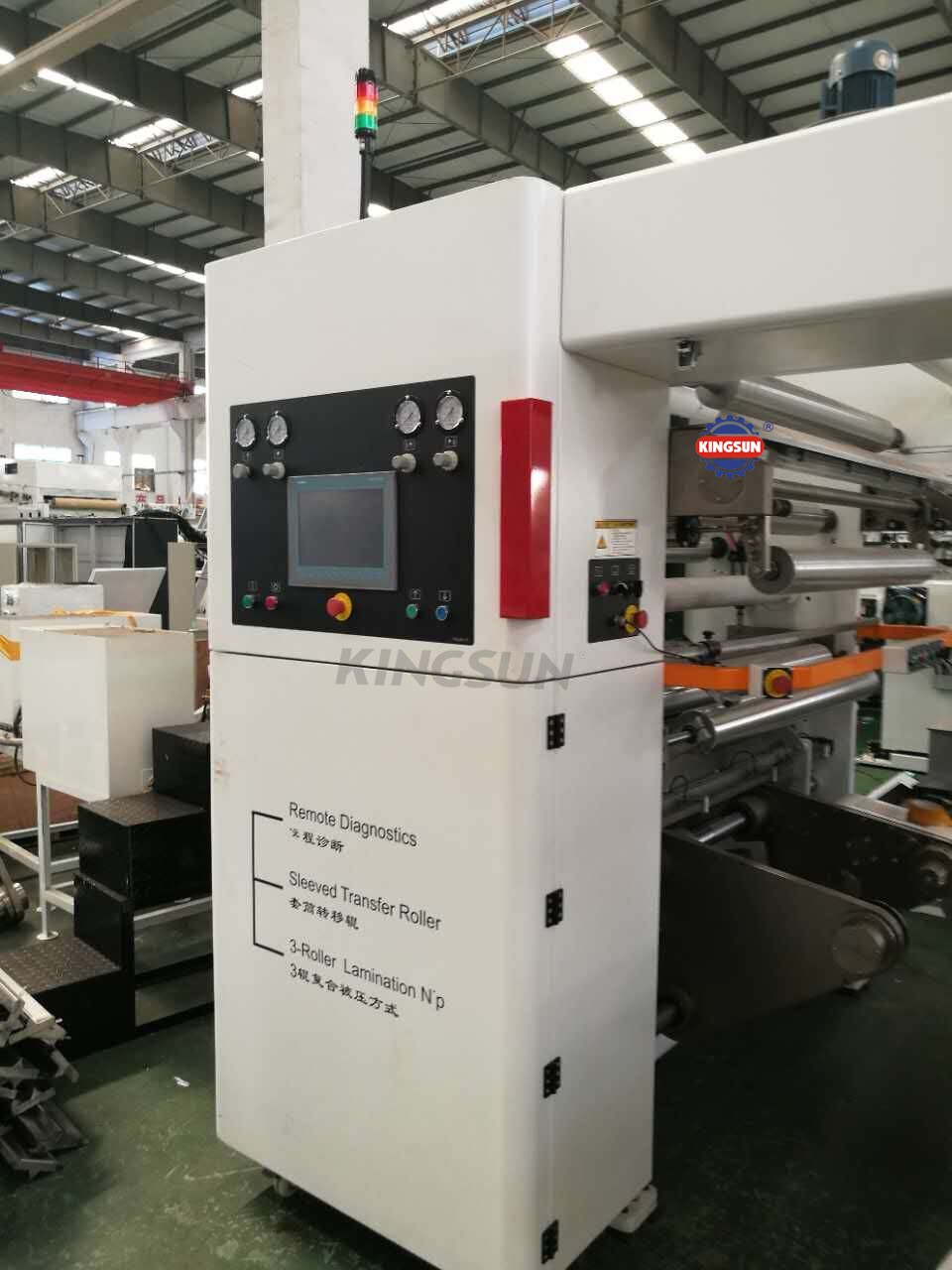

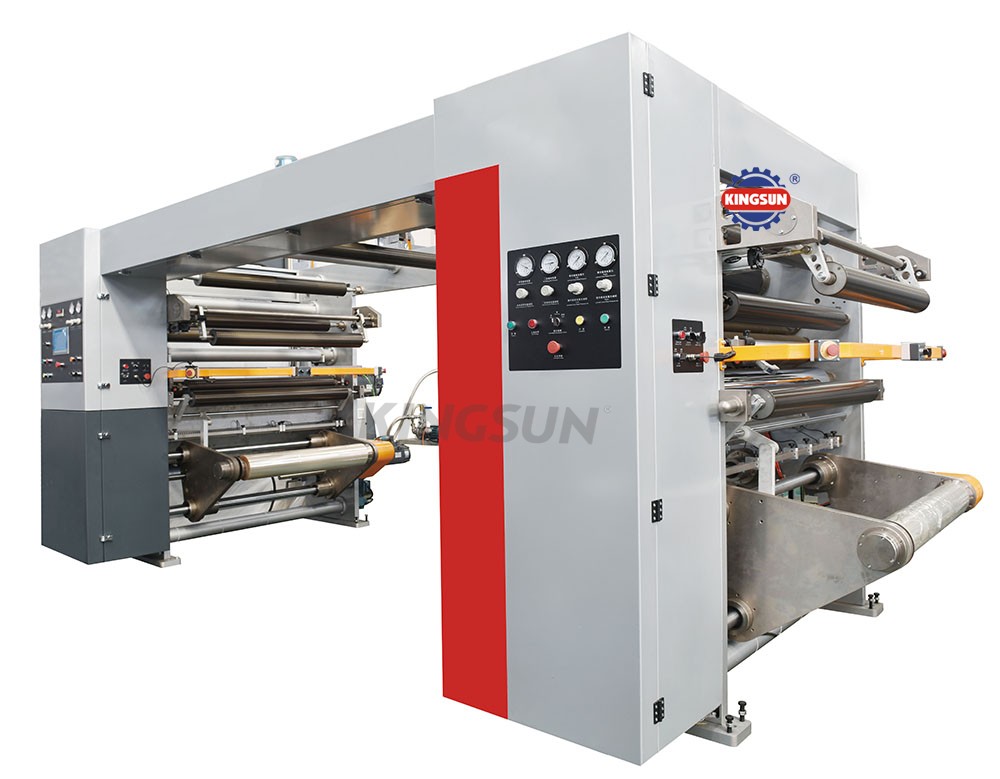

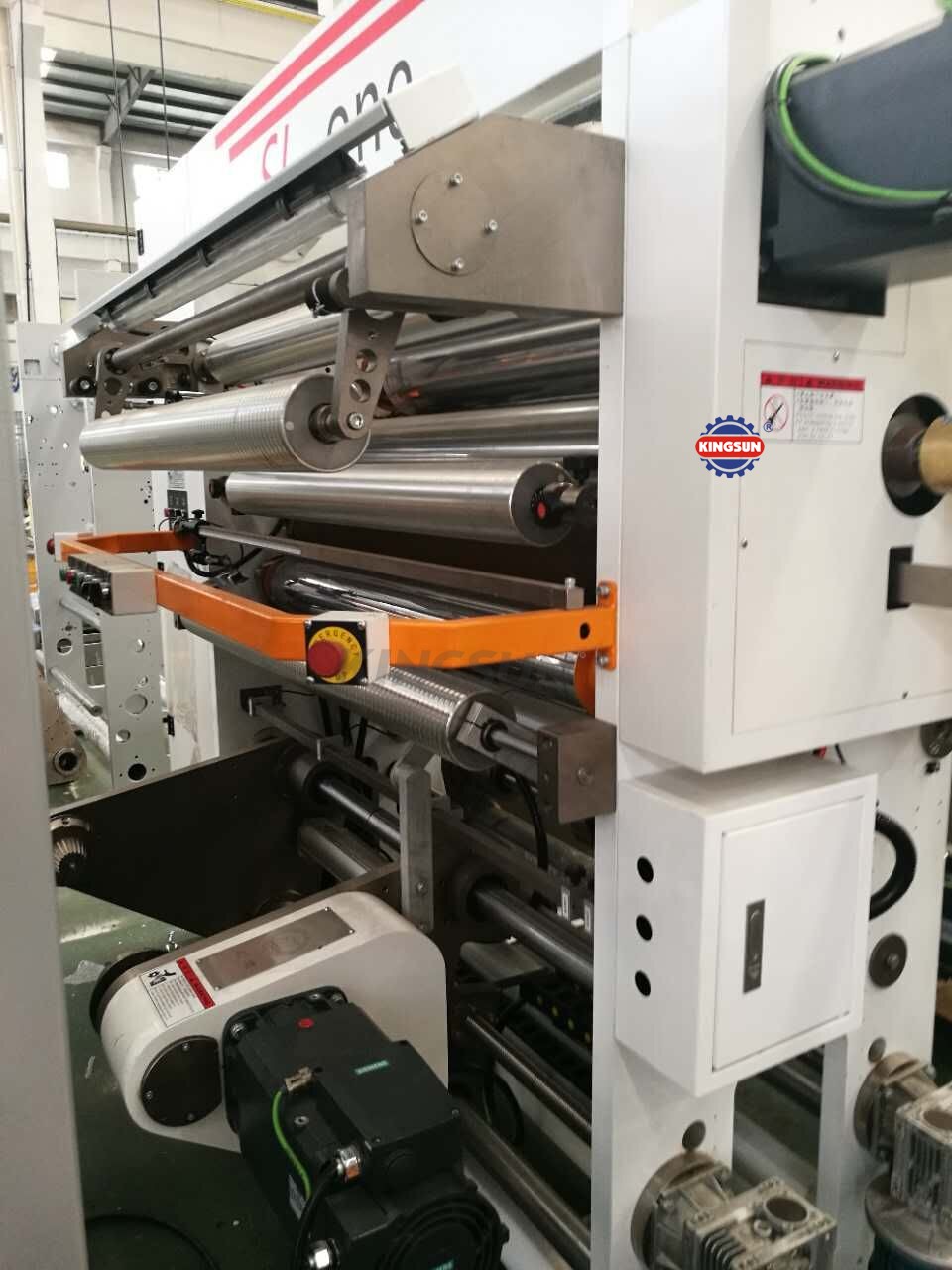

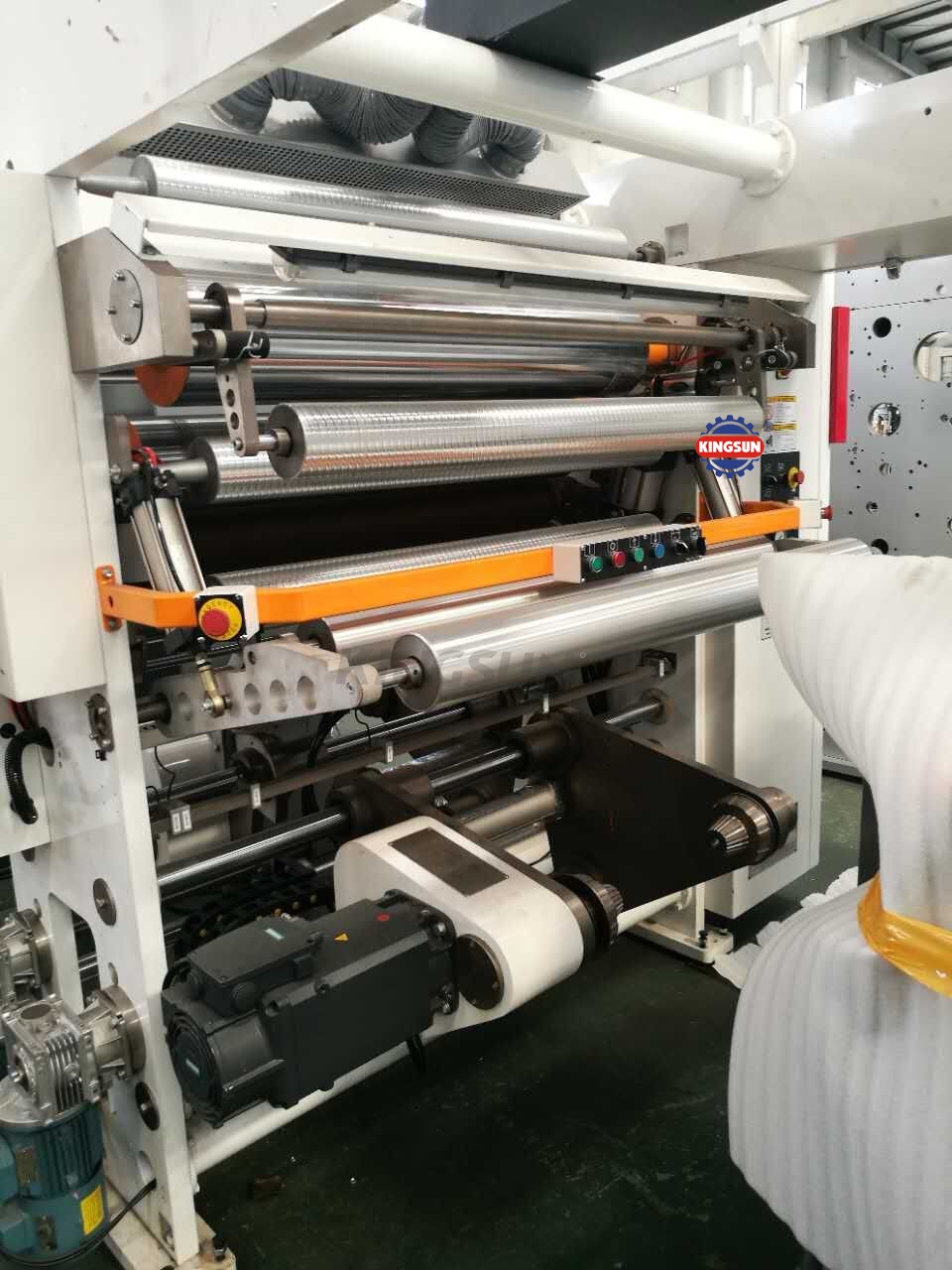

KWF-1250 Solventless Laminating Machine

This model solventless laminating machine or solvent less laminator is one of most advanced type laminating machine for flexible packaging converting, it is widely uses for environmental protection production of packages

KWF-1250 Solventless Laminating Machine

This model solventless laminating machine or solvent less laminator is one of most advanced type laminating machine for flexible packaging converting, it is widely uses for environmental protection production of packages, this equipment adopts world latest technology, and uses Japan and Europe main control parts, so make this machine most reliable and precision machine. It is one kind good machine for replace the Europe brand solvent-less laminator.

Technical data:

1. The maximum width of the paper: 1250mm

2. Maximum coating width: 1200mm

3. Minimum paper width: 750mm

4. Maximum unwinding diameter: 800mm

5. Maximum rewinding diameter of: 800mm

6. Core diameter

  - Unwinding 3 "/ 6"

  - Rewinding 3 "/ 6"

7. Maximum web tension

   - Unloading: 55kg

   - Rewinding: 55kg

8. Minimum web tension

   - Unwinding: 2.5kg

   - Rewinding: 6kg

9. Maximum mechanical speed:350 m / min

10. Painting

 - Equipment as per customer requirements

 - Main control cabinet as per customer requirements

 - Panel as per customer requirements

11. The direction of the machine: from left to right

12. Voltage 3 x 380 V 50 Hz or special made

13. Operating environment conditions in accordance with IEC204-1 P4.4.1

   - Temperature: 10 to 40 degrees Celsius

     24 hours medium temperature 35 degrees Celsius

   - Humidity 30-95%, no condensation

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
