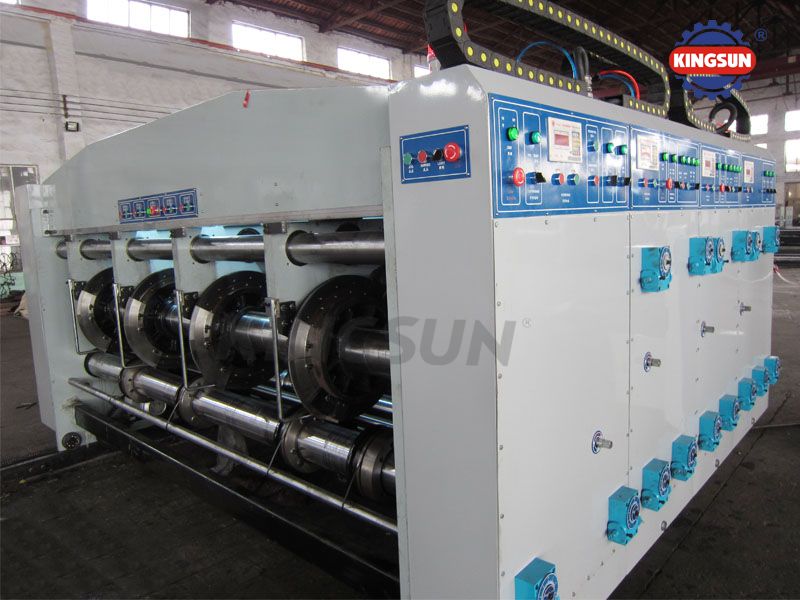

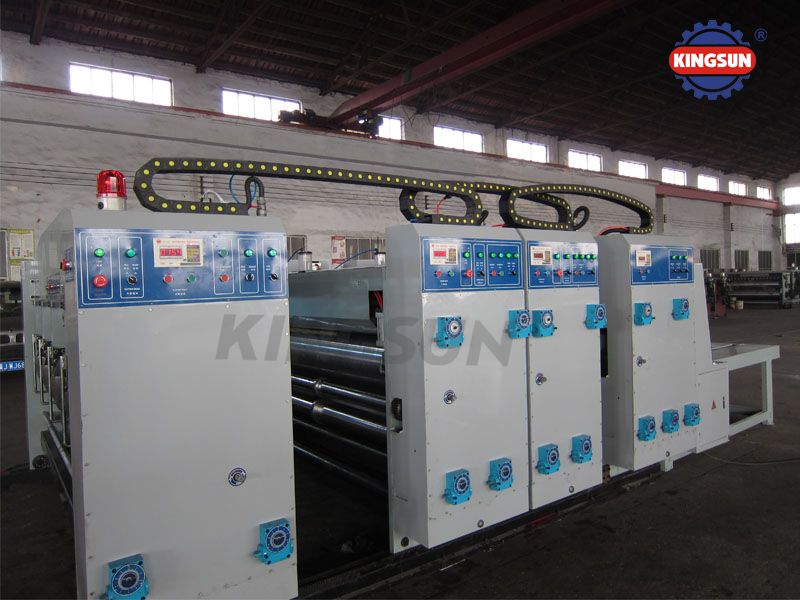

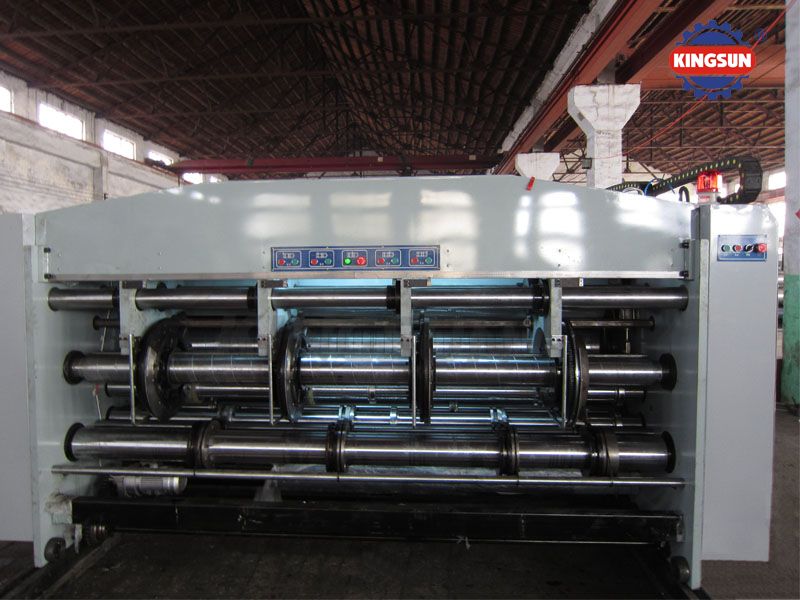

KSYK series Semi-automatic Flexo printing slotting machines

Semi-automatic chain feeder,side baffle fixed position.

KSYK series Semi-automatic Flexo printing slotting machines

1.Semi-automatic chain feeder,side baffle fixed position.

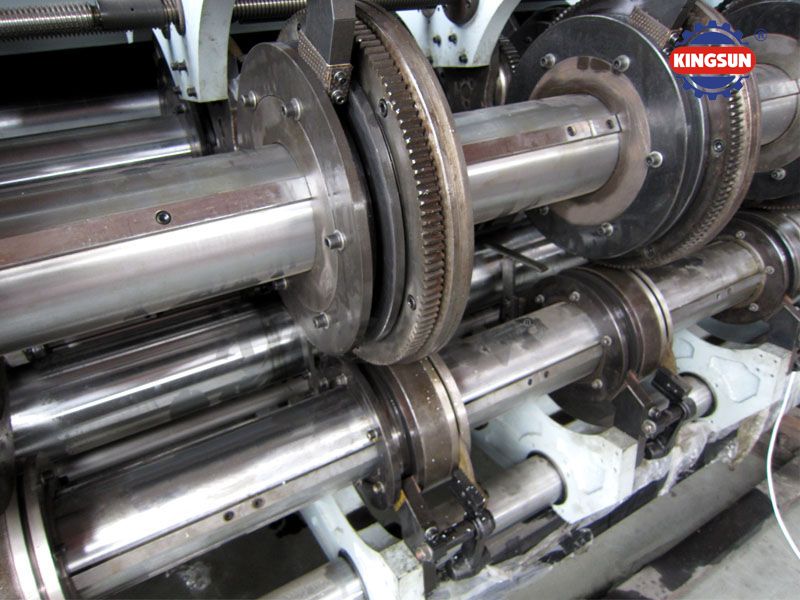

2.Transmission gears are all after heat treating grinding,spray lubrication.

3.Quick speed phase 360 degrees adjustment.

4.pneumatic lifting plate,pneumatic membrane pump auto cycle ink supplying.

5.Printing slotting units use pneumatic locking, electric clutch separating pneumatic braking.

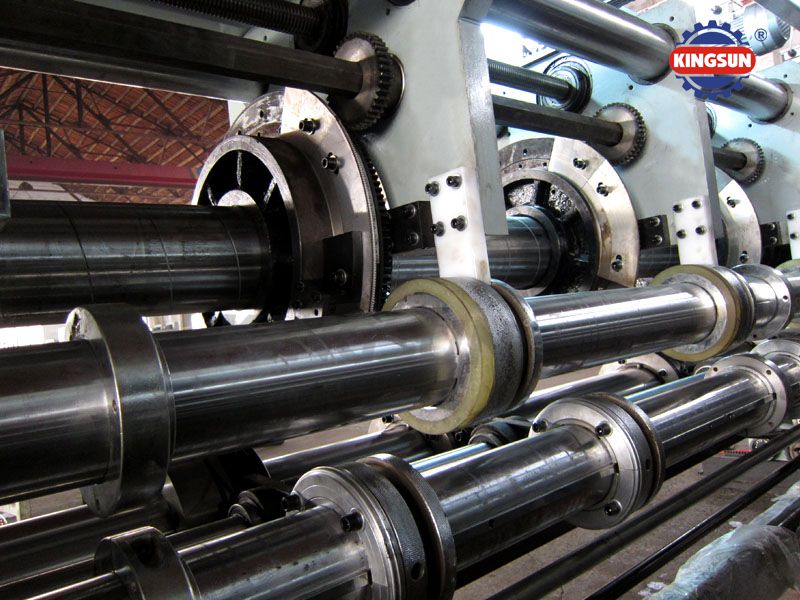

6.Slotting unit is synchronous adjusting carton box height, synchronous adjusting creasing wheel.

7.Up creasing wheel packed with rubber,will not damage cardboards

Main Specifications:

Parameter name

Unit

Size

KSYK1570*1900

KSYK1570*2100

KSYK1570*2300

KSYK1570*2600

Economic speed

pieces/min

50

Max.feeding size

mm

1500*2000

1500*2200

1500*2400

1500*2700

Min.feeding size

mm

400*700

Max.printing size

mm

1500*1900

1500*2100

1500*2300

1500*2600

Color accuracy

mm

double-color*0.5  three-color±0.6  four-color±0.75

Min.slotting distance

mm

290*60*290*60

Max.slotting depth

mm

350

Fitting die cutting cardboard thickness

3-7ply(slotting fitting cardboard thickness 3,5,7 Ply)

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
