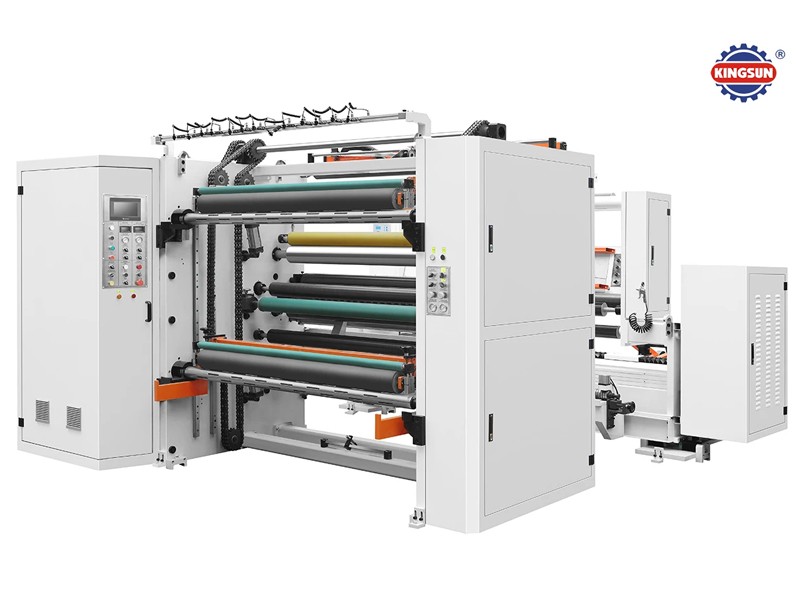

KSFQ-1600A Model Jumbo Paper Roll Slitter Rewinder

KSFQ-1600A model high speed jumbo paper roll slitter rewinder is kind of top level slitting rewinding machine fit for large diameter roll self-adhesive paper, kraft paper, plastic film, or other laminates, with novel design and world famous brand quality parts, this slitter rewinders widely apply for all kind of roll paper or plastic film converting, easy to operate and maintenance,with Europe quality and affordable prices, so this is one of ideal slitter for printing house, paper mill or film packaging company for high productivity converting.

KSFQ-1600A Model High Speed Jumbo Paper Roll Slitter Rewinder Machine.

KSFQ-1600A large diameter roll paper slitting machines are high grade paper slitter machines, suitable for slitting and rewinding various kind of self-adhesive paper, kraft paper, plastic film, metallized film, and others laminates into small required width rolls etc.

Main Features:

1. Imported PLC and touch screen control, able to set working parameters and display working status in screen, so can easy to monitor the production process.

2. Machine body with heavy duty and works stable and reliable at its highest speed.

3.Main motors driven by the frequency motor, and controlled by the frequency inverter, fast and stable for speed up and speed down operations.

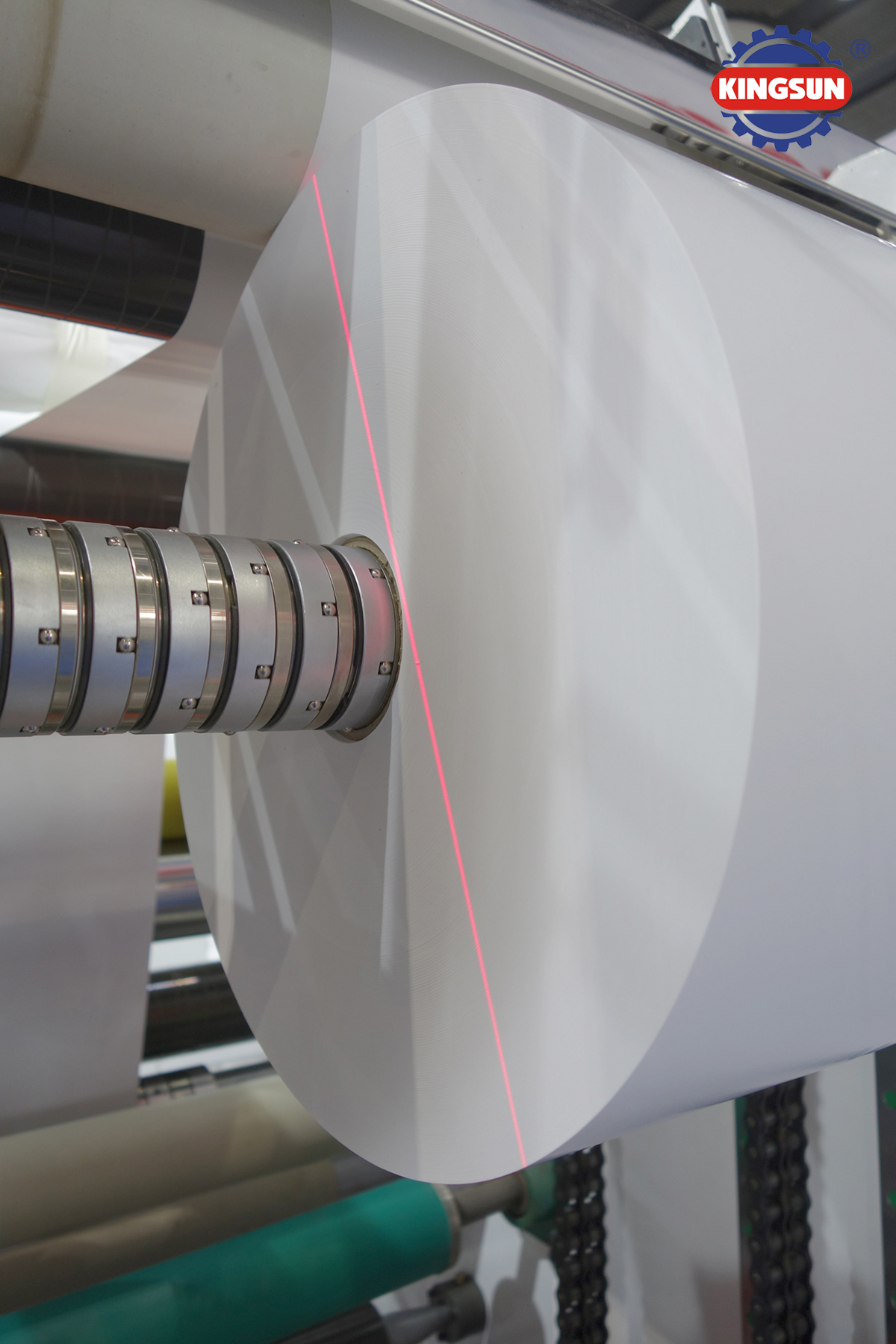

4.Rewind shaft adopts differential air shafts, so for uneven materials can achieve better rewinding result, driven by the frequency control motor, with automatic tension controlling.

5.Unwinding is controlled by the frequency inverter and driven by the variable frequency motor, automatic tension control.

6.Unwinding side adopts shaft-less loading and unloading the raw materials, hydraulic lifting, easy for efficient jumbo roll handling, with precision web guide system.

7. Length counting, diameter calculating, automatic speed down and stop while reach to the setting length.

8.Integrated with mechanical, electricity and pneumatic, with complete safety protections.

9. Main components use world famous brand, so can guarantee the top-level high-quality slitting equipment for buyers.

10. Upper rewinding shaft with chain for unload the heavy materials for easy operation.

11. Machine can install knife setting auxiliary system for fast setting circle blades.

12. This model slitter rewinder is most suitable for high quality required self-adhesive label slitting, after cut the rolls goes to flexo printing press directly.


Technical specifications:

Model

KSFQ-1300A

KSFQ-1600A

KSFQ-1700A

Max width of material

1300mm

1600mm

1700mm

Max. unwinding diameter

1200mm

1200mm

1200mm

Max. machine speed

400m/min

400m/min

400m/min

Max. rewinding diameter

800mm

800mm

800mm

Min slitting width

50mm

50mm

50mm

Weight of machine

About 4500kg

About 4800kg

About 5100kg

Total power

33kw

33kw

46kw

Overall dimensions

4100 x 4700 x 2250mm

4100 x 5000 x 2250mm

4100 x 5300 x 2250mm

Note: The specifications of this paper slitter machine can be tailor made as per your production need. We have various options, so please feel free to tell us your requirement for slitting rewinding machines. Especially this KSFQ-A series slitting machines are very good for slitting label stock paper, fast speed, high precision and reliable.
