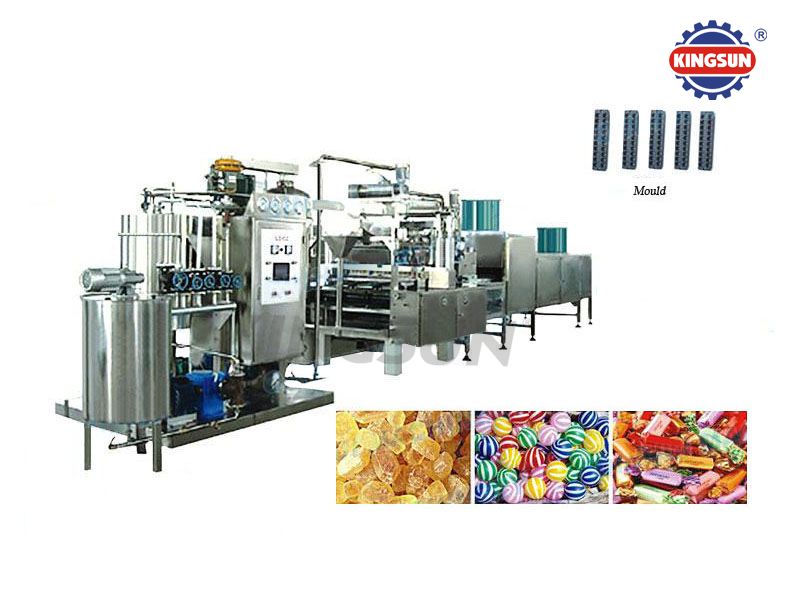

KSC-150 Automatic Hard Candy Depositing Line

KSC-150 Automatic Hard Candy Depositing Line

KSC-150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition.

KSC-150/300/450/600  Automatic Hard Candy Depositing Line (PLC controlled)

KSC-150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

The strongpoint of the line is as following:

1.PLC /computer process control available;

2.An LED touch panel for easy operating;

3.The production capacity from 150 kgs/h to 450kgs/h;

4.Optional (mass) flowing controlled by Frequency inverters ;

5.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, flavors and acids;

6.One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing","two /three–color double layers depositing", "central filling", "clear" hard candies and etc. can be made.

7.Moulds can be made according to the candies samples provided by the customer.

Parameters:

MODEL

KSC-150

KSC-300

KSC-450

KSC-600

Capacity(kg/hr)

150

300

450

600

Max candy weight

6g

6g

6g

6g

Depositing speed

55-65n/min

55

65n/min

55

Compressed air requirement

0.2m³/min,
0.4-0.6Mpa

0.2m³/min,
0.4-0.6Mpa

0.2m³/min,
0.4-0.6Mpa

0.2m³/min,
0.4-0.6Mpa

Working condition

Temp:20-25℃
Humidity:55%

Temp:20-25℃
Humidity:55%

Temp:20-25℃
Humidity:55%

Temp:20-25℃
Humidity:55%

Total Power

18kw/380V

27kw/380V

34kw/380V

38kw/380V

Total Length

15m

17m

17m

20m

Total Weight

3500kg

4000kg

4500kg

5000kg

Please write more details of your specific requirement, so our sales team can provide you right machine you need.
