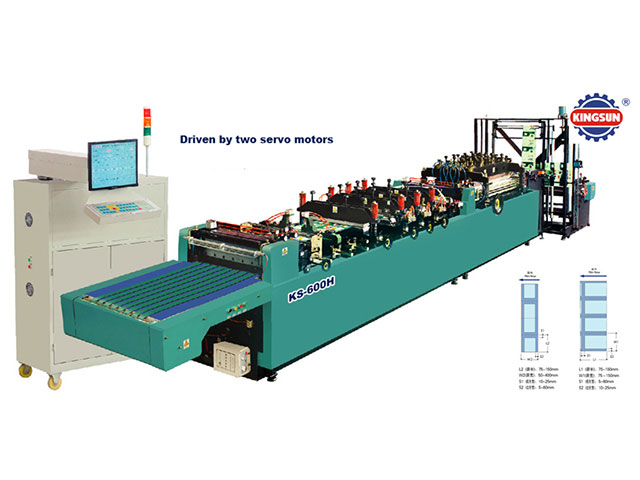

KS-600H Trilateral sealing bag automatic bag making machine

Application range:

Material: various compound films or co-extruded films.

Roll folding: max width: 1240mm, max diameter: 600mm.

Adaptability:

Bagging speed: 160 parts/min (mechanical design speed), approx. 40m/min.

Bagging width: Max width 600mm.

Bagging length: 50-400mm, (multiple conveying device can be adopted when over-long).When the set program is above 320mm, it will automatically change into multiple conveyances.

Notes: The actual operation speed will reduce for the reason of difference of the bag type and material.

Unwinding mode :

Flat roll film: put the film air shaft horizontally, with V fold support, and pneumatically lock.

Auxiliary material: put the warp beam horizontally, with triad plate.

Control: tension is automatically controlled by dancing roller, magnetic powder brake, encoder, displacement sensor etc.

Driving mode:

Feeding traction: driven by AC servo motor.

Upper & lower sealing press: driven by AC servo motor.

Functions:

Temperature:0～300℃, contact-free automatic control, CRT displaying.

Automatic count: presetting is available.

Conveyance of finished bag: conveyance quantity is available or driven by AC servomotor.

Punching device: time can be preset, continuous or interval punching is available.

Working mode: printing, non-printing

Mode of multiple conveyances: twice to six times conveyance.

Measurement for length: distance between color scales can be measured photo-electrically.

Message alert: lost of photo-electricity, lost of temperature, unwinding alarm, servo motor alarm and auto-switch off the machine.

Electricity-use configuration:

Feeding driving AC motor: 1.0 kw x 2set=2.0kw

Upper & lower driving AC motor: 3.0 kw x 1set=3.0kw

Warping traction motor: 0.55 kw x 1台=0.55kw

Side heat seal device: 4.8 kw x 5=24.0kw

Lateral heat seal device: 4.8 kw x3=14.4kw

Control system and others:3kw

Total: Approx.45kw

Gas pressure:0.6MPa (6kgf/cm2)

Cooling water: Approx.15L/min

Gross weight of equipment:Approx.4500kgs

Dimensions(L X W X H):8500x1660x1860mm

Control mode:

Adopts the industrial control equipment, domestic displayer.

Adopts multiple photoelectric control.

Notes:

We can special made the bag making machine as per customer requests.
