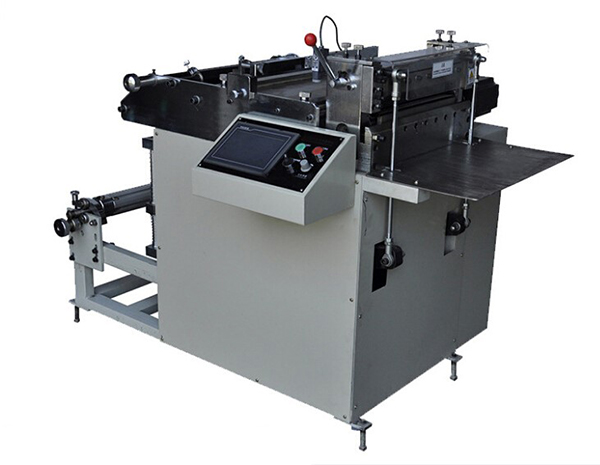

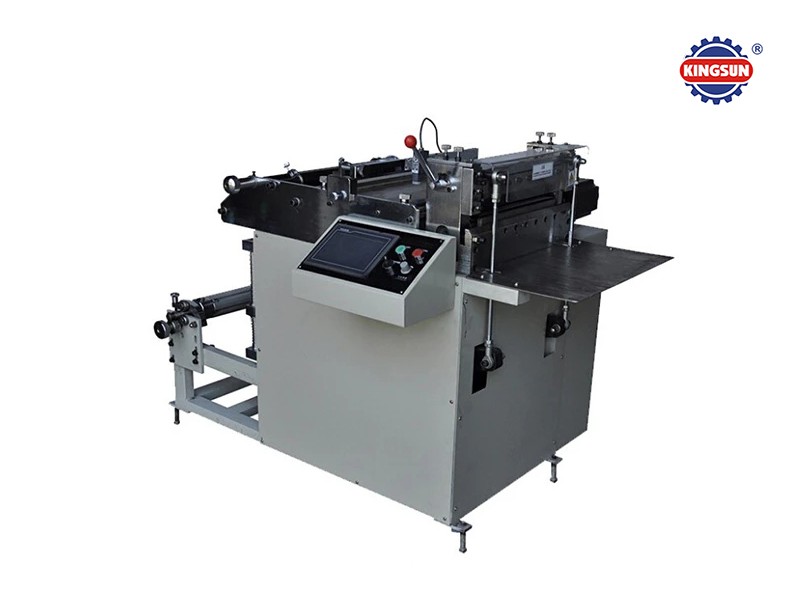

KQP-320 Model Self Adhesive Label Sheet Cutting Machine

KQP-320 Model Self Adhesive Label Sheet Cutting Machine

The sheet cutting machine uses micro-computer system, under knife fixed, the upper knife up and down movement for precise cutting, can track the printing mark or can also set the length for the sheet cutting.

It is widely used in various types of paper stickers, polyester film labels, laser anti-counterfeiting label etc. It is an auxiliary equipment for intermittent printing press, flexo printing machine, digital printing machine,

screen printing machine, rotogravure printing machine etc.

Main specifications:

Model

KQP-320

KQP-420

Max label roll width

320mm

420mm

Max roll diameter

600mm

600mm

Sheet cutting speed

20-130pieces/min

20-130 pieces/min

Cutting precision

±0.10mm

±0.10mm

Main motor power

0.75kw

0.75kw

Out dimension

1600×1100×1200(mm)

1600×1200×1200(mm)

Machine weight

About 220kg

About 280kg

Welcome to our website! Please feel free to send us your inquiry in detail, we will reply you as soon as possible.
