KQGF three in one water filling machine
This series equipment is used in the production of non-carbonated drink , such as mineral water and purified water etc. Washing, filling and capping are integrated into one machine.
- Product Details
- Products Feature
- Technical Specification
- Online Inquiry
- Video
- Related Products
Product Details

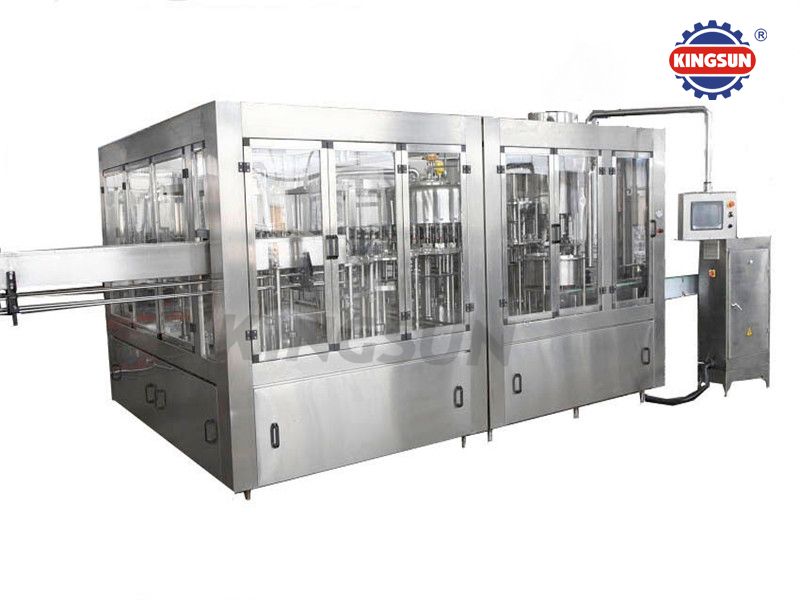

KQGF three in one water filling machine
Introduction:
This series equipment is used in the production of non-carbonated drink , such as mineral water and purified water etc. Washing, filling and capping are integrated into one machine.
Products Feature:
1.The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2.The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3.The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
4.Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do not harm to the caps.
5.Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
6.All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.
Products Feature
1.The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2.The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3.The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
4.Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do not harm to the caps.
5.Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
6.All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.
Technical Specification
|
Model |
KQ12-12-5C |
KQ18-18-6C |
KQ24-24-8C |
KQ32-32-8C |
KQ40-10-10C |
KQ60-50-15C |
|
Capacity |
4000 |
8000 |
10000-12000 |
13000-15000 |
16000-18000 |
20000 |
|
BottleneckΦ50-Φ100mm;bottle height 150-320mm;volume330-1500ml |
||||||
|
Plastic screw cap |
||||||
|
Total power |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
11.18 |
|
Total weight |
2500 |
3800 |
5200 |
6500 |
8000 |
11200 |
|
Dimension |
2350*1700* 2150 |
1830*2030* 2030 |
3220*2300* 2600 |
3450*2510* 2710 |
3800*2800* 2710 |
4510*3400* 2900 |
