KLJ-250/400 Laser Holographic Label Equidistant Embossing Machine

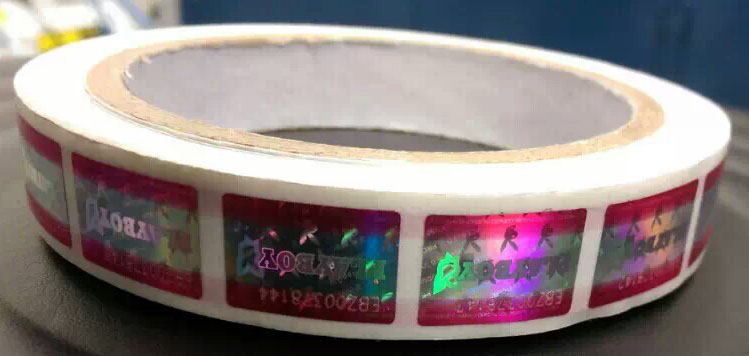

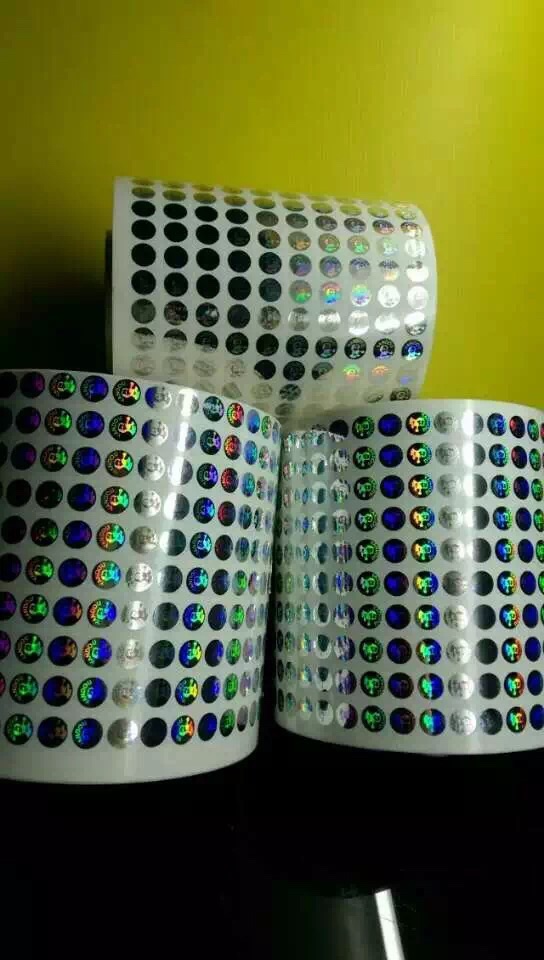

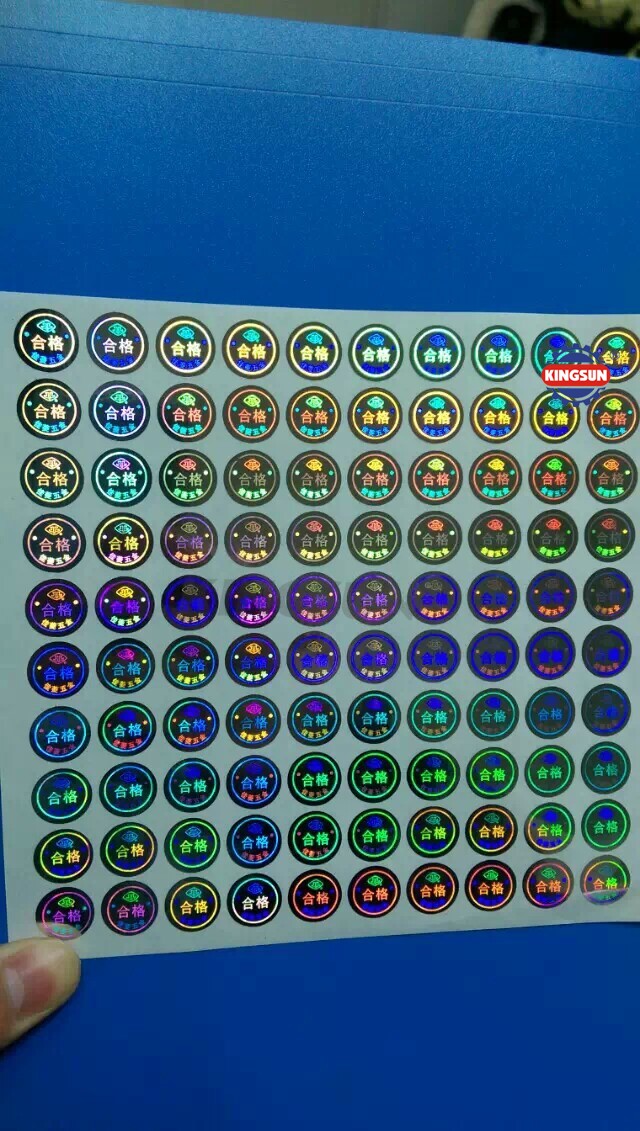

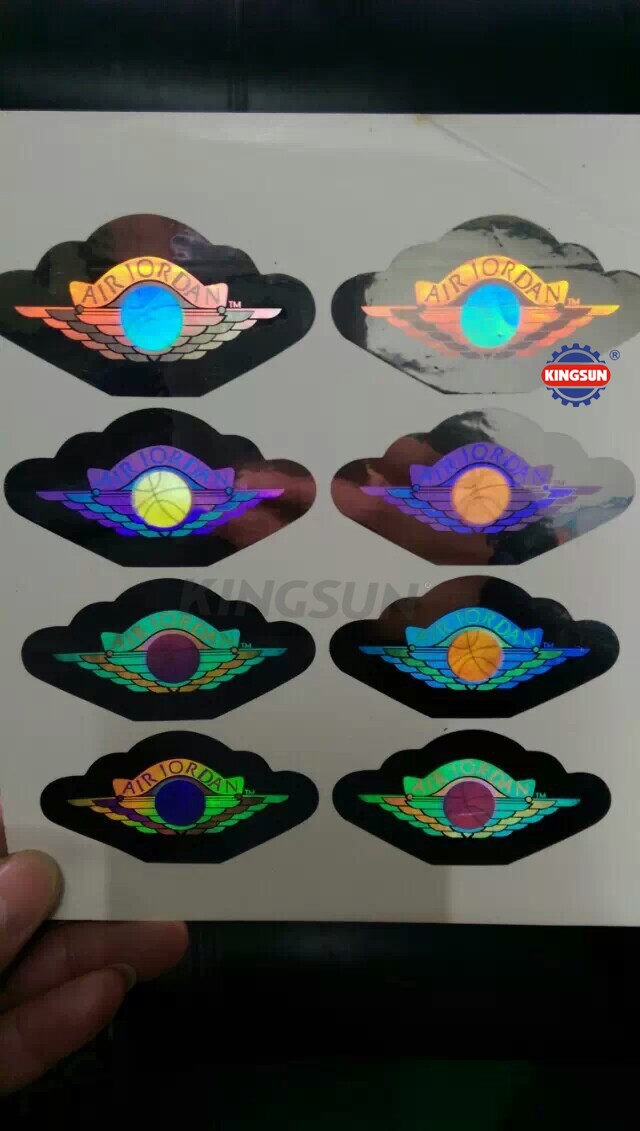

This machine is special for embossing the holographic label sticker in roll with positioning registration, positioning hollow-out and positioning stamping.

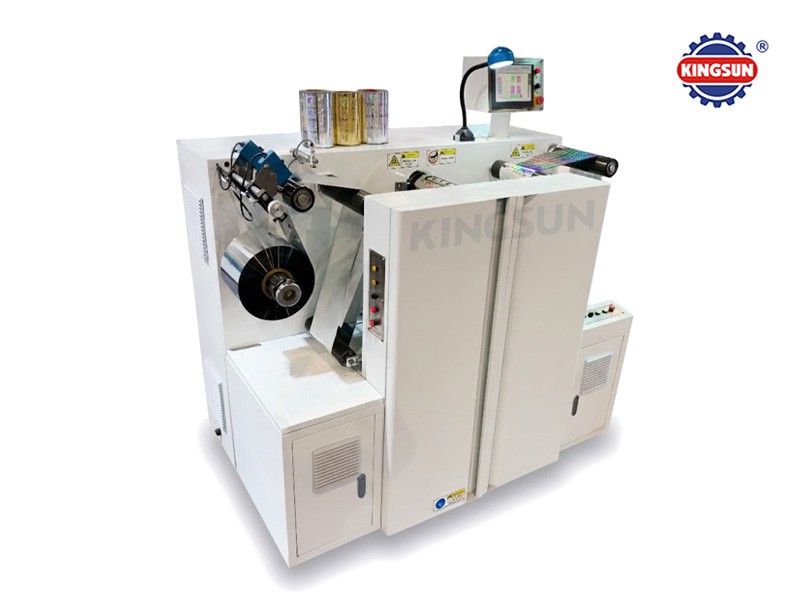

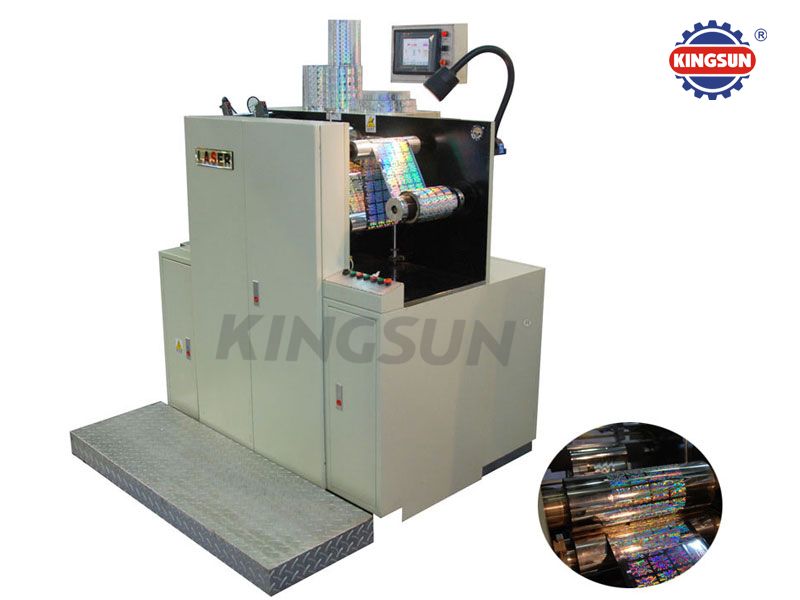

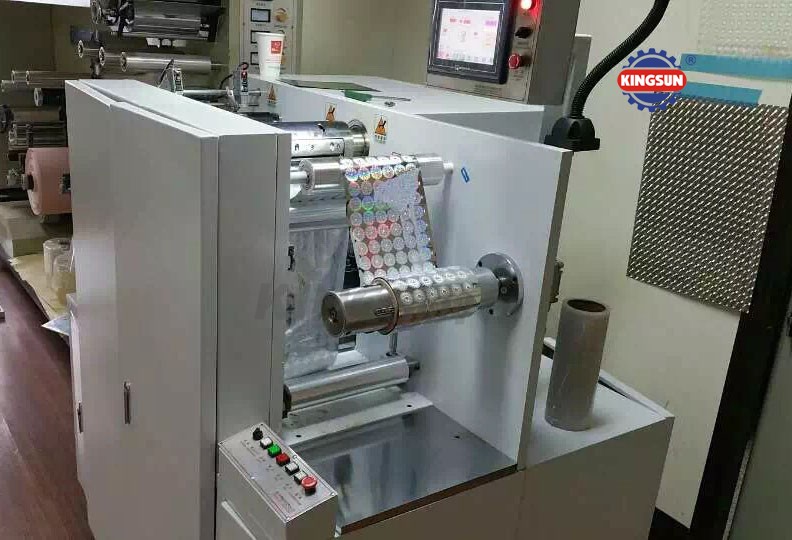

KLJ-250/400 Laser Holographic Label Sticker Equidistant Embossing Machine

Features:

1.This machine is special for embossing the holographic label sticker in roll with positioning registration, positioning hollow-out and positioning stamping.

2.Main technical features: PLC control, improved from the former semi-round plate system into equidistant embossing system, which is great solution to position registration, also makes the registration and die-cutting position highly in precision.

Main specifications:

Model

KLJ-250

KLJ-400

Working width

180mm

350mm

Speed

10/m

12/m

Unwinding diameter

250mm

250mm

Total power

4kw

6kw

Electric heater

2kw

4kw

Air pressure

3-5

3-5

Overall dimensions

120 x 80 x 160cm

130 x 120 x 160cm

Weight

500kg

780kg

We also can custom the size for you as per your request.


Please write more details of your specific requirement, so our sales team can provide you right machine you need.
